Alkitronic PC-S Rotatable Gear Series
A pneumatic gear multiplier for continuous rotary tightening from 305 to 9,795 Nm, with ATEX certification and a 360° rotatable operating unit.
More Information

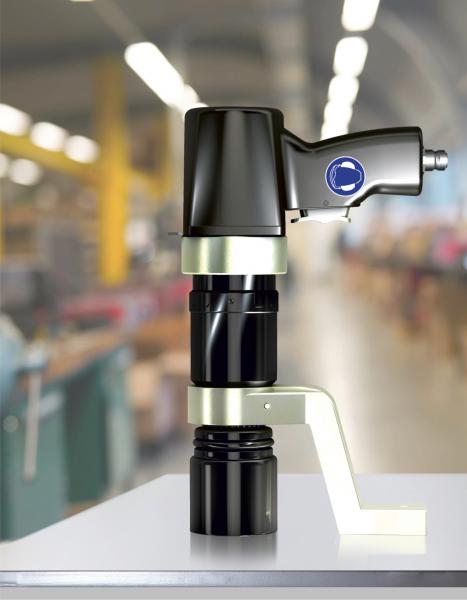

The Alkitronic PC-S Rotatable Gear is a pneumatic gear multiplier engineered for continuous rotary tightening and loosening of heavy bolted connections, covering 305 to 9,795 Nm. A 360° rotatable operating unit minimises reaction forces on the operator for more comfortable use. Ten models span this range, with ATEX certification available for safe use in hazardous and explosive environments.
Key Features
- Continuous rotation delivers higher bolting quality than impact or hydraulic nutrunners.
- 360° rotatable operating unit reduces reaction forces and physical strain on the operator.
- One-finger operation for both clockwise and anti-clockwise rotation.
- Optional locking function enables continuous operation without holding the trigger.
- Cast aluminium motor housing with a proven pneumatic drive for reliable performance.
- Non-cutting precision gearbox process minimises wear under high stress.
- ATEX certified for safe use in hazardous and explosive environments.
Typical Applications
- Oil and gas maintenance and bolting
- Heavy industrial maintenance requiring high torque output
- Hazardous area bolting where electrical tools aren’t permitted
- Demanding screwdriving and bolting applications across construction and process industries
Available Models
- Alkitronic PC-S 85
- Alkitronic PC-S 105
- Alkitronic PC-S 125
- Alkitronic PC-S 175
- Alkitronic PC-S 225
- Alkitronic PC-S 280
- Alkitronic PC-S 380
- Alkitronic PC-S 580
- Alkitronic PC-S 780
- Alkitronic PC-S 980
Alkitronic PC-S Rotatable Gear Specifications
| Spec | Detail |
|---|---|
| Torque Range | 305 – 9,795 Nm |
| Models Available | 10 (PC-S 85 through PC-S 980) |
| Operating Unit | 360° rotatable |
| Drive | Pneumatic |
| Motor Housing | Cast aluminium |
| Certification | ATEX (hazardous area) |
| Trigger | One-finger operation; optional locking function |
