Ogura Rebar Cutter Max 32mm Diameter 230V | HBC232

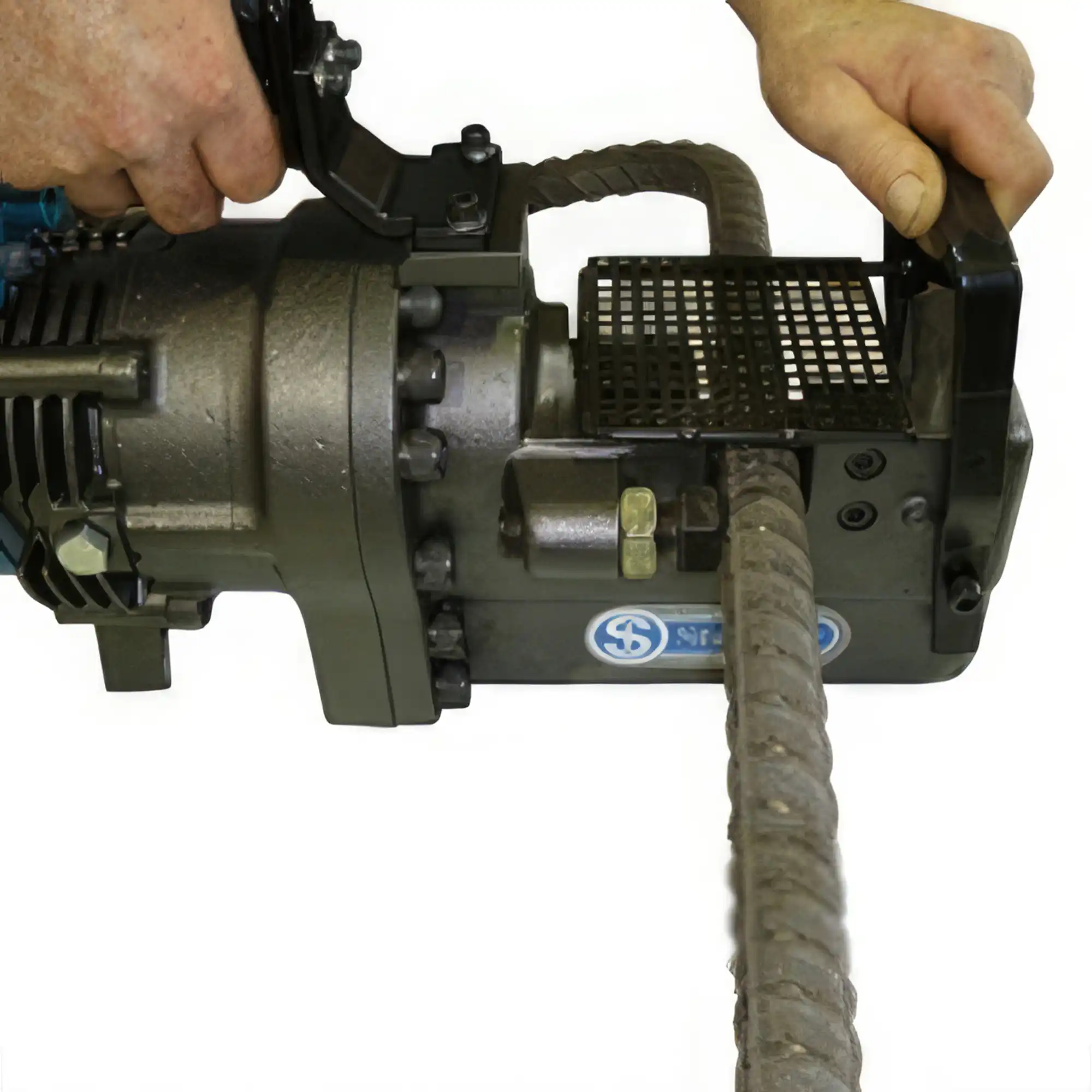

The Ogura HBC-232 Rebar Cutter is a heavy-duty electric cutter designed for fast, clean and accurate cutting of high-tensile reinforcement bar up to 32 mm in diameter.
Additional Information
More Information
The Ogura HBC-232 is a high-performance electro-hydraulic rebar cutter engineered for demanding construction, fabrication and reinforcement applications. With the ability to cut 32 mm high-tensile rebar (620 N/mm²), it delivers strong cutting power while maintaining smooth, consistent operation.
Driven by a 1430 W double-insulated motor, the HBC-232 completes a full cutting cycle in approximately 7 seconds, helping maintain productivity on busy worksites. Its compact form (543 × 168 × 289 mm) and weight of around 37.6 kg make it manageable for transport and positioning, while the ergonomic grip and carry handles support safe, controlled use.
Built with durability in mind, this cutter is suited for repetitive site work and harsh operating environments, offering reliable performance with minimal maintenance.
Key Features:
-
- Cuts high-tensile rebar up to Ø 32 mm
- Fast cutting cycle of approx. 7 seconds
- 1430 W electro-hydraulic motor for strong and stable cutting force
- Compact and robust design suitable for frequent site use
- Ergonomic handles for improved handling and control
- Designed for precision cutting with minimal spark and deformation
Specifications:
| Specification | Details |
|---|---|
| Model | Ogura HBC-232 |
| Cutting Capacity | Up to Ø 32 mm high-tensile rebar (620 N/mm²) |
| Motor Output | 1430 W (single-phase) |
| Drive System | Electro-hydraulic |
| Cutting Time | Approx. 7 seconds |
| Dimensions | 543 × 168 × 289 mm |
| Weight | Approx. 37.6 kg |
| Power Supply | 230 V (typical single-phase) |
| Body Design | Compact with ergonomic handling grips |
| Cut Profile | Clean cut with minimal spark and deformation |
| Applications | Rebar cutting for construction and fabrication work |
