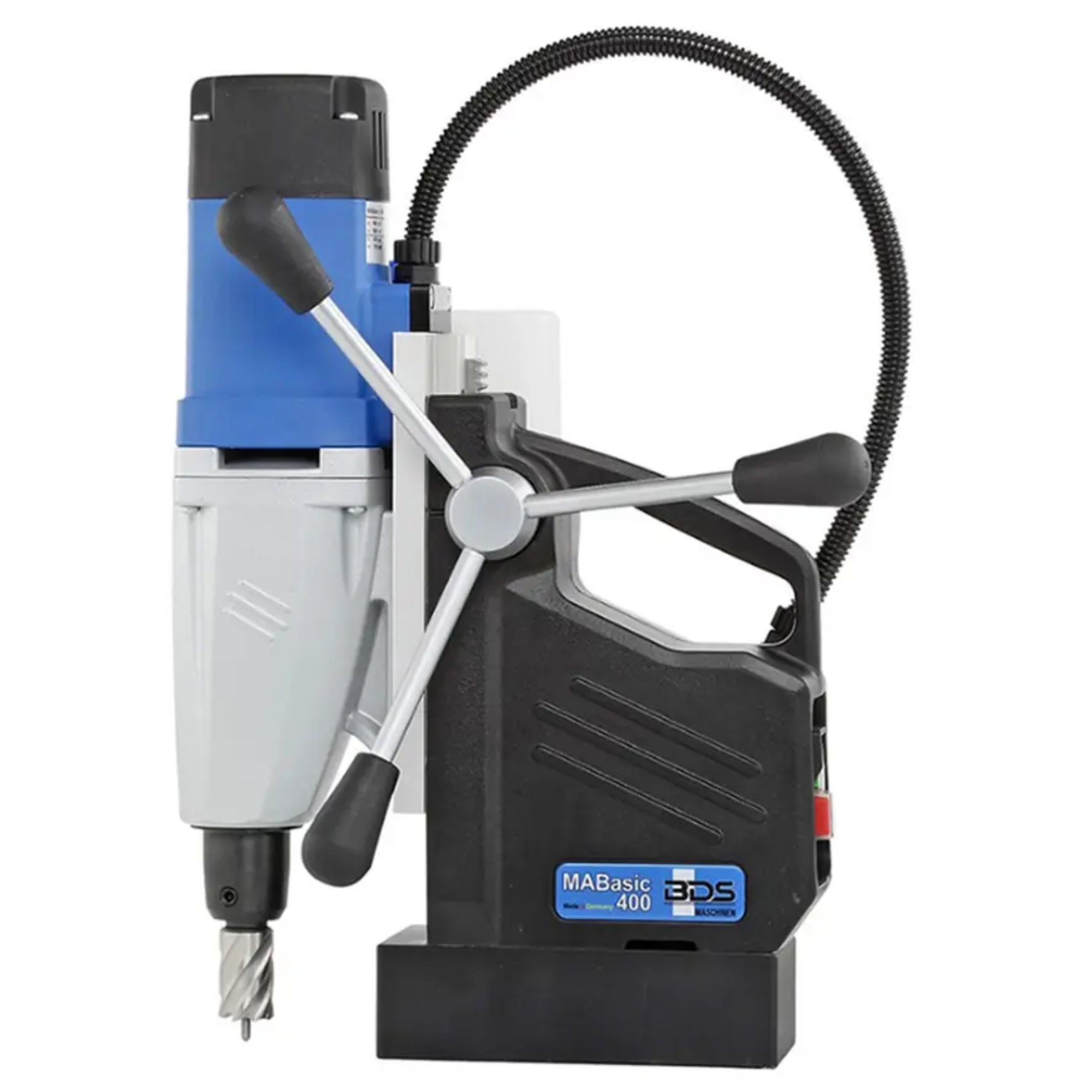

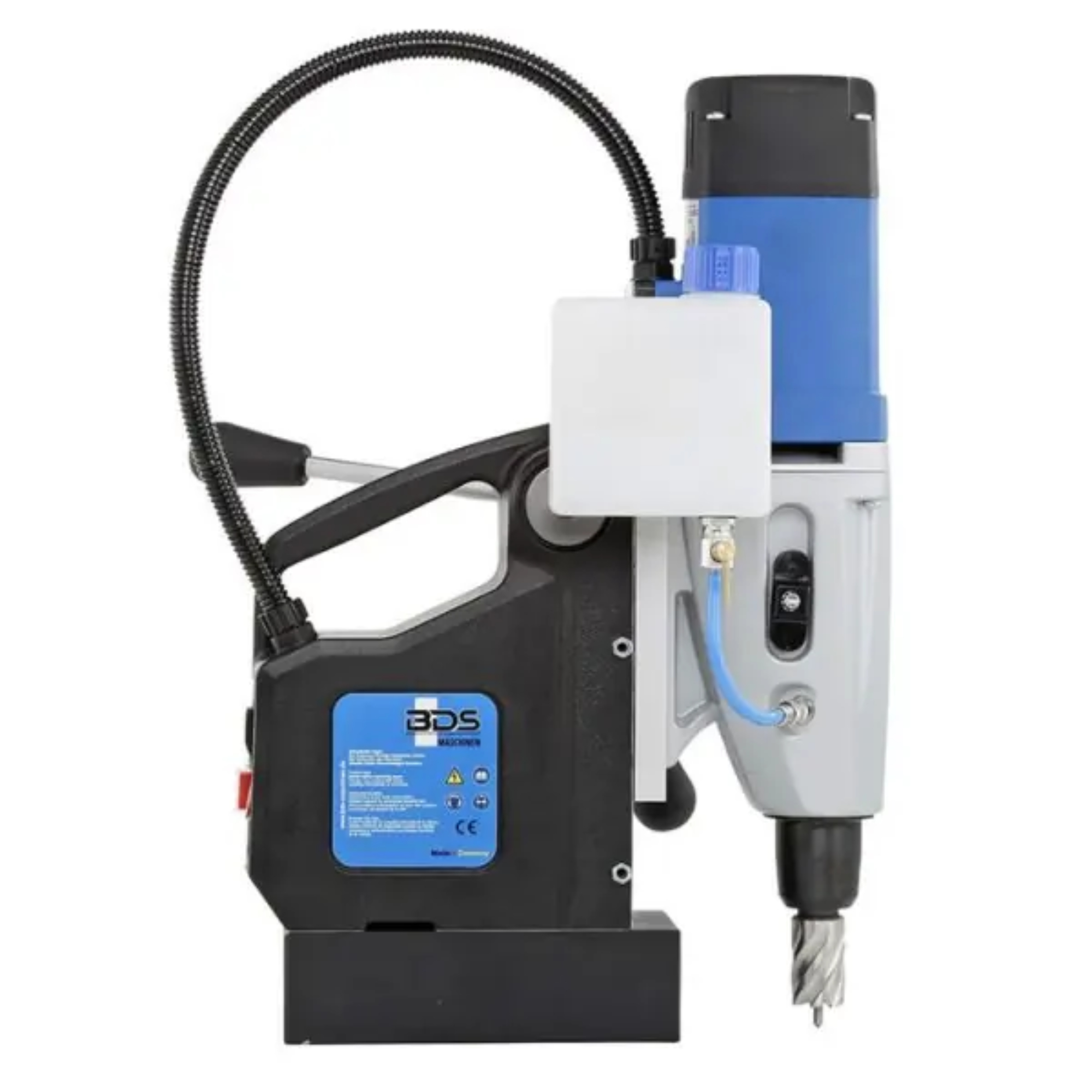

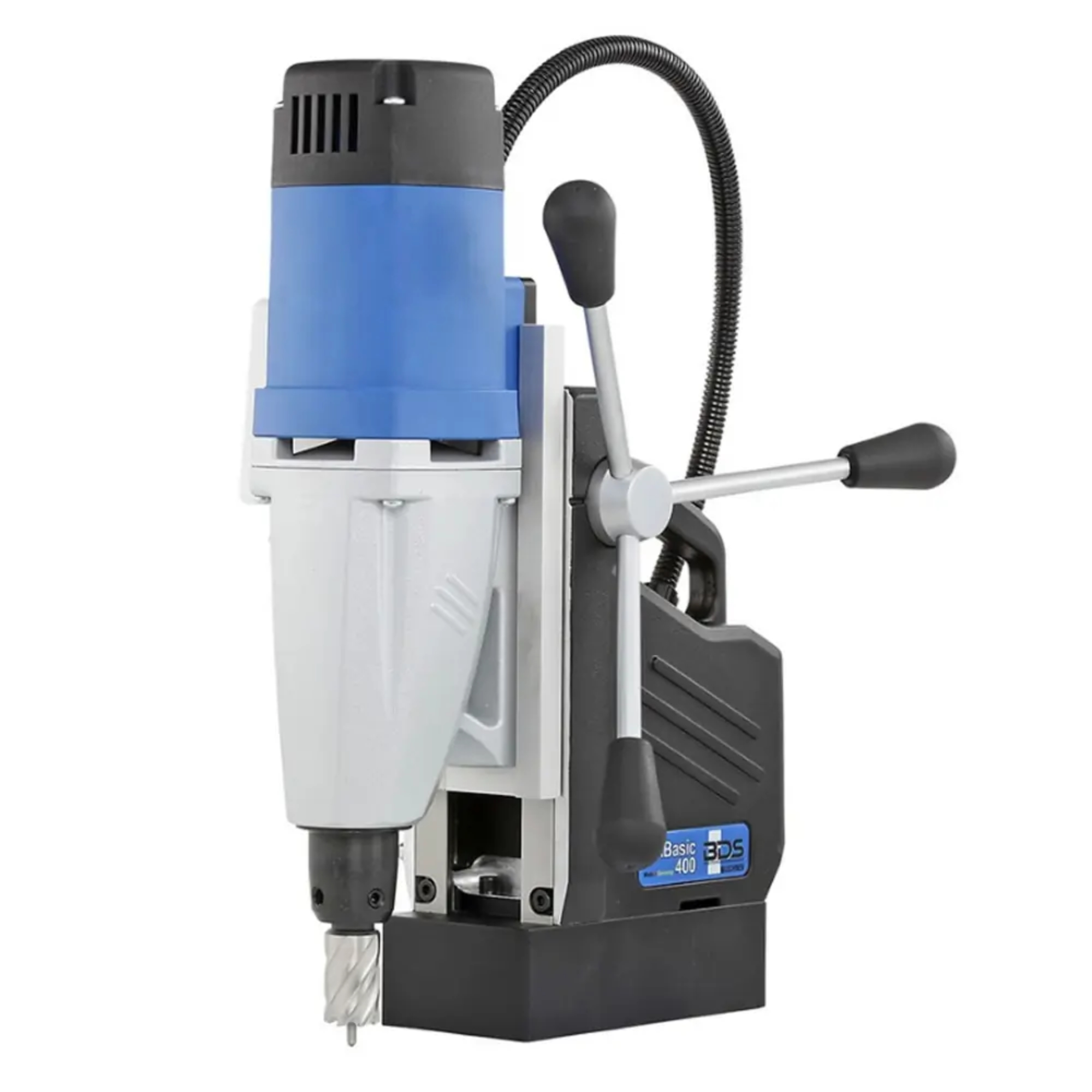

MABasic 400 Portable Magnetic Drilling Machine
The MABasic 400 magnetic drilling machine boasts a robust and dependable 1,050 W motor designed for high-speed performance. Achieving 760 RPM, it’s ideal for precision drilling with twist drills. Crafted in Germany, this magnetic base drilling machine ensures reliability and durability.
For enhanced safety, the motor safety switch and magnet switch are conveniently located at the center of the machine’s back, featuring an anti-glare display. This positioning enables secure operation, even during overhead or vertical tasks.
More Information
 Motor output |
Watt
|
1050
|
 Voltage, V AC |
Volt
|
230 – 110/125
|
 Core drill cutting depth max. |
mm
|
55
|
 Core drill max. Ø HSS/TCT |
mm
|
35
|
 Twist drill |
mm
|
16
|
 Reaming |
—
|
|
 Countersinking |
—
|
|
 Thread cutting |
—
|
|
 Stroke |
mm
|
160
|
 Magnet dimensions |
—
|
|
 Weight |
kg
|
12
|
 Spindle taper |
—
|
|
 Arbor |
Direct arbor 19 mm Weldon 3/4”
|
|
 KEYLESS 19 mm Weldon 3/4“ |
—
|
|
 Speed gears |
2
|
|
 Gear 1 range |
min-1
|
430
|
|
Gear 2 range |
min-1
|
760
|
 Permanent internal lubrication |
✔
|
|
 Safety clutch |
—
|
|
 Torque control |
—
|
