Lock Ring – High Tonnage

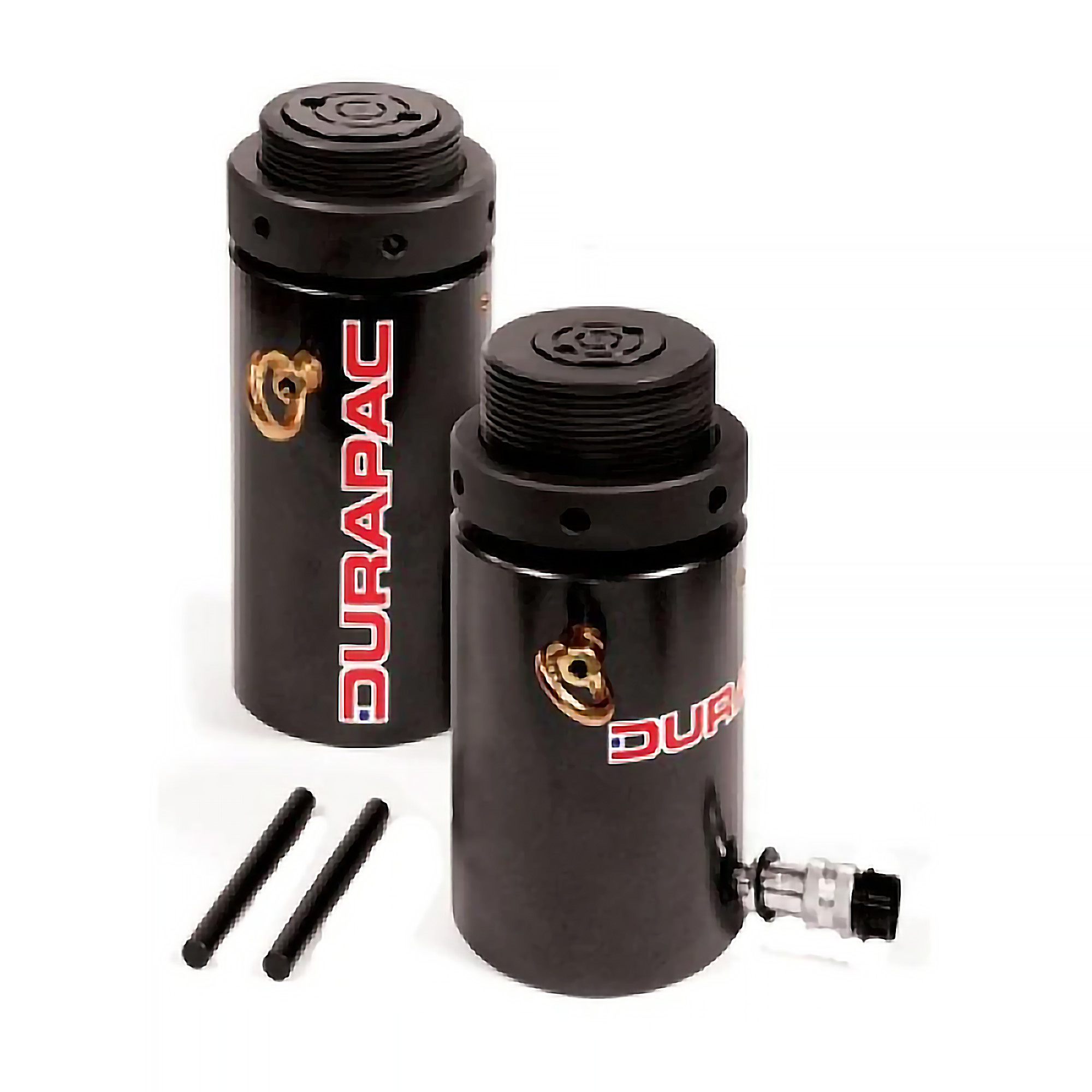

The RSCL series features a threaded piston rod and lock ring.

  • When the lock ring is screwed down and engages with the cylinder body the load can be held mechanically for extended periods.
  • These cylinders are ideally suited to bridge construction and maintenance and jacking applications requiring safe extended load holding.

Additional Information

More Information

  • All RSLC-Series cylinders feature a hard chrome bore for maximum corrosion resistance and a special coating on the piston rod and lock ring to resist corrosion and abrasion.
  • Hardened removable saddles are standard and TSX tilt saddles are optional.
  • An oil overflow port which restricts piston stroke is standard on all models.
  • Capacity 50 – 1000 ton
    Stroke 50-300 mm
