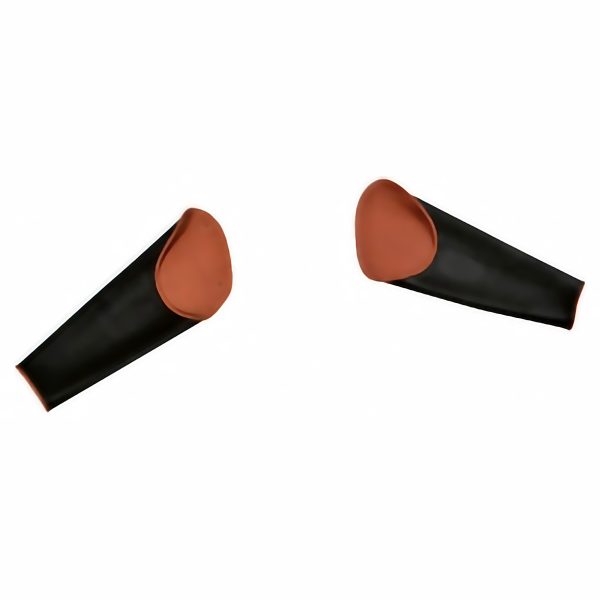

High Voltage Rubber Insulating Sleeves Straight Type

Made in Japan to a very high quality
Meet international standards
Comfortable and flexible
Class 2-4 available in S, M, L, XL

Additional Information

ITEM NO.	SIZE	A.C.PROOF TEST VOLTAGE	A.C.MAXIMUM USE VOLTAGE	CLASS
YS-138-10-02	M	20KV / 3min	17000 V	2
YS-138-10-03	LG	20KV / 3min	17000 V	2
YS-138-10-04	XLG	20KV / 3min	17000 V	2

YS-138-11-02	M	30KV / 3min	26500 V	3
YS-138-11-03	LG	30KV / 3min	26500 V	3
YS-138-11-04	XLG	30KV / 3min	26500 V	3

YS-138-12-02	M	40KV / 3min	36000 V	4
YS-138-12-03	LG	40KV / 3min	36000 V	4
YS-138-12-04	XLG	40KV / 3min	36000 V	4
