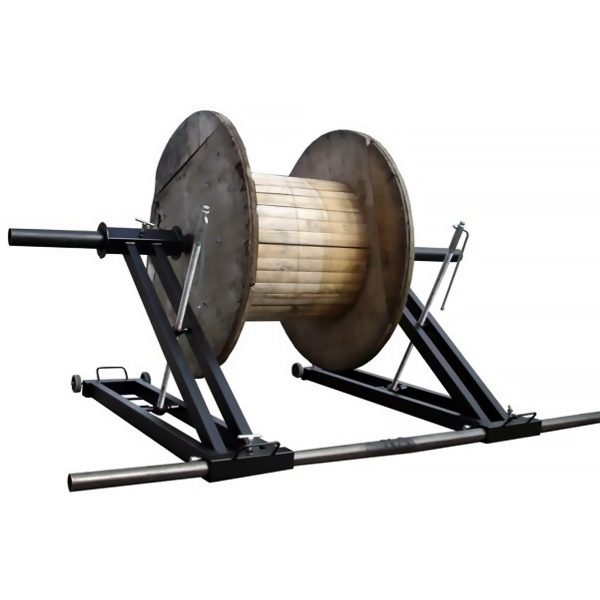

Hearthill Scissor Lift stand

The Scissor lift drum stands are well suited for uneven ground as the individual lifting screws can be adjusted separately. They are simple and easy to use and unlike their competition, sealed directional bearings (insert) aid the ease of lifting and lowering of cable drums. Complete with two stands with wheels for transportation, collars to retain drums and a ground joining bar for rigidity during operation, along with a stamped and registered load bearing axle the SLS is a very cost effective and efficient set of equipment.

SLS1-2T Specifications

Working Load Limit 2000kg

Maximum drum size – ø1.8m (55 degrees lift)

Usable drum spindle length – 1.7m

Drum spindle diameter – 60mm

Weight each half – 38kg

SLS3-4T Specifications

Maximum drum size – ø2.6m (60 degrees lift)

Usable drum spindle length – 2m

Working Load Limit – 4000kg

Drum spindle diameter – 90mm

Weight each half – 45kg



Each scissor lift set comprises;

•2 x complete stands with HDPE wheels
•1 x stamped and registered 60mm (SLS1-2T)/90mm (SLS3-4T) diameter axle
•1 x ground joining bar 60mm in diameter
•2 x retaining collars
