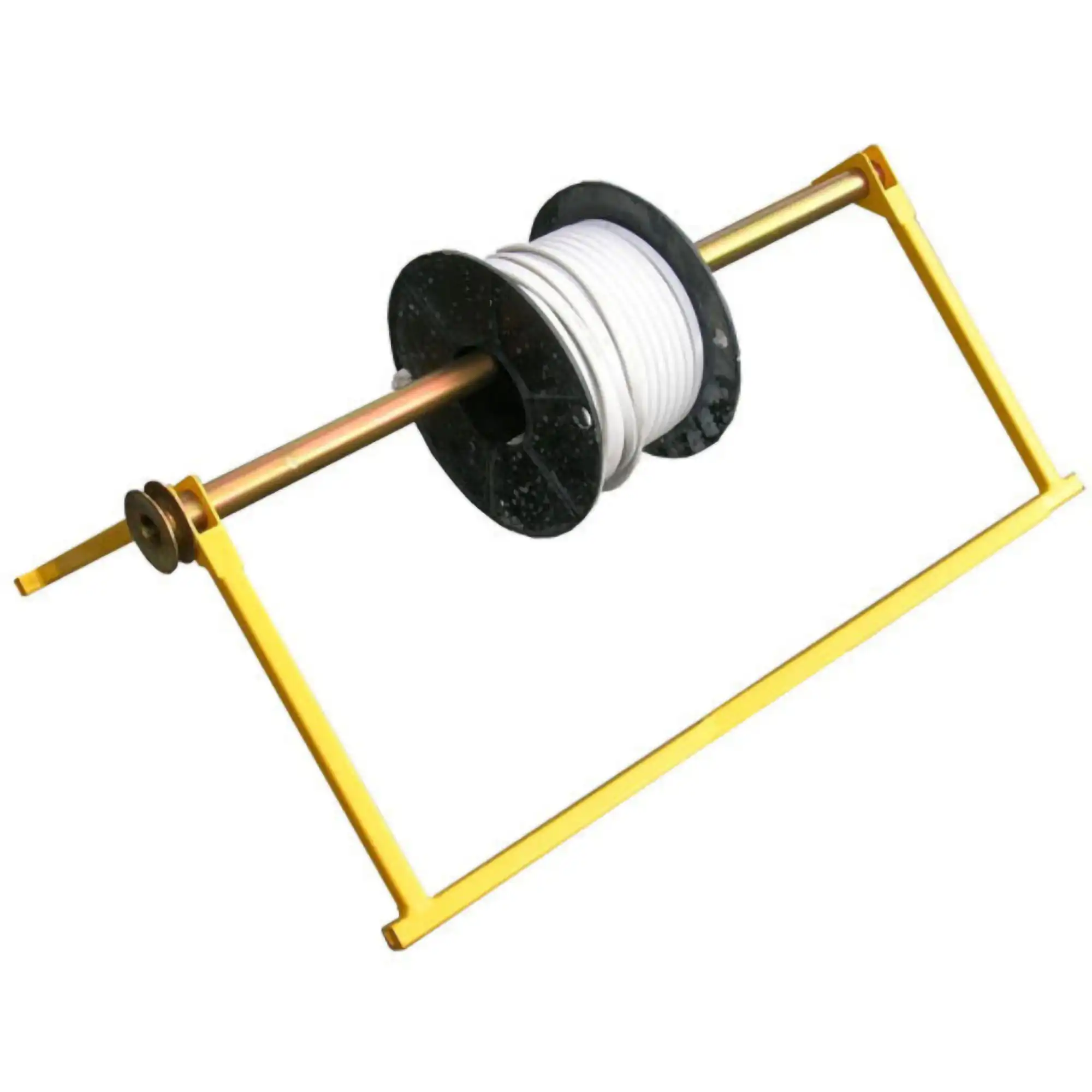

Hearthill Cable Reel Stand Foldable
CRS-290 Cable Reel Stand for 2 to 3 Reels of Electrical Cable
Light weight and transportable
Folds flat for storage and transport
Useable axle length 800mm
Includes zinc plated 33mm OD axle
Used in industrial situation with power coated finish
More Information
The CRS-290 Cable Reel Stand is a lightweight, portable solution for supporting and dispensing cable drums in industrial and construction environments.
Designed for convenience and practicality, the stand features a fold-flat frame for easy storage and transportation, alongside usable axle length to accommodate compatible cable reels.
Finished with a durable powder-coated frame and supplied with a zinc-plated 33mm diameter axle, the CRS-290 offers a simple, reliable cable handling solution without unnecessary bulk.
With a lightweight construction of just 5.8kg and a 50kg Working Load Limit (WLL), it’s ideal for smaller cable drums and everyday cable handling requirements.
Technical specifications
| Specification | CRS-290 |
|---|---|
| Model | CRS-290 |
| Product | Cable Reel Stand |
| Working Load Limit | 50kg |
| Weight | 5.8kg |
| Usable axle length | 800mm |
| Axle outside diameter | 33mm |
| Frame finish | Powder-coated |
| Axle finish | Zinc-plated |
| Suitable drum size | Small builders’ cable drums |
| Maximum drum width | 700mm |
Dimensions
| Model No. | Description | Dimensions (mm) | Drum Width | Weight (kg) |
|---|---|---|---|---|
| CRS-290 | Cable Reel Stand | 1780 × 1260 × 830 (L × W × H) | Small builders’ cable drums* | 5.8 |
*Maximum drum width: 700mm.
| Configuration | Dimensions (L × W × H) |
|---|---|
| As supplied | 900 × 531 × 400mm |
| Folded | 900 × 531 × 140mm |
