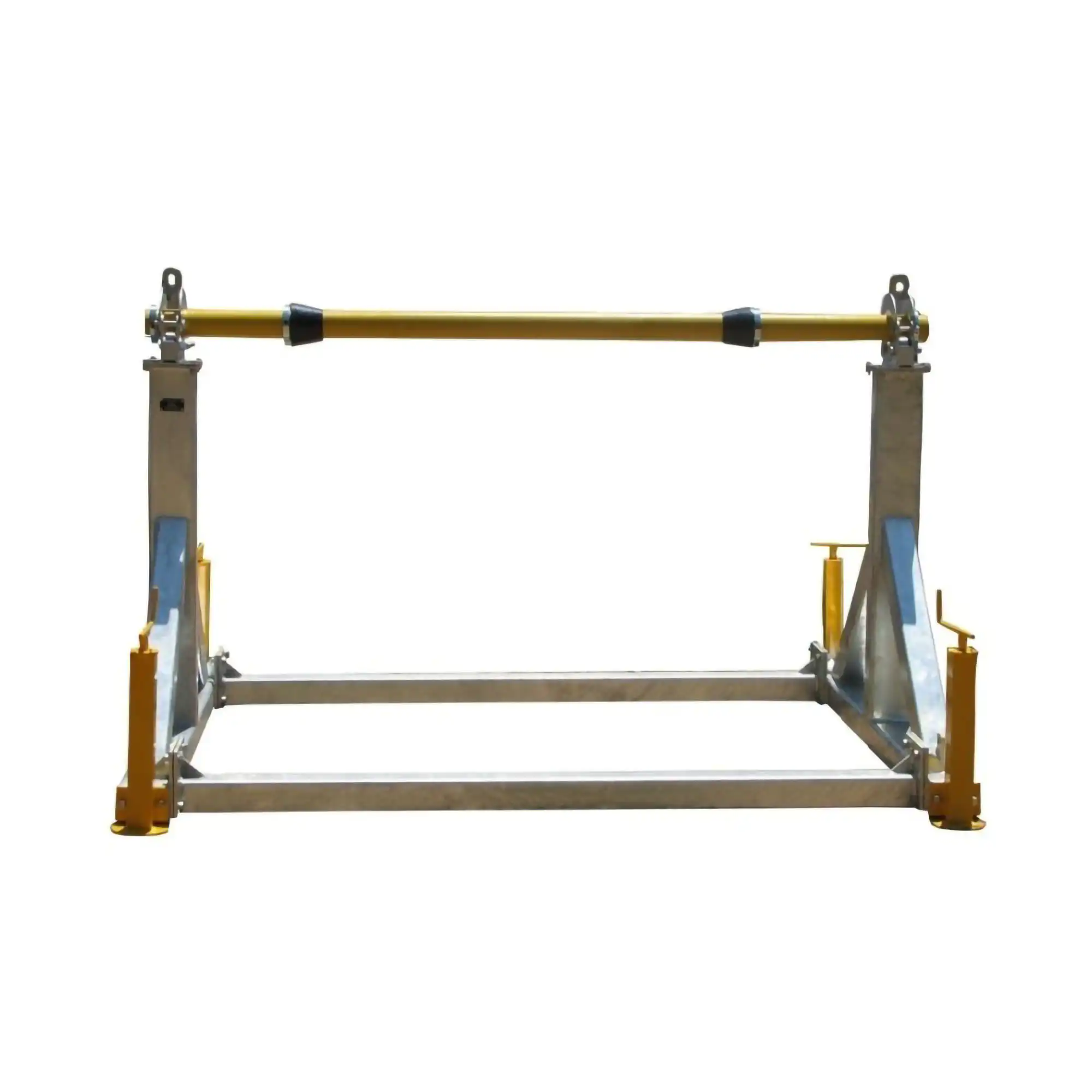

Hearthill A-frame type drum stand

DSF-XXXX-XXT A-frame type Drum Stand

Hearthill also offers a range of Certified A-frame type drum stands. All sets are complete with drum spindle, cones and collars and are flat packed ready for assembly. Should fixing be required base plates are in place for M12 dynabolts. Provisions for disk brakes are also included.

DSF-2016-6T will suit drums up to 2m in diameter and 1.6m in width weighing 6,000kg. Complete with levelling screws, 66mm drum spindle, 66mm x 2800mm cones and collars.
For larger drums up to 2.4m in diameter and 2m wide the DSF-2420-12T will store cable drums up to 12,000kg. Levelling screws, ø90mm drum spindle and components included.
The DSF-3624-16T will accommodate drums up to 3.6m in diameter x 2.4m in width weighing up to 16,000kg.
100mm drum spindle and accessories are supplied. This A-frame stand features an out rig should extra stability is required during service. Provisions for 2 x Disc Brakes are included.
Optional items
DB-660, Disc brake and fixing arm combo to suit 66mm drum spindle
DB-900, Disc brakeand fixing arm comboto suit 90mm drum spindle
DB-1000, Disc brake and fixing arm combo to suit 100mm drum spindle
