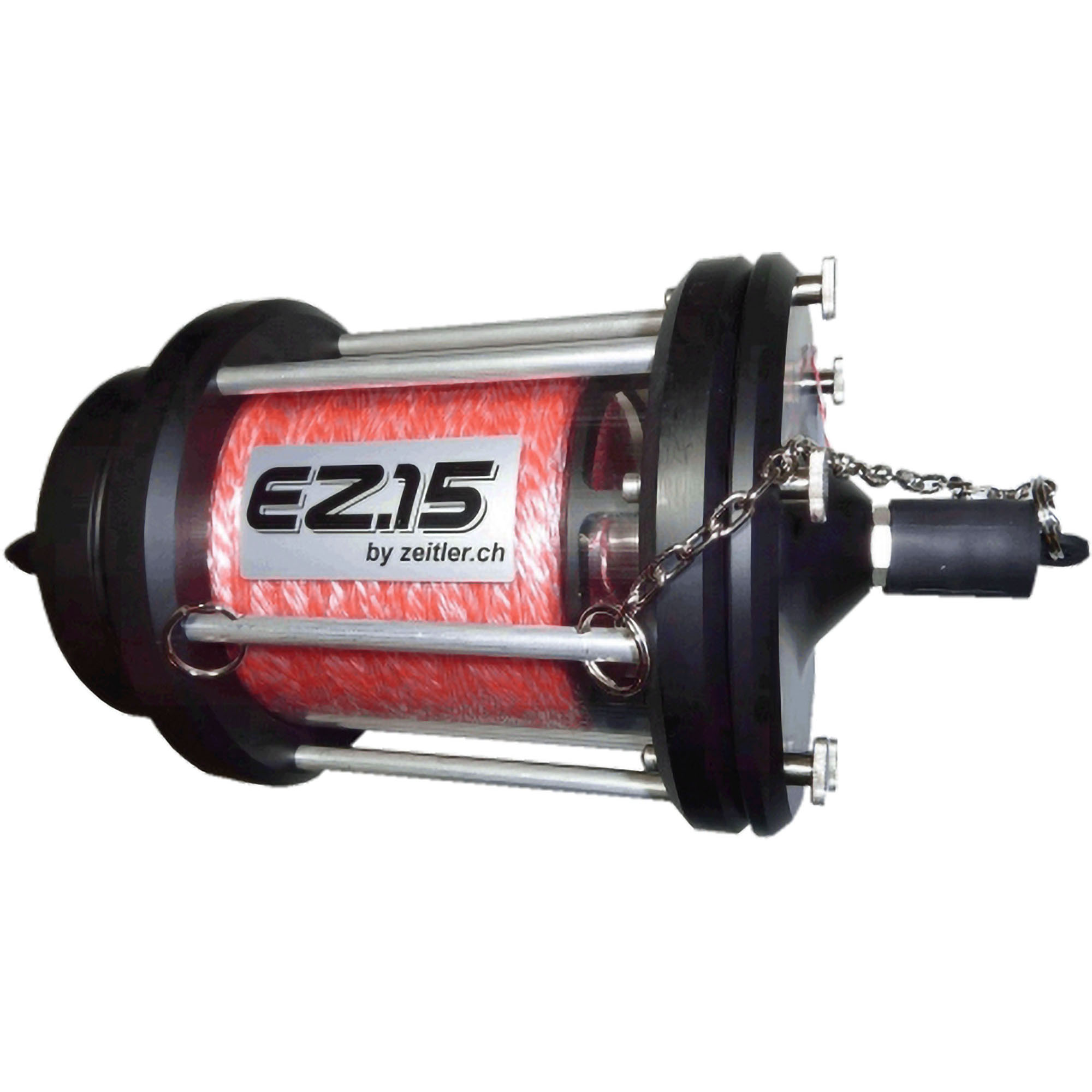

EZ15 Stringing Gun

EZ15 Stringing gun for microducts 4 – 20mm ID

• Blow special pull line (1mm diameter, tensile strength 24kg) into microducts (internal diameter from 4 to 20mm)
• For fibre optics technology
• Installations in the range of private houses, office and industrial buildings
• Ideal for short distances e.g. junction box to home/room
• Lightweight and compact, easy to handle
• Ready for use in seconds
• For use with a standard commercial compressor 200-300l/min (not included)
• Fast feeding (500m in 30s)
• Excellent accessibility, even in confined spaces
• Equipped with safety valves and overpressure protection
• Perfect value for money

Additional Information

More Information

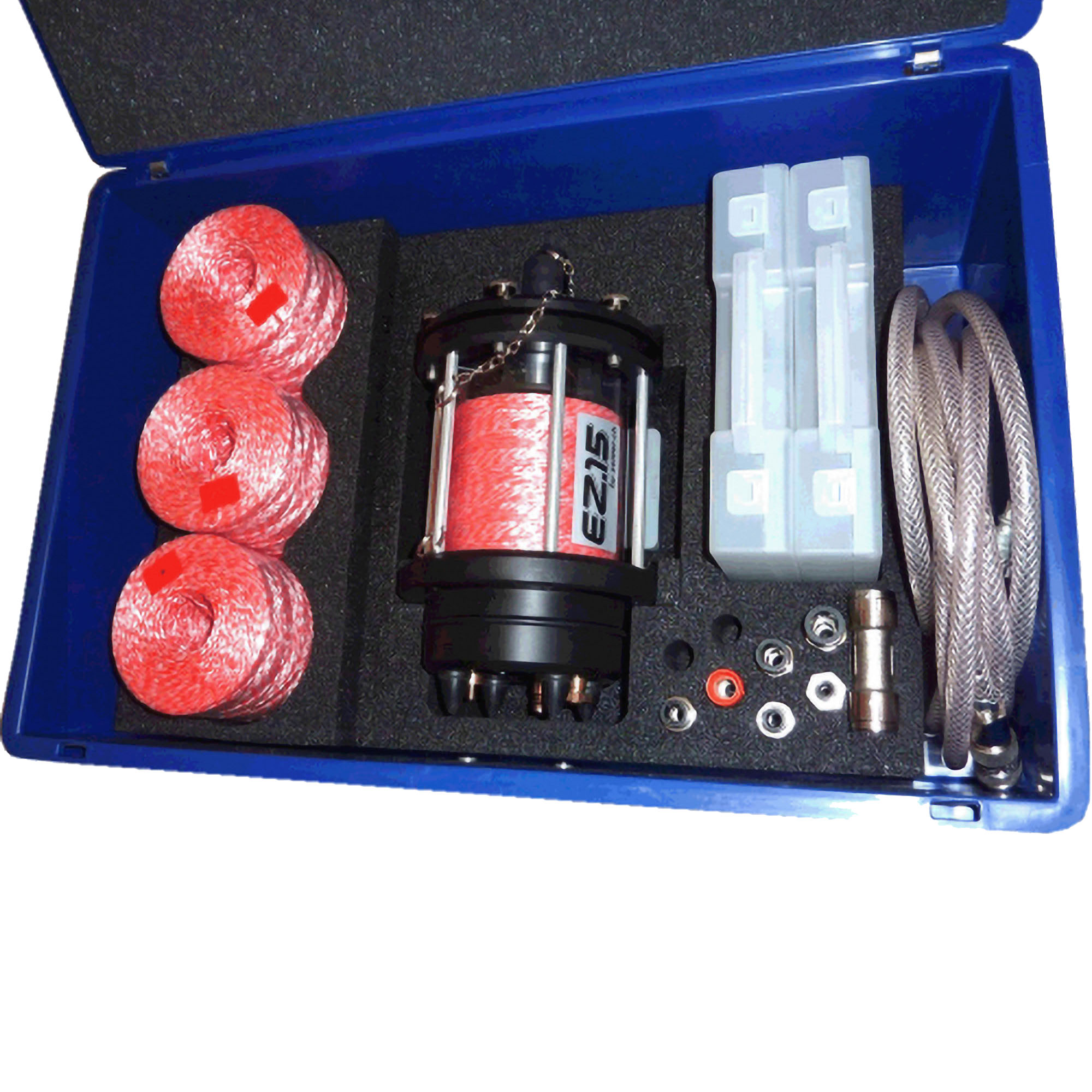

Complete set in strong plastic case including the following accessories:
5 tube couplings for outer diameters 6, 8, 10, 12 and 14 mm (other dimensions on request)
1 tube reductor 8/7mm
1 compressed air hose (3m length)
1 universal hose attachement (base + multi nozzle for internal diameter 13 – 20 mm)
1 T-fitting (to take off the top of the cylinder to refill pull line roll)
1 box with spare parts and sissors
4 special pull line rolls (1mm diameter, tensile strength approx. 24 kg, roll approx. 900 m)
1 operating manual
