EZ100 Stinging Gun

EZ100 Stringing Gun for conduit 50 – 150mm ID.

• Blow or vacuum pull line without compressor (ø 1-4mm, tensile strength up to 300kg)
• For all commercially available cable conduits (internal diameter from 50 to 150mm)
• For cable installations in underground, road, tunnel and bridge construction
• For lengths of 1000m or more (current record 2850m in 100mm duct)
• Huge time saving in cable installation
• Cleaning, taking water out, calibrating and line feeding in one step
• Lightweight and compact, easy to handle
• Excellent accessibility, even in confined spaces
• Perfect value for money

Additional Information

More Information

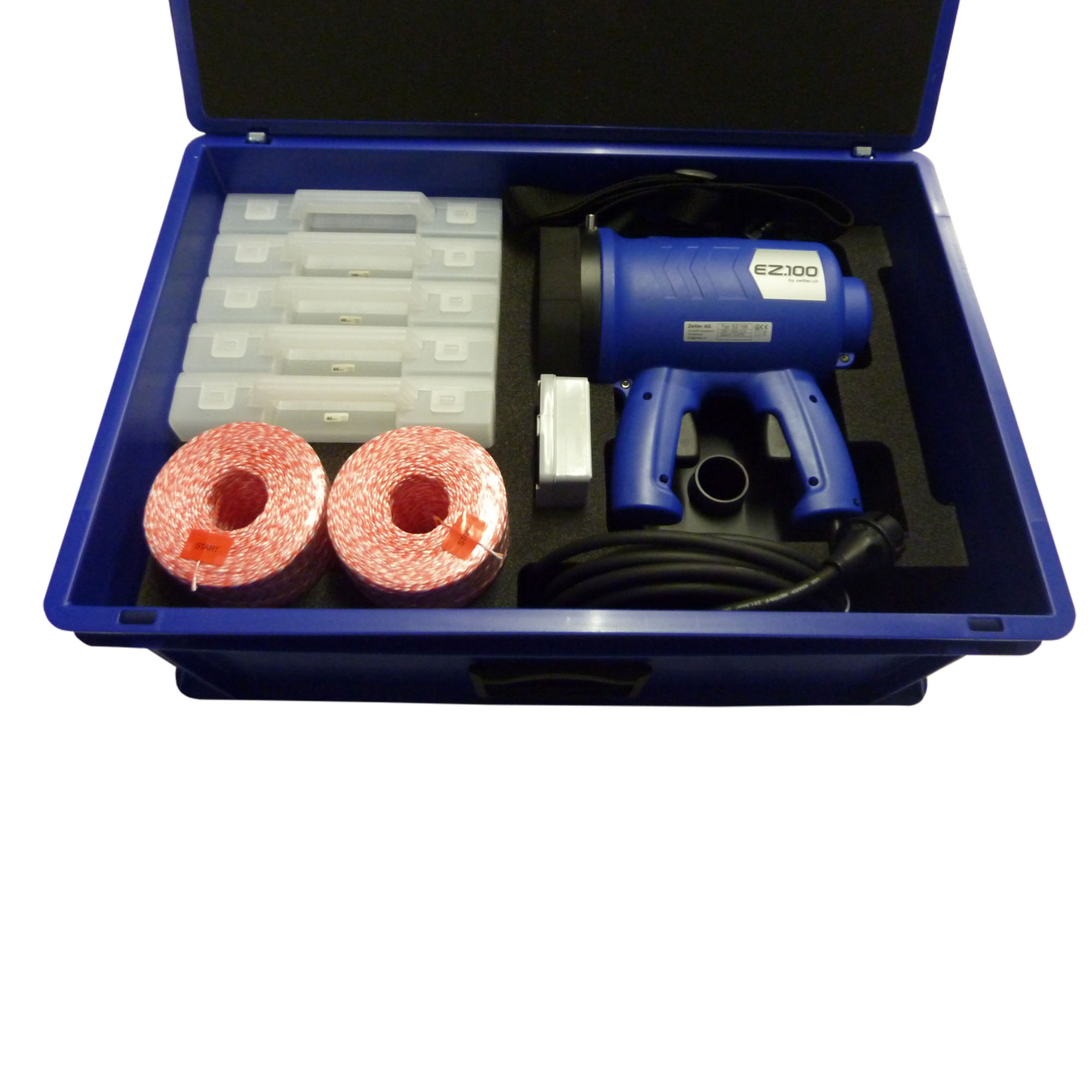

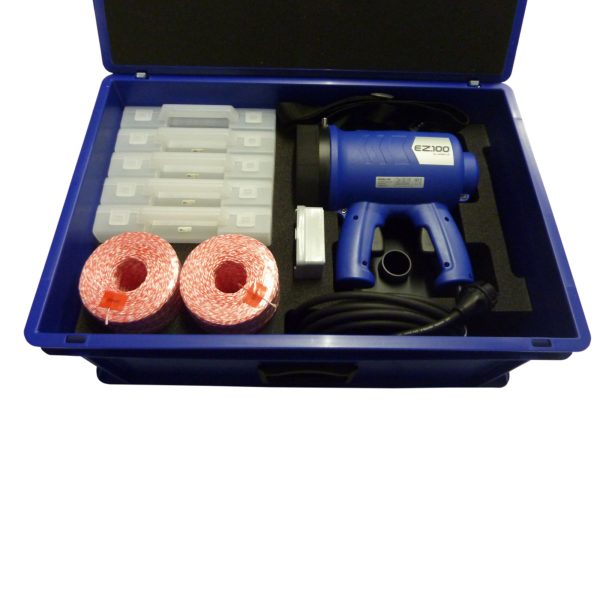

Complete kit in strong plastic case including:

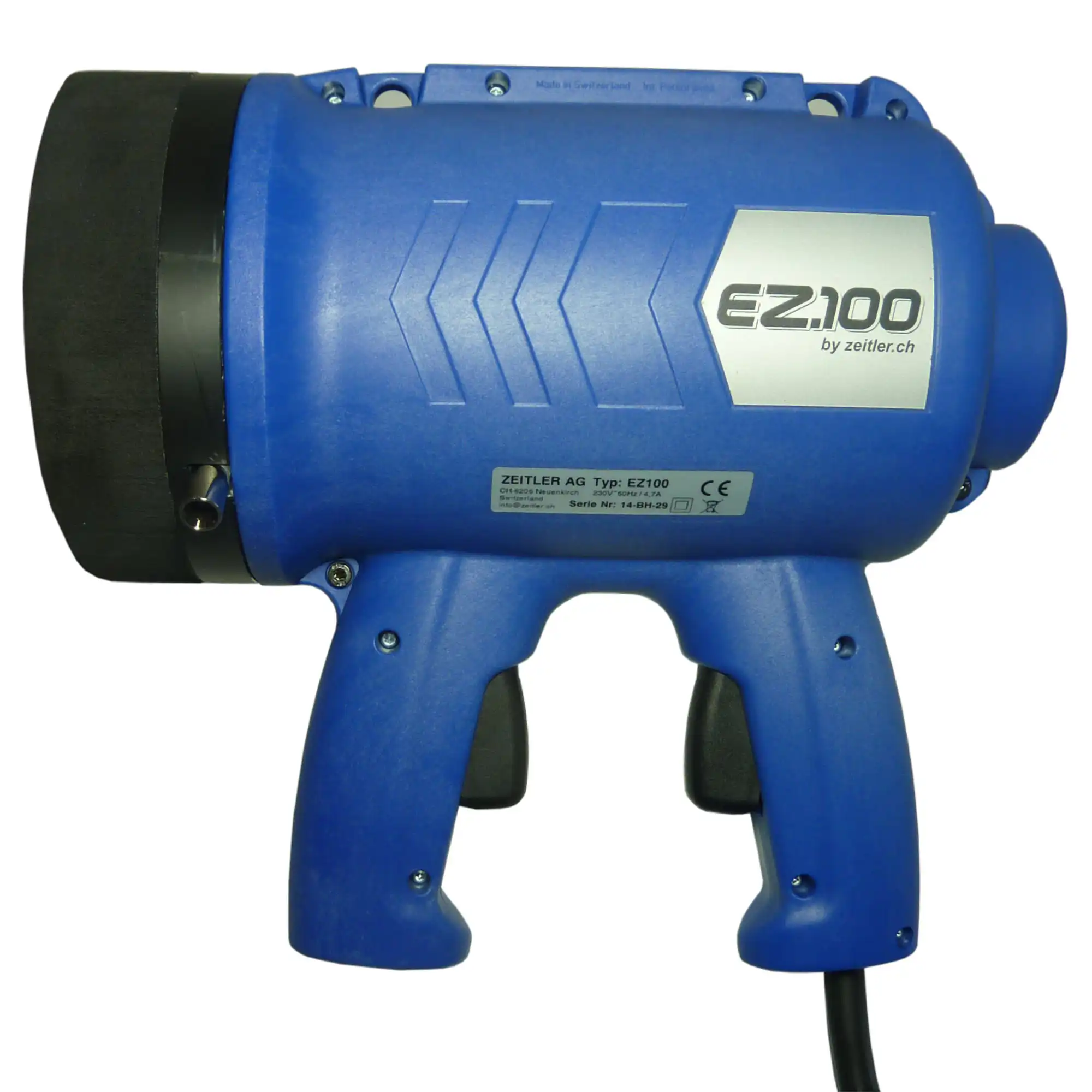

1 EZ100 Stringing Gun (230Volt/50Hz)
2 special pull line rolls (1mm diameter, tensile strength approx 24 kg, length approx. 900 m)
1 cuction unit

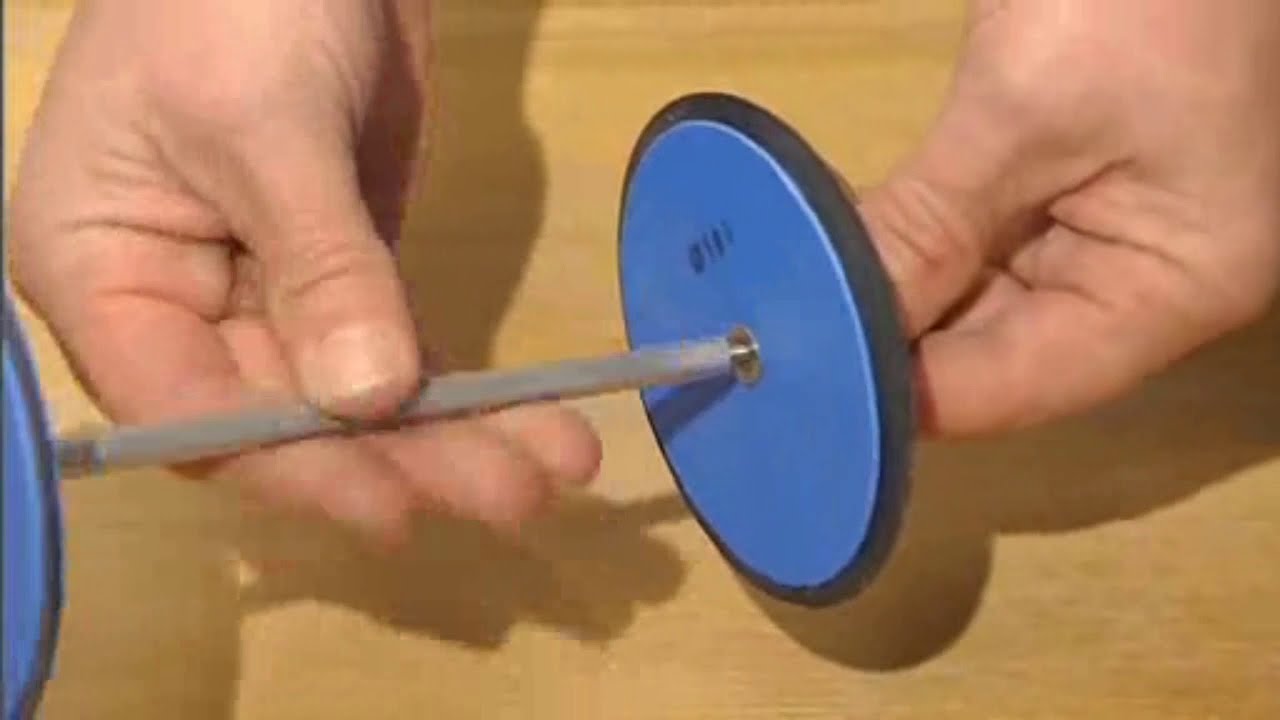

5 shuttle sets dimensions free of choice (ø 20-200 mm) (each set completes 2 shuttles)
1 box with assembly material for shuttles
1 operating manual

If used with the special equipment for small tube diameters (article n° 100073) the EZ100 may feed special pull line into conduits starting at 25 mm internal diameter.
