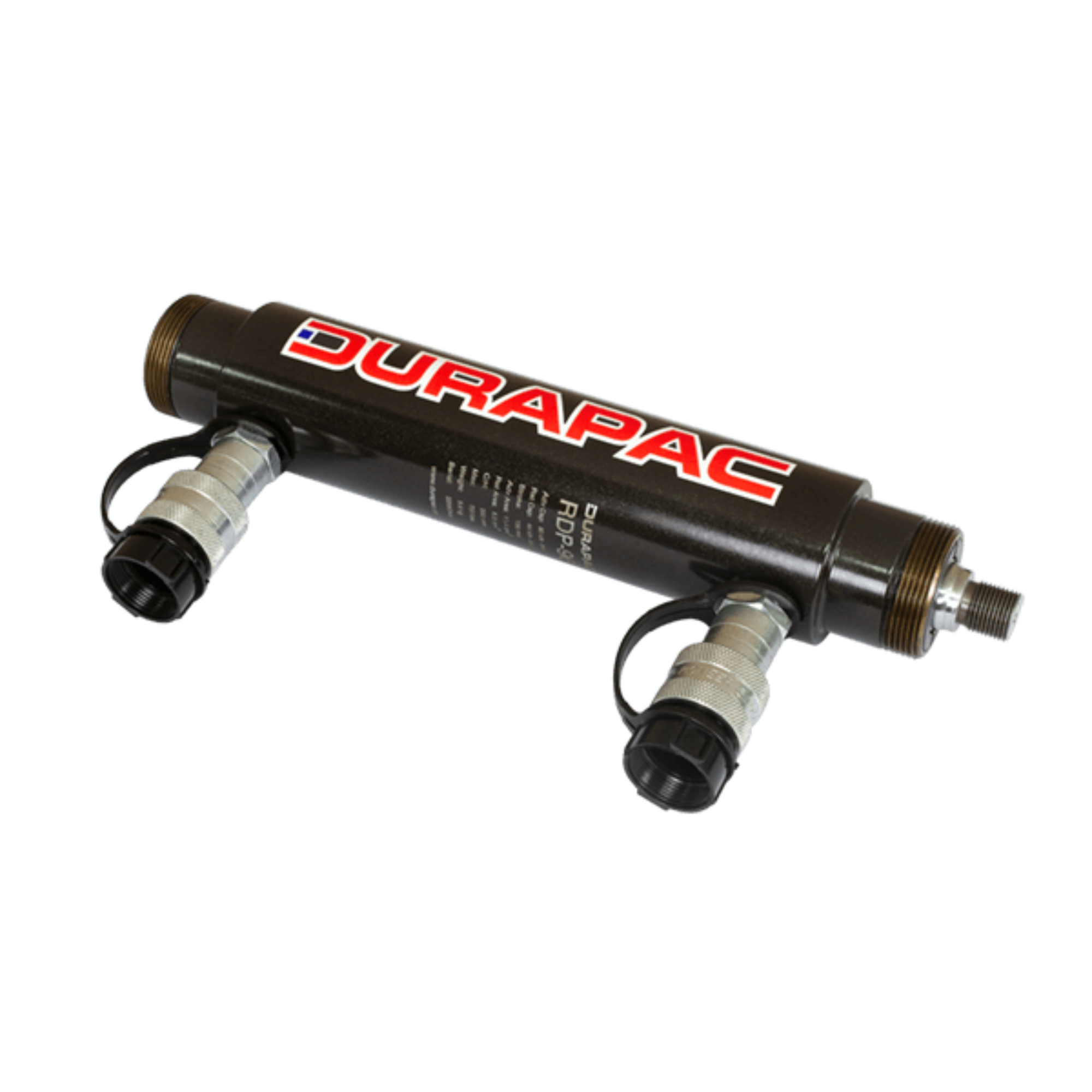

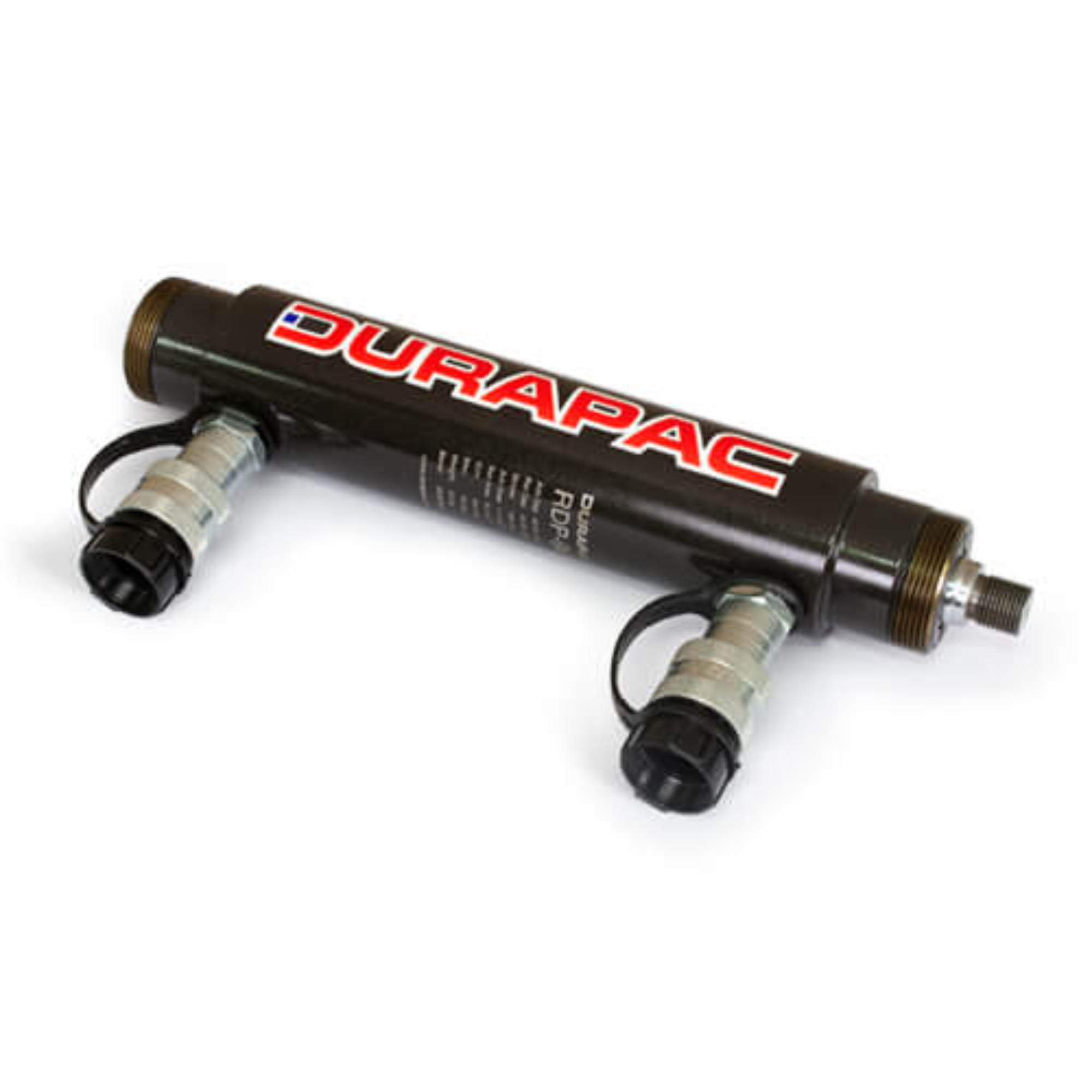

DURAPAC RDP SERIES Double-Acting Cylinders
The RDP-Series Double Acting Operation Cylinder generates force in both directions, offering exceptional fixturing flexibility. It’s the ideal option for production applications.
More Information
- Easy Fixturing: Collar thread, piston rod threads and base mounting holes for easy fixturing.
- Force in Both Directions: The double acting operation cylinder develops force in both directions
- Gland Nut: The gland nut with low friction coating withstands full dead end loading.
- Powder Coated: For maximum durability and corrosion resistance.
- Hard Chrome Plated Piston Rod: The Piston Rod is hard chrome plated for maximum resistance to corrosion and wear.

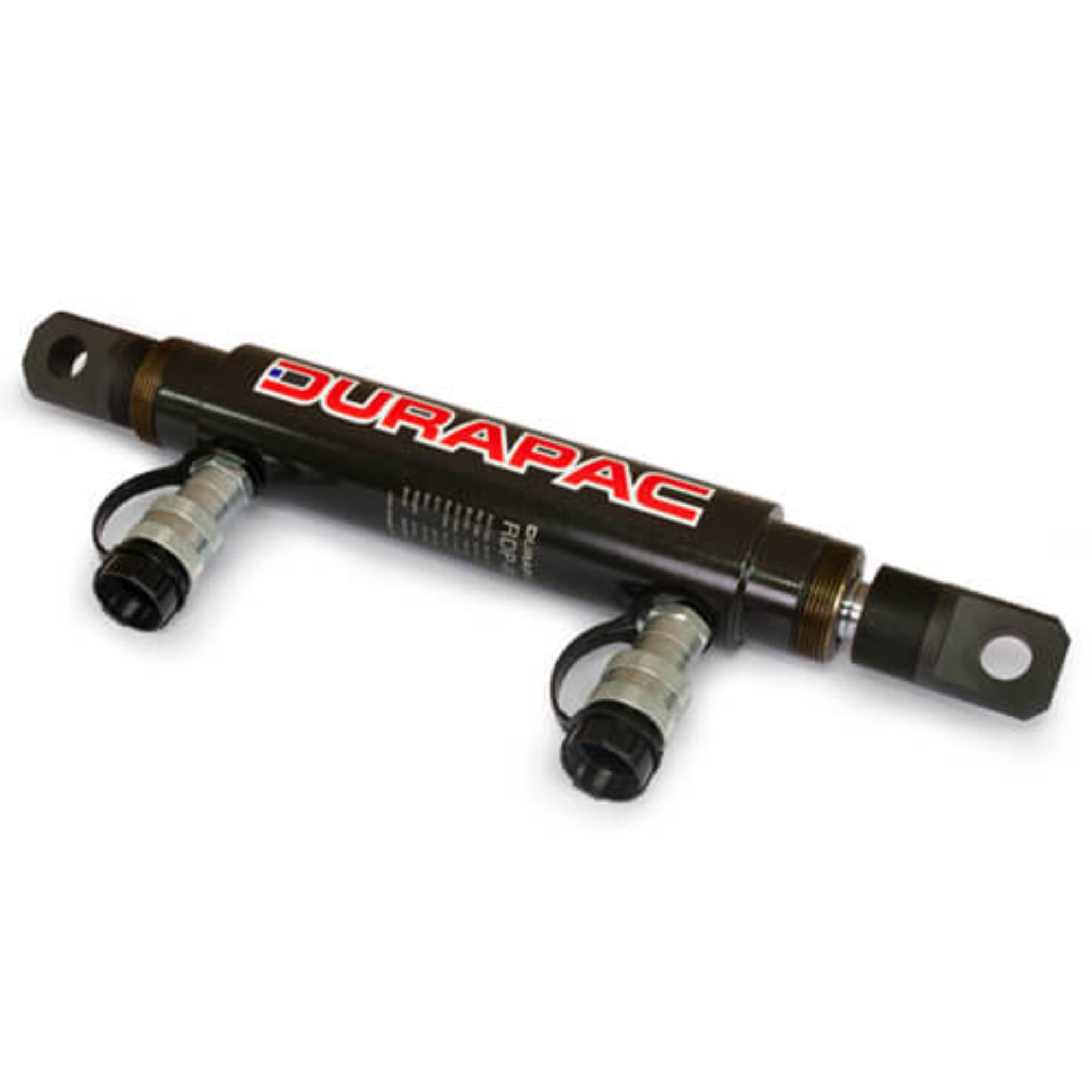

- Optional Fixturing Accessories: Optional fixturing accessories including clevis ends are available.
|
Model Number
|
Cylinder Capacity ton*
|
Cylinder Capacity Advance kN
|
Cylinder Capacity Retract kN
|
Stroke (mm)
|
Cylinder Effective Area Advance (cm2)
|
Cylinder Effective Area Retract (cm2)
|
Oil Capacity Advance (cm3)
|
Oil Capacity Retract (cm3)
|
Collapsed Height (mm)
|
Extended Height (mm)
|
Body Length (mm)
|
Outside Diameter (mm)
|
Cylinder Bore Diameter (mm)
|
Piston Rod Diameter (mm)
|
Base to Advance Port (mm)
|
Top to Return Port (mm)
|
Top to Return Port (mm)
|
Piston Rod Protrusion (mm)
|
Neck Length (mm)
|
Piston Rod Thread Length (mm)
|
Piston Rod Extension
Thread |
Collar |
Collar Thread Length (mm)
|
Internal Base
Thread |
Internal Base
Thread Length (mm) |
Weight (kg)
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RDP-41 | 4 | 35 | 16 | 29 | 5.1 | 2.2 | 14 | 6 | 186 | 214 | 162 | 50.1 | 25.4 | 19.0 | 48 | 48 | 48 | 24 | 29 | 19.1 | 1/2″-20 | 1-3/8″-12 | 11 | 1-1/8″-20 | 9 | 2.0 | ||
| RDP-43 | 4 | 35 | 16 | 80 | 5.1 | 2.2 | 40 | 17 | 237 | 316 | 213 | 50.1 | 25.4 | 19.0 | 48 | 48 | 48 | 24 | 29 | 19.1 | 1/2″-20 | 1-3/8″-12 | 11 | 1-1/8″-20 | 9 | 2.6 | ||
| RDP-46 | 4 | 35 | 16 | 156 | 5.1 | 2.2 | 79 | 34 | 313 | 468 | 289 | 50.1 | 25.4 | 19.0 | 48 | 48 | 48 | 24 | 29 | 19.1 | 1/2″-20 | 1-3/8″-12 | 11 | 1-1/8″-20 | 9 | 3.6 | ||
| RDP-91 | 9 | 80 | 44 | 29 | 11.4 | 6.3 | 32 | 18 | 223 | 251 | 198 | 63.5 | 38.1 | 25.4 | 58 | 58 | 58 | 25 | 38 | 19.1 | 3/4″-16 | 2″-12 | 14 | 1-11/16″-18 | 14 | 3.0 | ||
| RDP-93 | 9 | 80 | 44 | 80 | 11.4 | 6.3 | 90 | 50 | 274 | 353 | 249 | 63.5 | 38.1 | 25.4 | 58 | 58 | 58 | 25 | 38 | 19.1 | 3/4″-16 | 2″-12 | 14 | 1-11/16″-18 | 14 | 4.2 | ||
| RDP-96 | 9 | 80 | 44 | 156 | 11.4 | 6.3 | 177 | 98 | 350 | 505 | 325 | 63.5 | 38.1 | 25.4 | 58 | 58 | 58 | 25 | 38 | 19.1 | 3/4″-16 | 2″-12 | 14 | 1-11/16″-18 | 14 | 5.6 | ||
| RDP-910 | 9 | 80 | 44 | 257 | 11.4 | 6.3 | 293 | 162 | 452 | 709 | 427 | 63.5 | 38.1 | 25.4 | 58 | 58 | 58 | 25 | 38 | 19.1 | 3/4″-16 | 2″-12 | 14 | 1-11/16″-18 | 14 | 7.3 | ||
| RDP-166 | 16 | 142 | 77 | 159 | 20.3 | 10.6 | 323 | 169 | 389 | 548 | 359 | 76.2 | 50.8 | 35.0 | 74 | 74 | 74 | 30 | 54 | 25.4 | 1-1/8″-12 | 2-5/8″-16 | 22 | 2-3/16″-16 | 24 | 10.2 | ||
| RDP-1610 | 16 | 142 | 77 | 260 | 20.3 | 10.6 | 528 | 276 | 491 | 751 | 461 | 76.2 | 50.8 | 35.0 | 74 | 74 | 74 | 30 | 54 | 25.4 | 1-1/8″-12 | 2-5/8″-16 | 22 | 2-3/16″-16 | 24 | 14.5 | ||
| RDP-256 | 25 | 222 | 98 | 159 | 31.7 | 13.7 | 504 | 218 | 424 | 583 | 397 | 92.2 | 63.5 | 47.8 | 89 | 89 | 89 | 27 | 70 | 25.4 | 1-1/2″-12 | 3-1/4″-16 | 29 | 2-3/4″-16 | 26 | 16.0 | ||
| RDP-2510 | 25 | 222 | 98 | 260 | 31.7 | 13.7 | 824 | 356 | 526 | 786 | 499 | 92.2 | 63.5 | 47.8 | 89 | 89 | 89 | 27 | 70 | 25.4 | 1-1/2″-12 | 3-1/4″-16 | 29 | 2-3/4″-16 | 26 | 20.3 |
