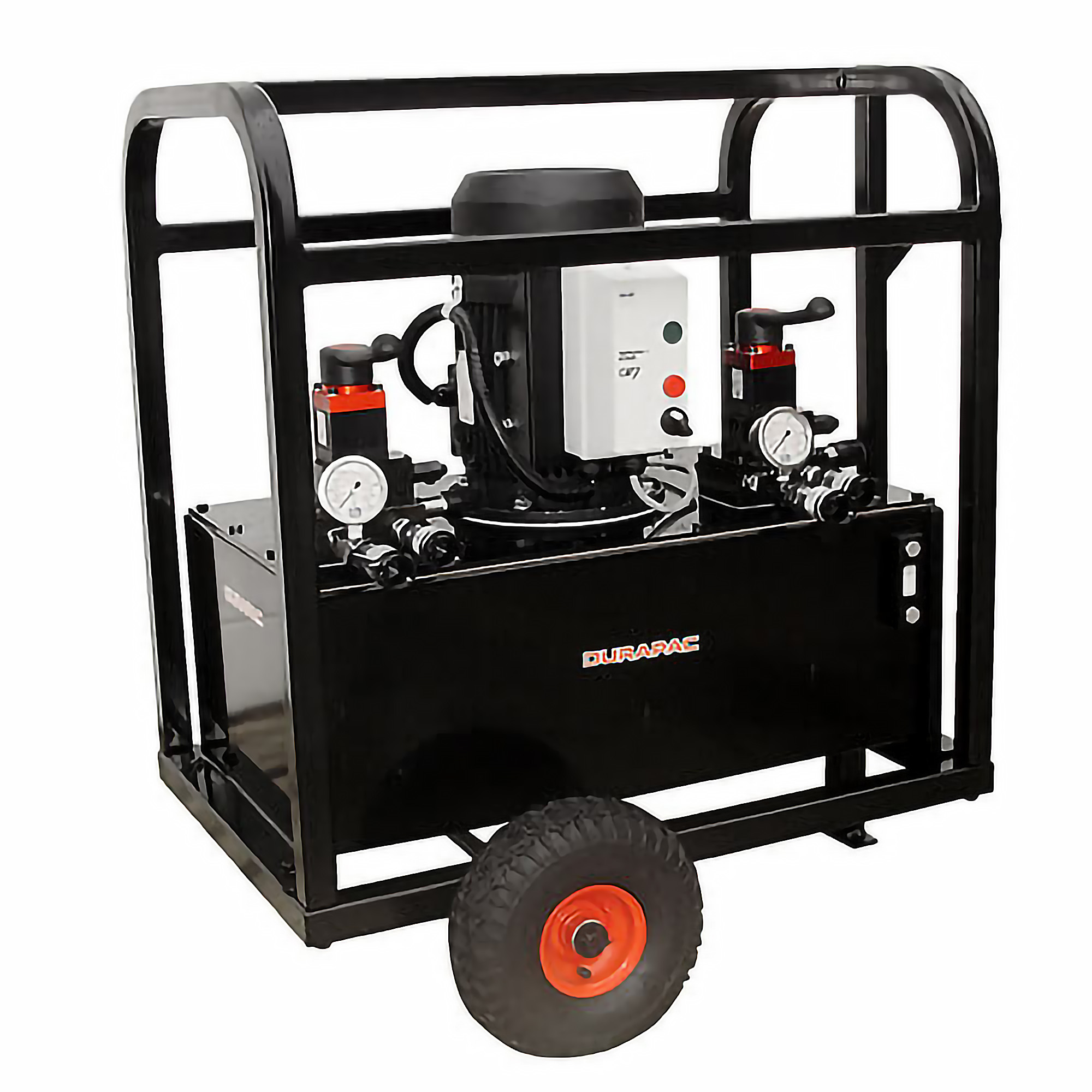

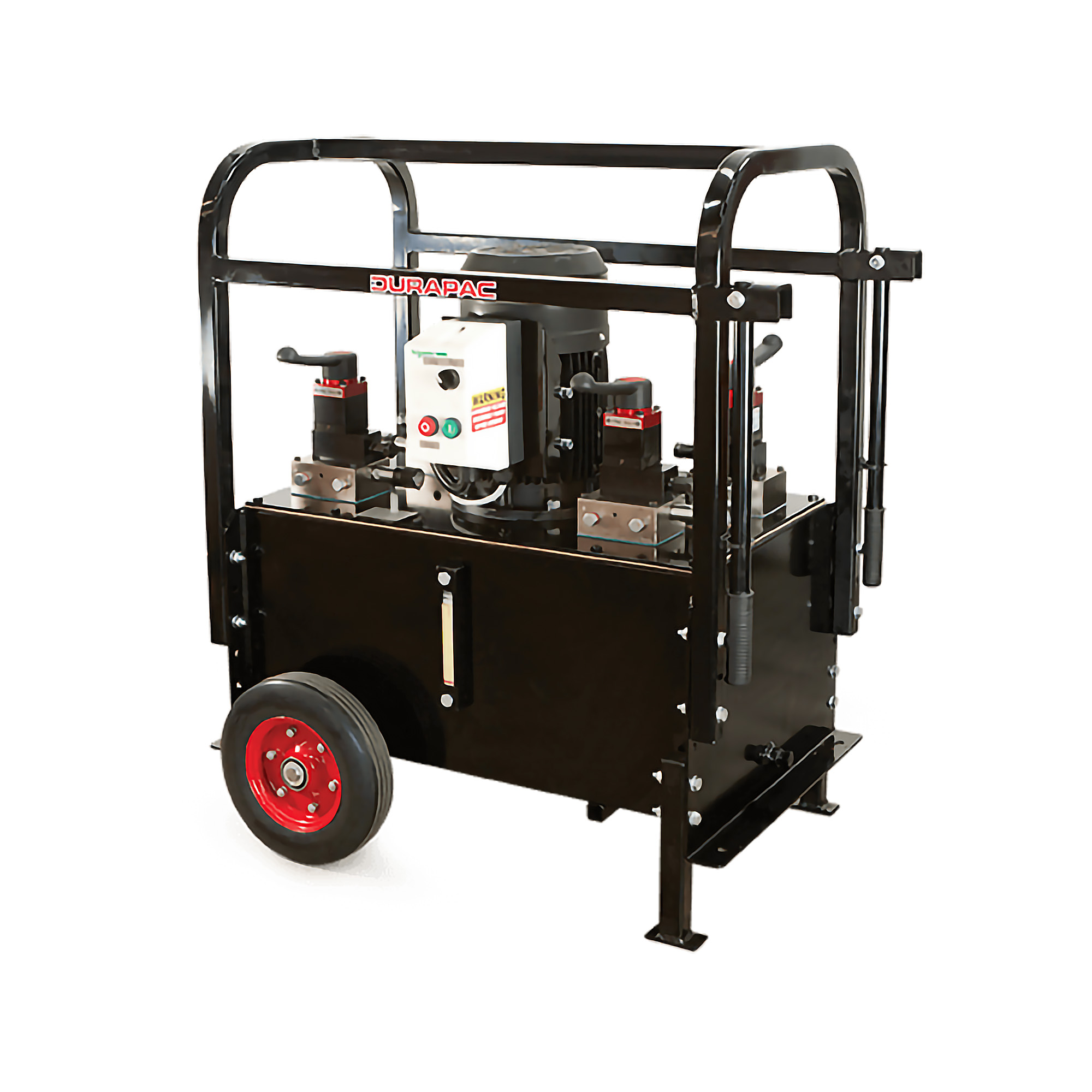

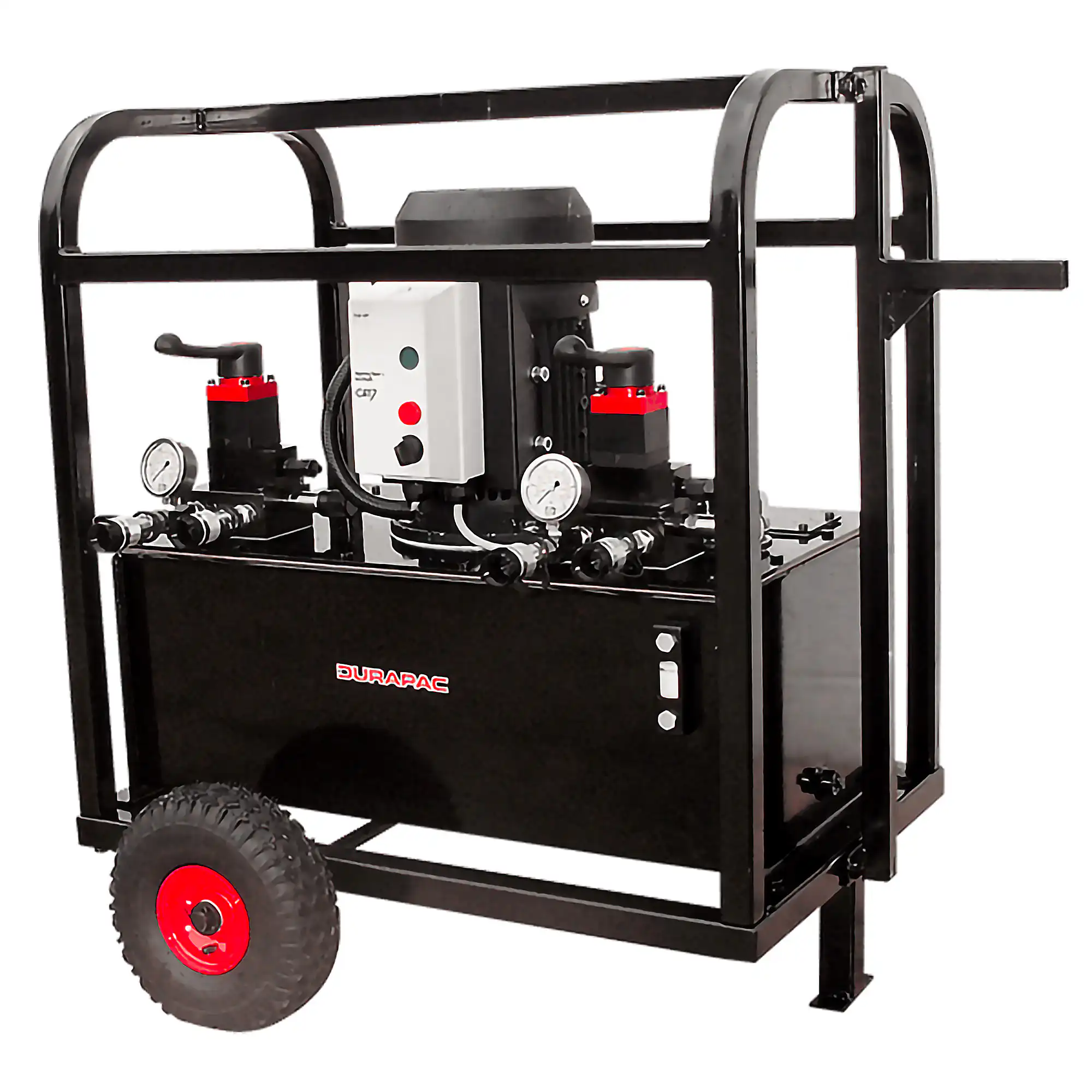

Durapac PEMS Series Electric Split Flow Pumps

The Durapac PEMS Series electric hydraulic split flow power units feature 2 or 4 separate hydraulic circuits.

Each piston feeds an independent circuit with equal flow regardless of the weight distribution on each outlet.

Each circuit is fitted with a directional control valve for operating single and double acting cylinders.

Categories: , Brand:

Additional Information

More Information

  • Perfect Power
    Power units have either a 4.0 kW or 7.5 kW 415 Volt, 50 Hz, 3 phase electric motor.
  • Safety Pressure
    Power units have a 700 bar safety pressure relief valve on each circuit.
  • Adjustable Pressure
    An externally adjustable pressure relief valve is included on each circuit.
  • Synchronised Flow
    Each circuit delivers the same flow rate regardless of weight distribution.
  • Directional Control Valve
    Each circuit has a 4 way, 3 position manual directional control valve and can be used with single and double acting cylinders.
  • Medium to Large Tonnage
    Ideal for operating medium to large tonnage cylinders and systems.
