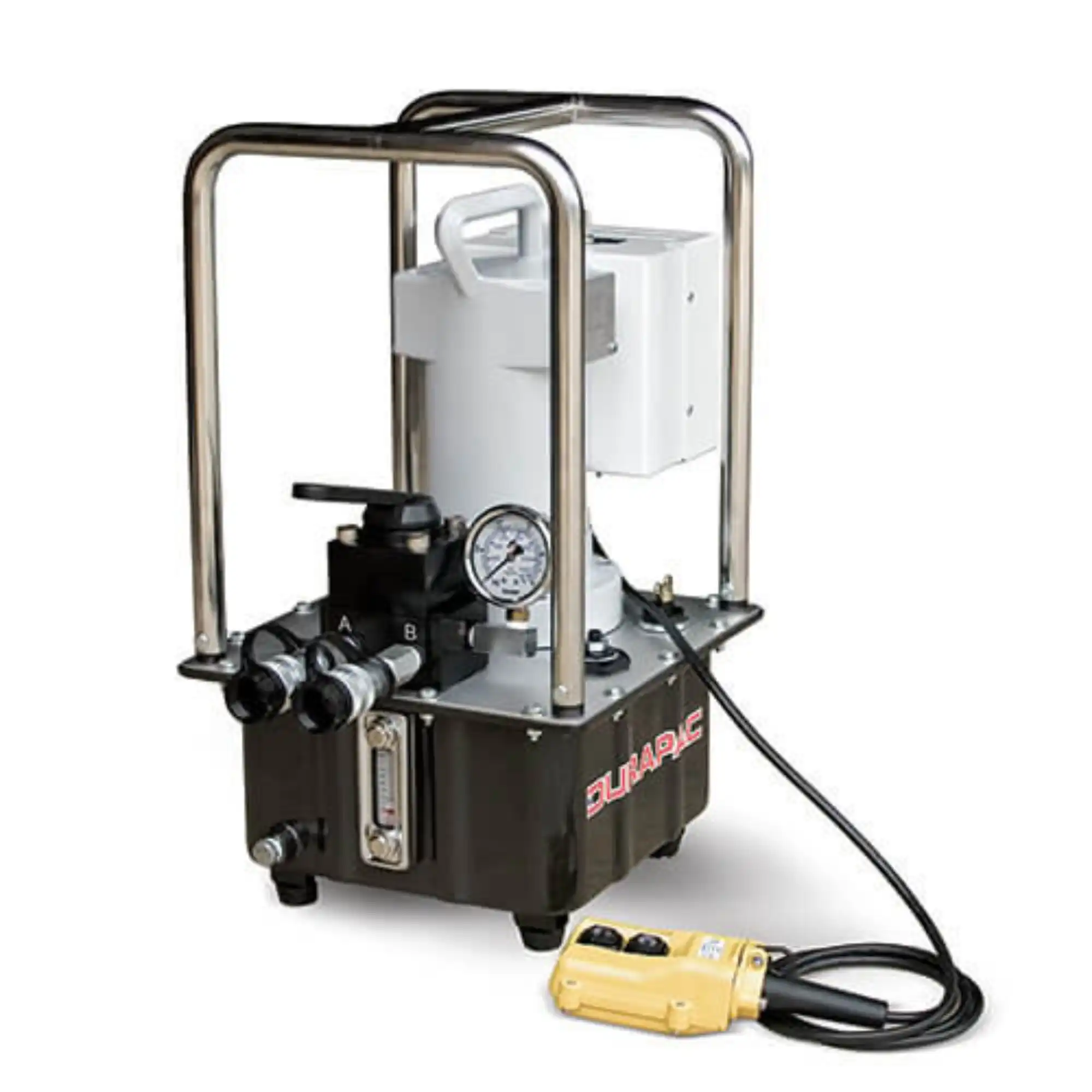

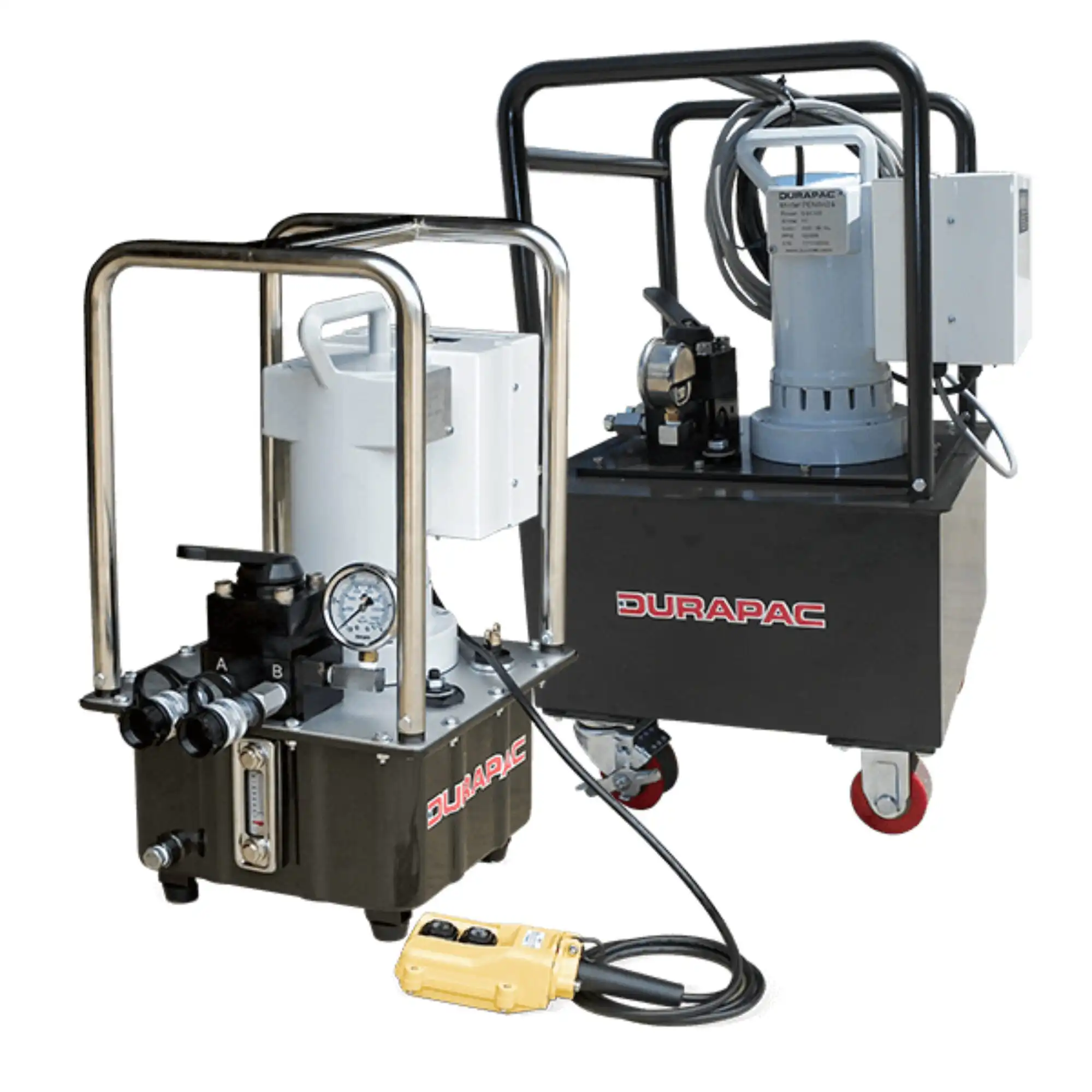

Durapac PEM84series Auto Two Speed Electric Hydraulic Power Unit
The PEM8414 and PEM8424 Electric Hydraulic Power Units provide a flow rate of 10.5 Lpm at pressures of up to 50 bar and 0.9 Lpm at pressures of up to 700 bar. These units are suitable for operating both single and double acting cylinders as well as tools.
More Information
Single-Phase Universal Motor
The power units are powered by a 0.84 kW, 240 Volt/50 Hz, single-phase electric motor.
External Adjustability
Included are externally adjustable pressure relief valves and control valves that can operate single and double-acting cylinders and tools.
Suitable for Tensioning
For tensioning applications, there’s an option featuring a bleed-off needle valve.
Remote Control Pendant
These power units come equipped with a remote pendant sporting a 4-meter cord.
Perfect for On-Site Usage
The single-phase universal motor is specifically designed for on-site usage, especially with generators.
Protective Roll Cage
Each unit is furnished with a roll cage for enhanced portability and protection.
|
Model No.
|
1st Stage Flow Rate (Lpm)
|
2nd Stage Flow Rate (Lpm)
|
1st Stage Pressure Rating (bar)
|
2nd Stage Pressure Rating (bar)
|
Motor kW
|
Voltage (50 Hz)
|
Amps
|
Remote Pendant Function 4 mtr
|
Valve Type (3/8″-NPTF Ports)
|
Usable Oil Cap. (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEM8414^ | 10.5 | 0.9 | 50 | 700 | 0.84 | 240 | 10 | MOTOR ON/OFF | 4w/3p Manual | 7 | 25 | 320 W x 400 L x 565 H |
| PEM8424^ | 10.5 | 0.9 | 50 | 700 | 0.84 | 240 | 10 | MOTOR ON/OFF | 4w/3p Manual | 20 | 41 | 368 W x 490 L x 715 H |
