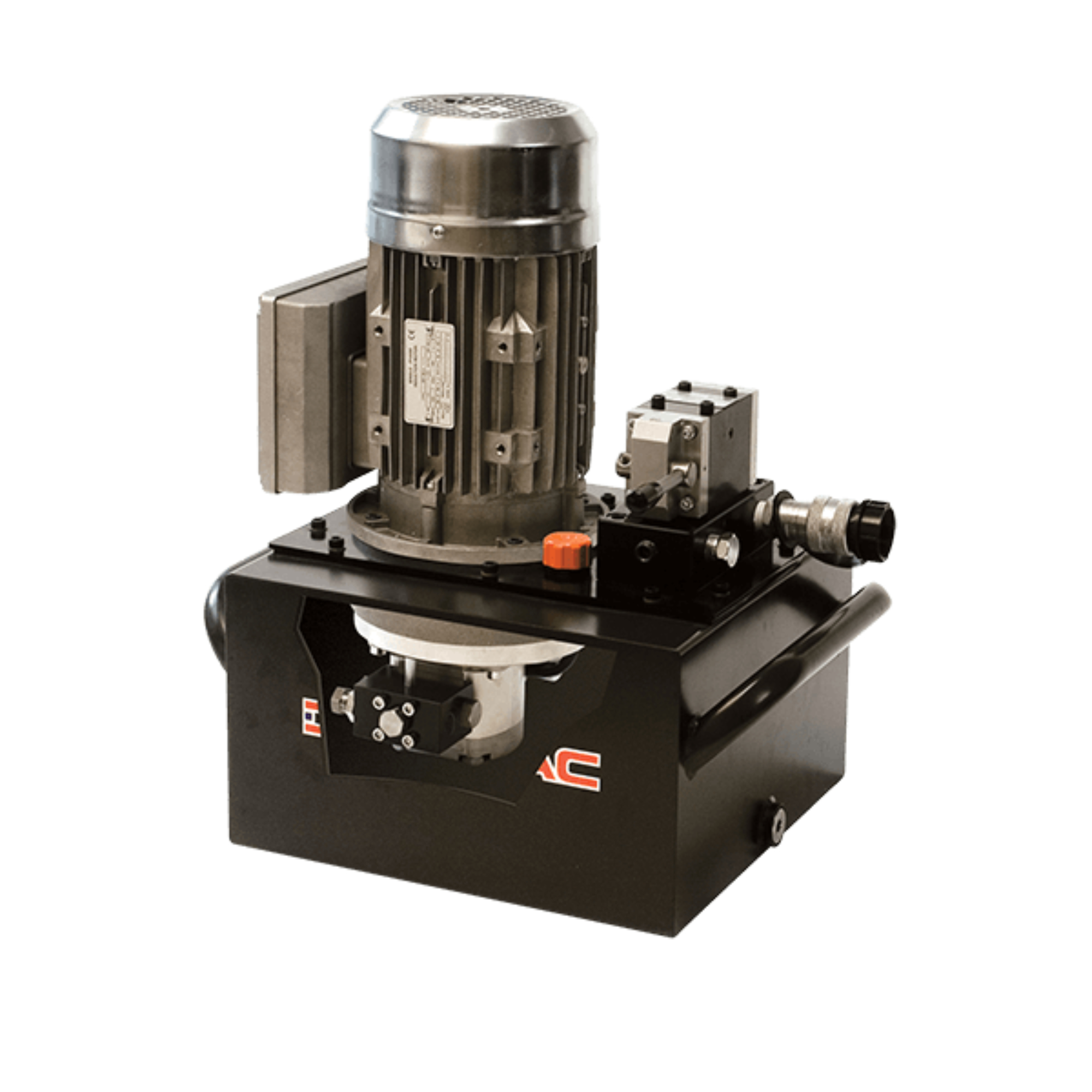

Durapac PEM1524 Electric Hydraulic Power Unit
The PEM1524 Electric Hydraulic Power Unit provides a flow rate of 9.5 Lpm at pressures up to 65 bar and 1.1 Lpm at pressures up to 700 bar.
More Information
Low Pressure Unloading Valve:
The power unit features an integrated low-pressure unloading valve.
Safety Pressure:
Equipped with a safety pressure relief valve set at 700 bars for enhanced safety measures.
Low Pressure Unloading Valve:
The power unit features an integrated low-pressure unloading valve.
Safety Pressure:
Equipped with a safety pressure relief valve set at 700 bars for enhanced safety measures.
Efficient Power:
Driven by a 1.5kW, 240 Volt / 50 Hz single-phase electric motor, ensuring optimal performance.
Pressure Adjustability:
Includes an externally adjustable pressure relief valve for convenient pressure control.
Durable Oil Reservoir:
Constructed with a robust steel oil reservoir, providing strength and durability, complete with an oil level sight gauge.
Remote Control:
Comes with a 4-meter remote pendant for easy electric motor operation, allowing convenient ON/OFF control.
|
Model No.
|
1st Stage Flow Rate (Lpm)
|
2nd Stage Flow Rate (Lpm)
|
1st Stage Pressure Rating (bar)
|
2nd Stage Pressure Rating (bar)
|
Motor kW
|
Voltage (50 Hz)
|
Amps
|
Remote Pendant Function 4 mtr
|
Valve Type (3/8″-NPTF Ports)
|
Usable Oil Cap. (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEM1524 | 9.5 | 1.1 | 65 | 700 | 1.5 | 240 | 8.3 | MOTOR ON/OFF | 4w/3p Manual | 20 | 53 | 300 W x 450 L x 605 H |
