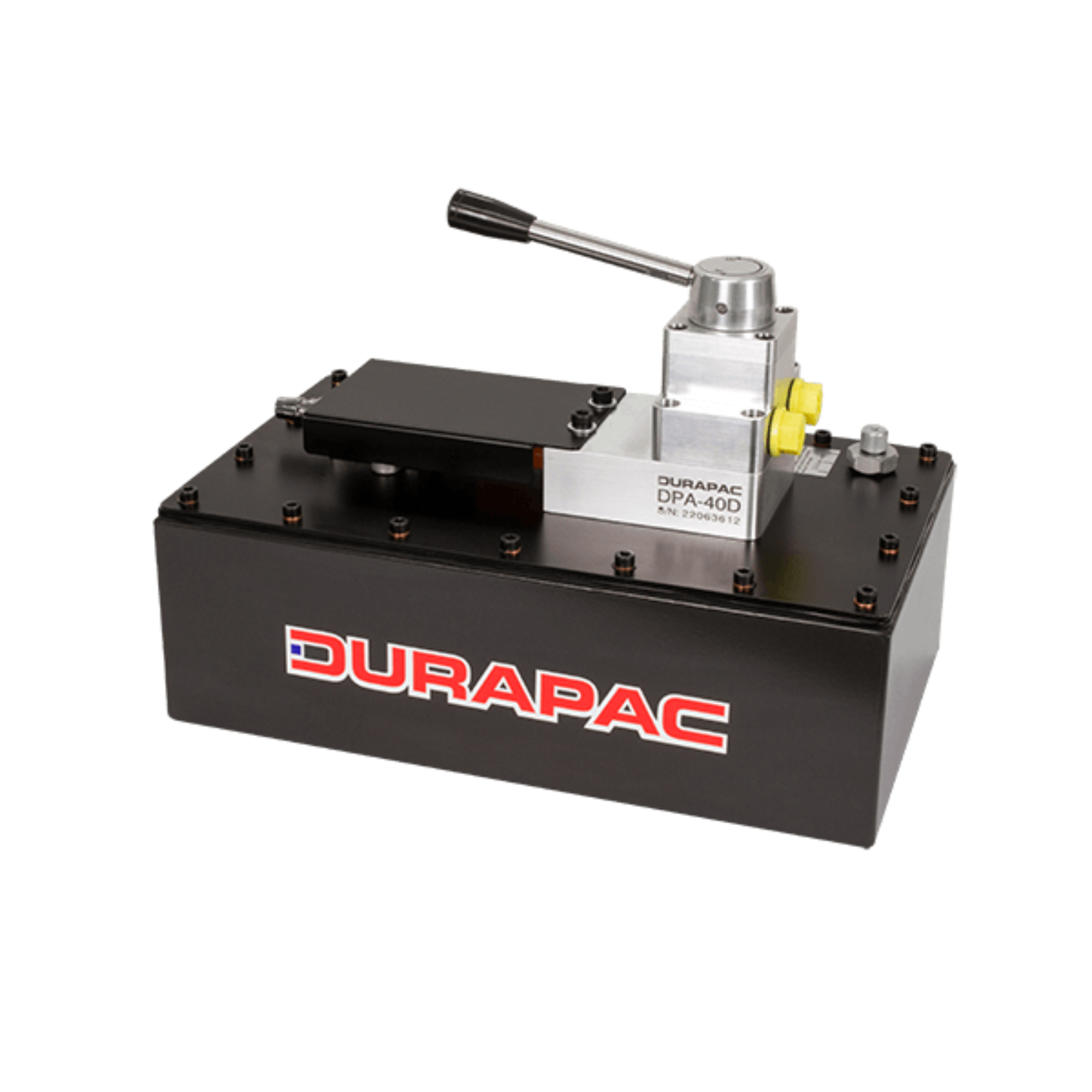

Durapac DPA-40D Air Hydraulic Pump
The DPA-40D Air Hydraulic Pump stands as a reliable and cost-effective power solution for operating small to medium hydraulic cylinders and tools wherever compressed air is accessible. With a maximum working pressure of 700 bar and robust metal oil reservoirs, this model ensures strength and durability. It comes pre-filled with oil, primed for immediate deployment. Equipped with a double-acting mechanism and a 4-way/3-position directional control valve, it offers versatility.
More Information
- Directional Control Valve: A 4 way / 3 position manual directional control valve will operate double acting cylinders.
- Operate from Shop Air: Will operate on an air pressure range of 3-8 bar.
- Strength: A high strength steel oil reservoir.
- 700 Bar Operating Pressure: All models have a maximum working pressure of 700 bar.
- Ready to Go: All pumps are supplied pre-filled with oil and ready for immediate use.
- Support: All models are repairable and spare parts are readily available.
|
Model Number
|
Used with Cylinder
|
Usable Oil Capacity (cc)
|
Pressure Rating (bar)
|
Output Flow Rate (cm 3/min) No load
|
Output Flow Rate (cm 3/min) Load
|
Air Pressure Range (bar)
|
Weight (kg)
|
|---|---|---|---|---|---|---|---|
| DPA-40D | D/A | 3,500 | 700 | 1,220 | 95 | 3 – 8 | 10 |
