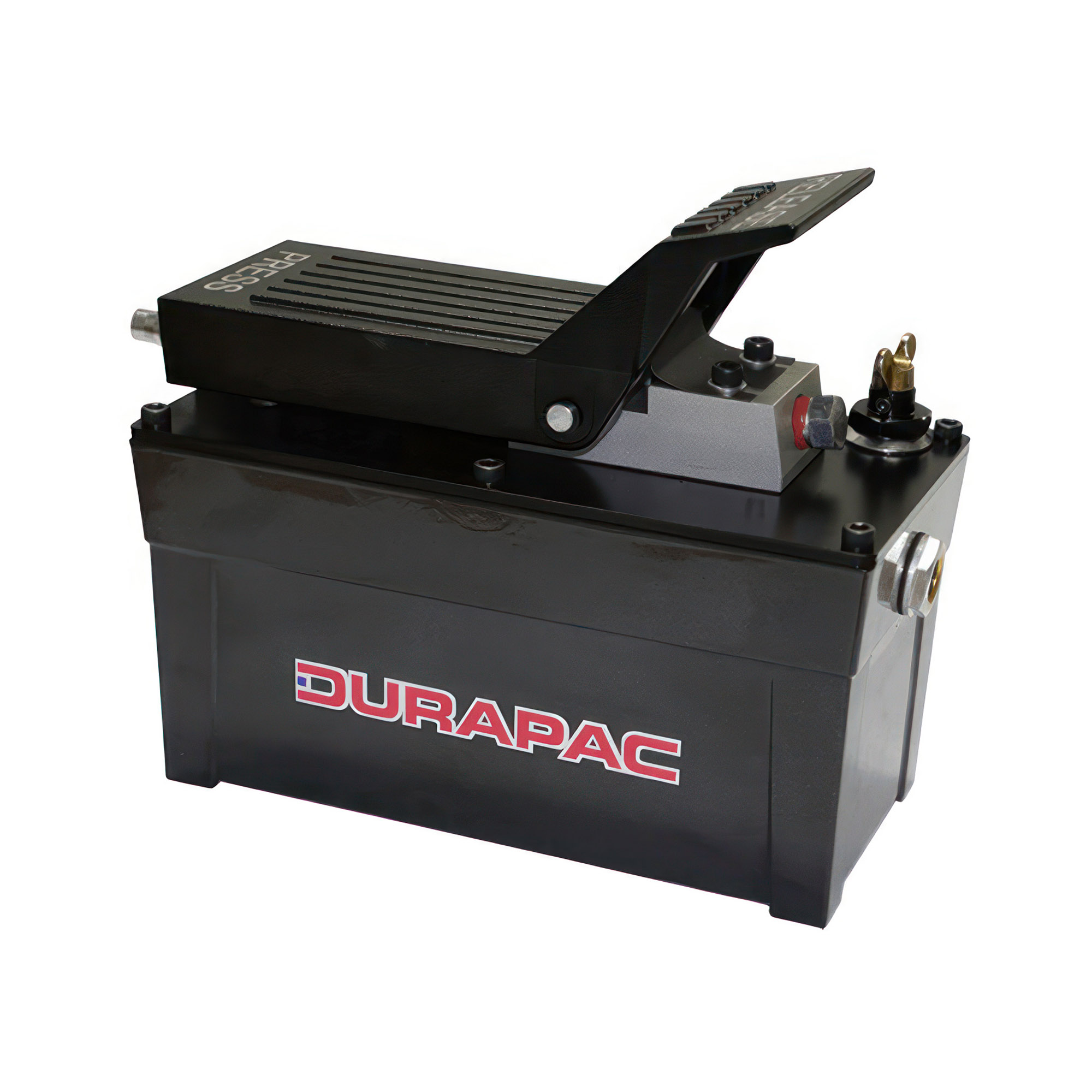

Durapac DPA-18 Air Hydraulic Pump
The distinctive hydraulic circuit of the DPA-18 (1.8L) Air Driven Hydraulic Power Unit enables rapid movement of hydraulic fluid when there’s no load and effortless pumping when under load.
These power units, activated by air, deliver compressed hydraulic fluid to various compatible applications such as cylinders, presses, spreaders, compactors, and crimping machines, wherever a fluid pressure of 700 bars is required.
More Information
Specifications:
Model No: DPA-18
Used with Cylinder: Single-Acting
Usable Oil Capacity (cc): 1,800
Pressure Rating (bar): 700
Output Flow Rate (cm 3/min) No Load: 1,240
Output Flow Rate (cm 3/min) Load: 160
Air Pressure Range (bar): 4-12
Weight (kg): 8.2
Product Features:
Advance/Hold/Retract Functions – A 3 position treadle with advance/hold/retract functions
Hand or Foot Operation – Treadle may be operated by hand or foot for greater versatility
Release Detent Function – Release detent function enhances productivity
700 Bar Operating Pressure – All models have a maximum working pressure of 700 bar
Ready to Go – All pumps are supplied pre-filled with oil and ready for immediate use
Convenient Carry Handle – A convenient carry handle is built into the treadle
