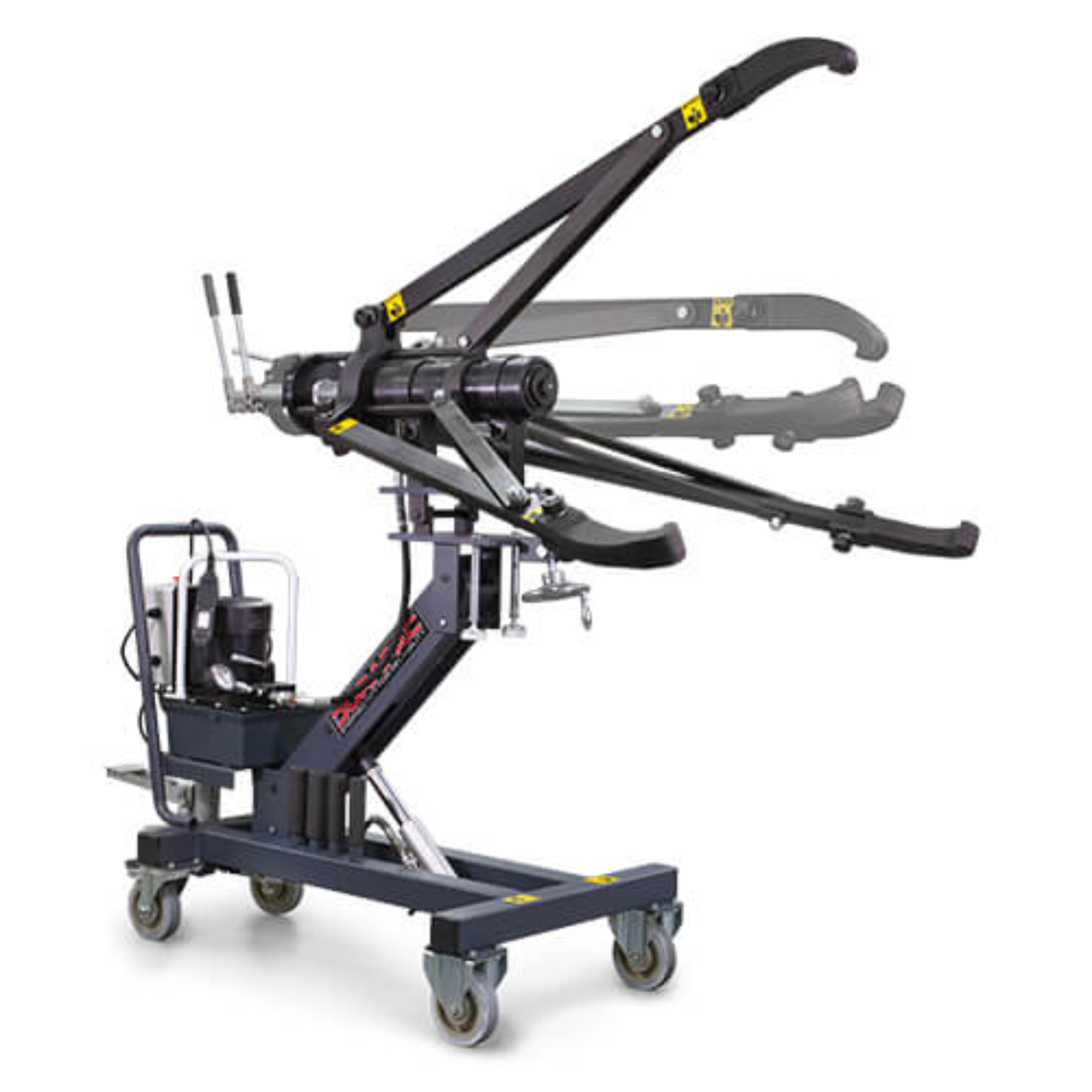

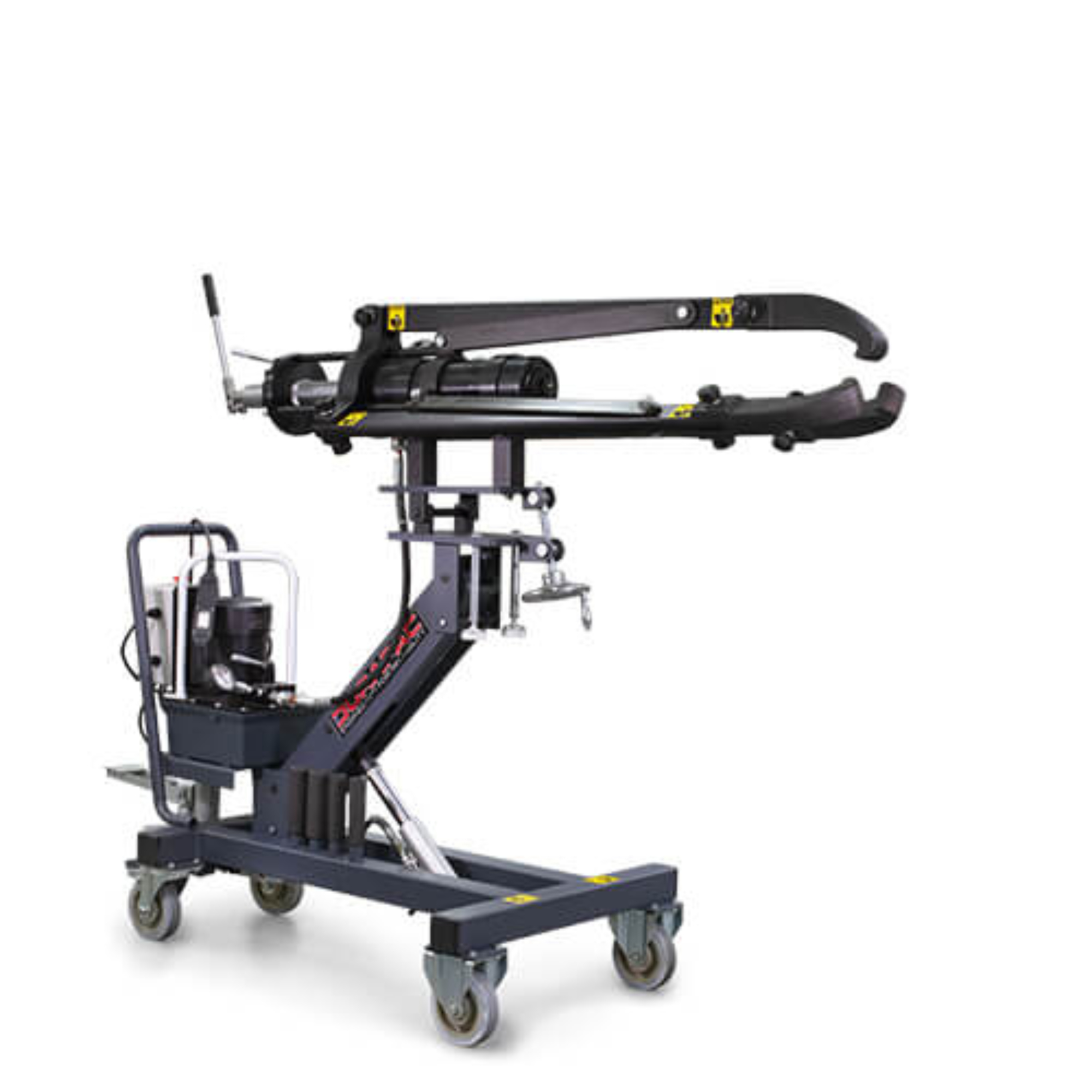

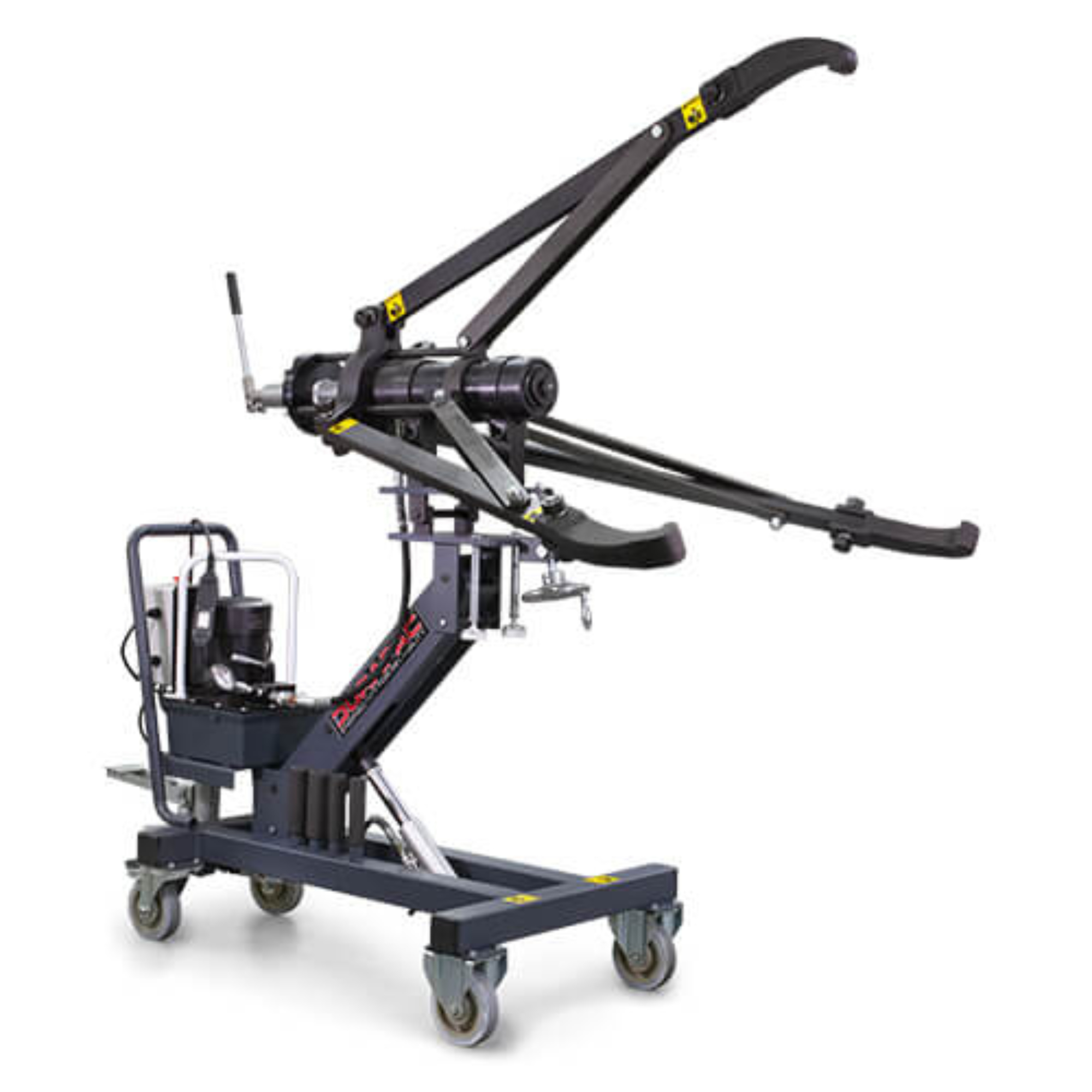

Durapac DHP-50 50 Ton Hydraulic Puller
The DHP-50E 50 Ton Hydraulic Puller utilizes a dual-acting hydraulic mechanism for the operation of holding, opening, and closing jaws, ensuring a consistently safe and reliable grip. It features a foot-operated hydraulic lifting system for convenience.
More Information
- Foot-operated hydraulic lifting system.
- Flow metering system provides constant lowering speed.
- Double-acting hydraulic system for holding, opening & closing jaws provides safe and secure grip at all times.
- Self-centring design keeps puller jaws clamped evenly on the work piece.
- Easy jaw head adjusting system prevents puller jaws from sliding.
- Puller can be assembled in 2 or 3 jaw configuration.
- Castors provide easy cart movement.
- Includes 230VAC electric pump & three extensions.
|
Model
No. |
Stroke (mm)
|
Pull Capacity (ton)
|
Max. Spread (mm)
|
Reach at Min. Spread (mm)
|
Reach at Max. Spread (mm)
|
Weight
(kg) |
|---|---|---|---|---|---|---|
| DHP-50E | 330 | 50 | 1,250 | 900 | 952 | 391 |
