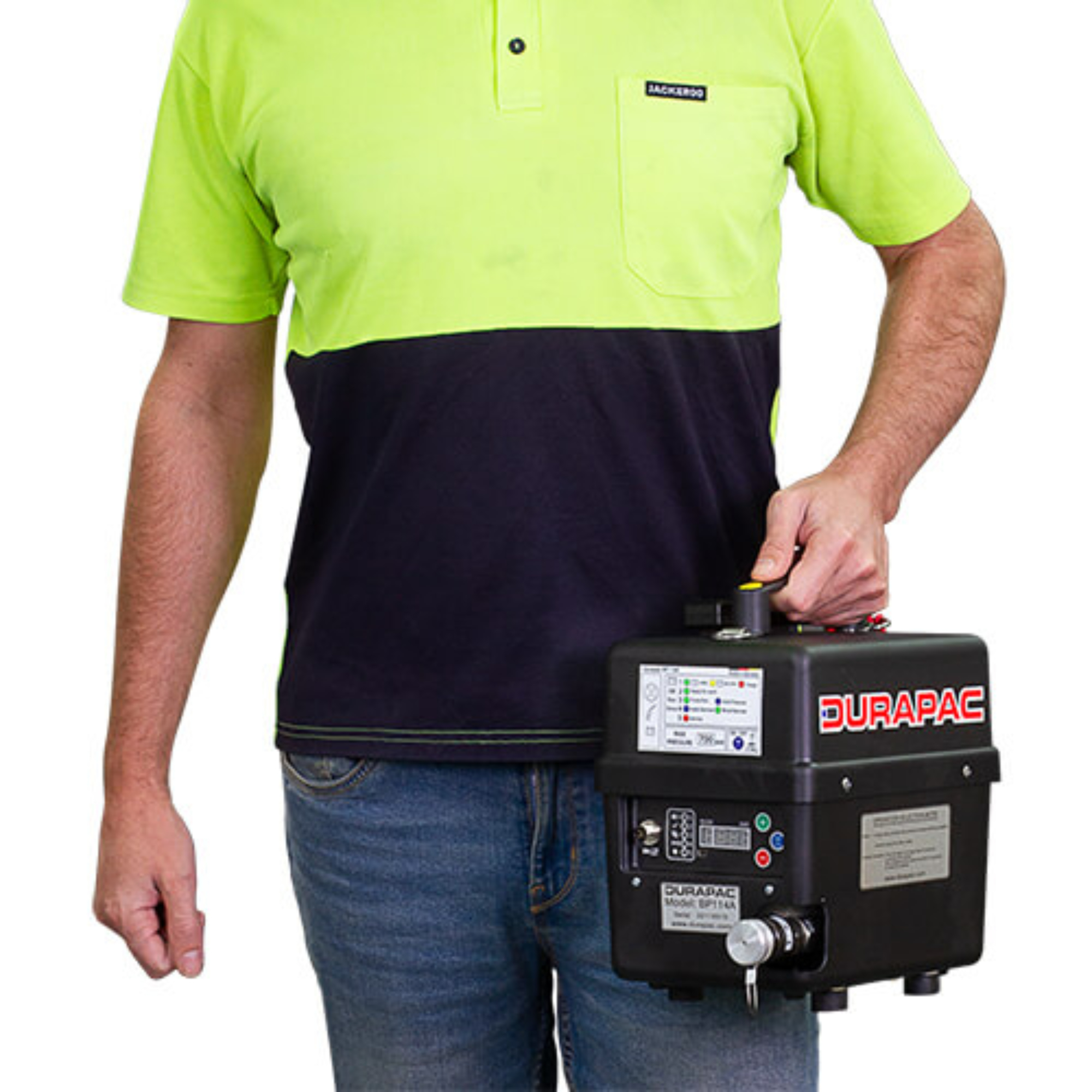

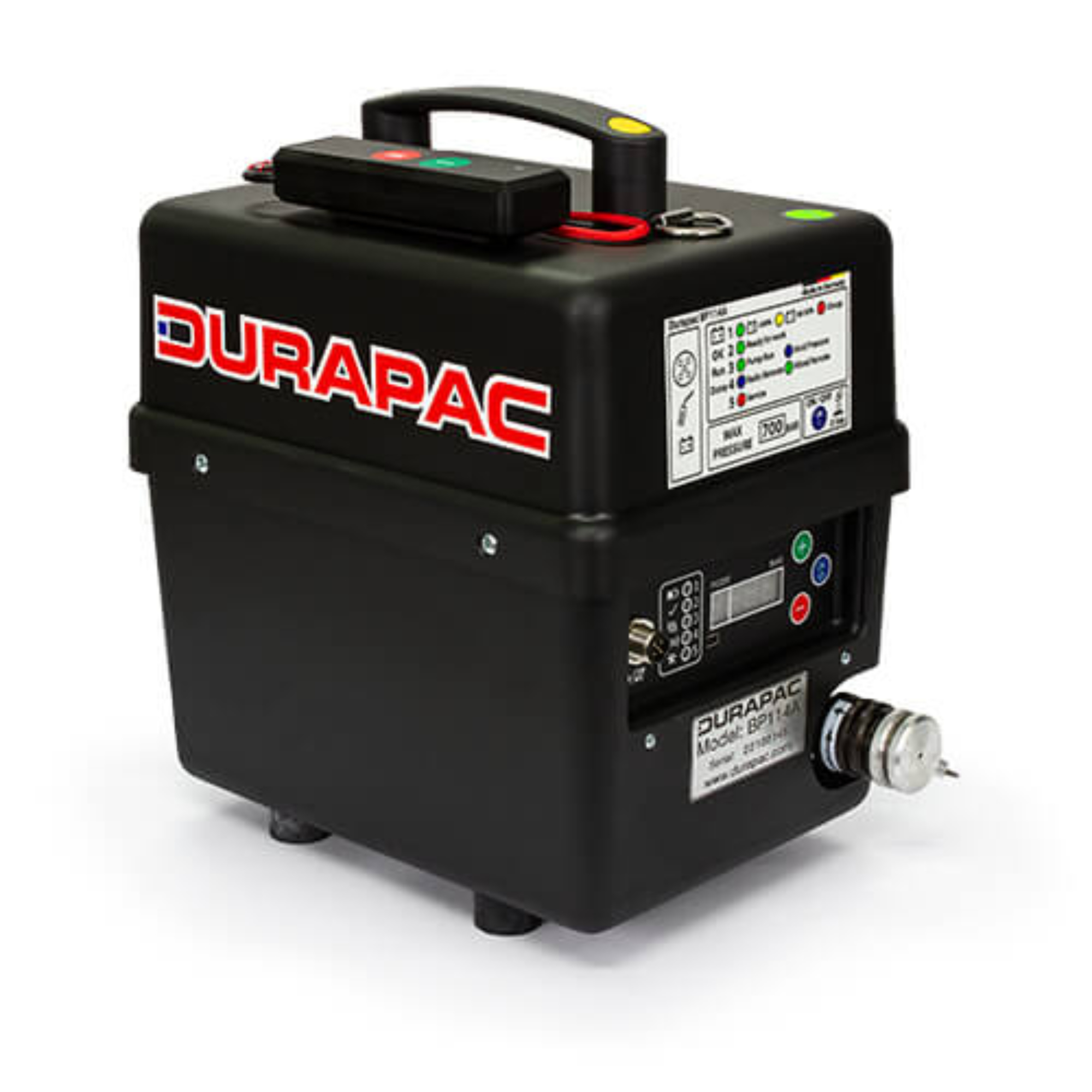

Durapac BP114A Battery Hydraulic Pump
The BP114A Battery Hydraulic Power Unit is equipped with a robust 50.4 VDC high-capacity lithium-ion internal battery. Each unit comes with a wireless remote control and can power a variety of single-acting 700 bar hydraulic tools and cylinders.
More Information
Bluetooth Wireless Operation:
Each unit comes equipped with a Bluetooth-enabled wireless remote control, along with a wired remote control for added convenience.
High-Powered Performance:
Featuring an internally installed 50.4 VDC, 7,830 mAh lithium-ion battery, delivering both power and efficiency.
Digital Display Convenience:
An onboard digital display conveniently showcases pump mode and pressure information.
Safety Assurance:
Both electronic and mechanical pressure safety valves are incorporated to enhance safety measures. Users can easily adjust pressure settings as needed.
Efficient Charging:
Includes a 110/230 Volt plug-in external charger with each unit for fast and efficient charging.
Robust Construction:
Built with a rugged and durable plastic housing, complete with a carry handle for easy portability. Hydraulic coupling, control buttons, and plug connectors are thoughtfully protected for longevity.
| Pump Type | Single-stage three-cylinder radial piston pump |
| Pump Outlets | 1 |
| Oil Flow | 0.42 – 1.02 L / min. (nominal) |
| Max. Oil Volume (approx.) | 1,400 cc |
| Usable Oil Volume (approx.) | 1,000 cc |
| Maximum Pressure | 700 bar |
| Oil Type | Durapac Hydraulic Oil (DHO-10L) |
| Drive | DC motor 60 volts |
| Motor Peak Power | 1,400 Watts |
| Battery Capacity | 6.3 Ah – (max 67 V) |
| Dimensions W x L x H (approx.) | 185 x 250 x 270 mm |
| Weight (approx.) | 7.15 kg |
| Power Supply Unit | primarily 230 V ~, secondary 60 V, 3 A |
| Max. Operating Conditions | -20 ° C to + 40 ° C |
| Environmental Conditions | 0 to 100% rel. humidity |
| Degree of Protection According to EN 60529 | IP23 |
| Operating Mode Intermittent Operation | 30% ED |
