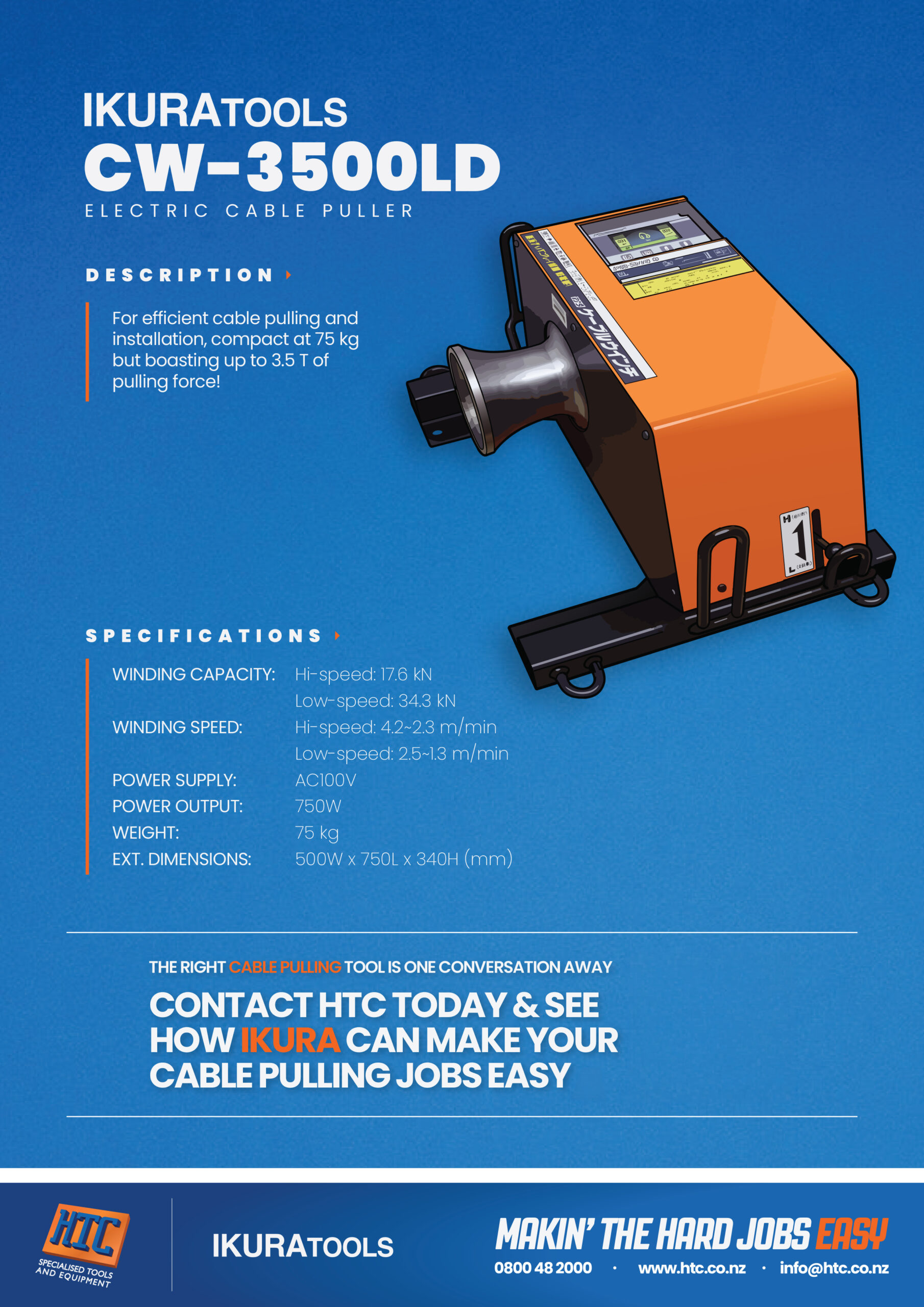

Ikura CW-3500LD Cable Winch | Up to 34.3kN of winding capacity
High-Performance Cable Pulling for Utility and Industrial Applications
The CW-3500LD Cable Winch is a robust, electrically powered cable pulling solution designed for utility contractors, electrical installers, telecommunications crews, and infrastructure projects requiring safe, controlled cable installation.
Featuring a large full-colour LCD display, adjustable winding speeds, and integrated load preset and reverse prevention mechanisms, the CW-3500LD provides operators with enhanced visibility, control, and safety during demanding cable pulling operations.
Built for reliability in the field, the CW-3500LD combines powerful pulling performance with user-friendly operation, making it an ideal solution for underground cable installation, conduit work, utility maintenance, and industrial cable deployment projects.
Additional Information
More Information
Full-Colour LCD Display
The high-brightness LCD screen provides clear visibility of operating parameters, even in challenging site conditions. Operators can easily monitor winching performance and system settings in real time.
Adjustable Winding Speeds
Selectable high and low-speed settings allow crews to optimise pulling performance based on cable type, installation requirements, and site conditions.
Load Preset Function
The integrated load preset mechanism helps maintain safe operating parameters and protects both the equipment and installed cable from excessive loading.
Reverse Prevention System
Built-in reverse prevention technology improves operational safety and reduces the risk of accidental cable movement during installation.
Compact Mobile Design
Despite its powerful capabilities, the CW-3500LD remains compact and portable, allowing easy transportation between work sites.
| Specification | Details |
|---|---|
| Model | CW-3500LD |
| Rated Load | 75kg |
| Winding Capacity (High) | 17.6kN |
| Winding Capacity (Low) | 34.3kN |
| Winding Speed (High) | 4.2 – 2.2 m/min |
| Winding Speed (Low) | 2.5 – 1.3 m/min |
| Power Supply | AC100V, 50/60Hz |
| Motor Output | 750W |
| Dimensions | W500 x L750 x H340 mm |
| Weight | 75kg |
| Standard Accessories | Foot Switch (2m Cord) |
Designed for Safe Cable Installation
Cable pulling operations place significant loads on both equipment and installed infrastructure. The CW-3500LD has been engineered with operator safety and cable protection in mind through its load monitoring capabilities, preset load functions, and reverse prevention technology.
These features help reduce the risk of cable damage while providing installers with greater confidence throughout the pulling process.
| Feature | Manual Cable Pulling | Capstan Winch | CW-3500LD Cable Winch | Hydraulic Cable Puller |
|---|---|---|---|---|
| Best For | Short cable runs | Medium cable installations | Electrical & utility cable installation | Large transmission projects |
| Pulling Force | Low | Medium | High, controlled output | Very High |
| Speed Control | ✗ | Basic | ✓ Adjustable high & low speeds | ✓ |
| Load Monitoring | ✗ | Limited | ✓ LCD Display | ✓ |
| Preset Load Protection | ✗ | ✗ | ✓ | ✓ |
| Reverse Prevention | ✗ | Some models | ✓ Standard | Usually |
| Operator Fatigue | High | Medium | Low | Low |
| Portability | Excellent | Good | Excellent (75kg compact unit) | Poor |
| Typical Setup Time | Very Low | Medium | Low | High |
| Best Value For | Small jobs | General contracting | Professional contractors & utilities | Large infrastructure |
Why Choose HTC?
For over 40 years, HTC has supplied specialised tooling and equipment to New Zealand’s electrical, utility, civil, and industrial sectors.
When you purchase from HTC, you gain access to:
- Technical product expertise
- Nationwide support
- Equipment servicing capability
- Calibration services
- Hire fleet solutions
- Fast nationwide delivery
Our team can help determine whether the CW-3500LD is the right cable pulling solution for your application.
