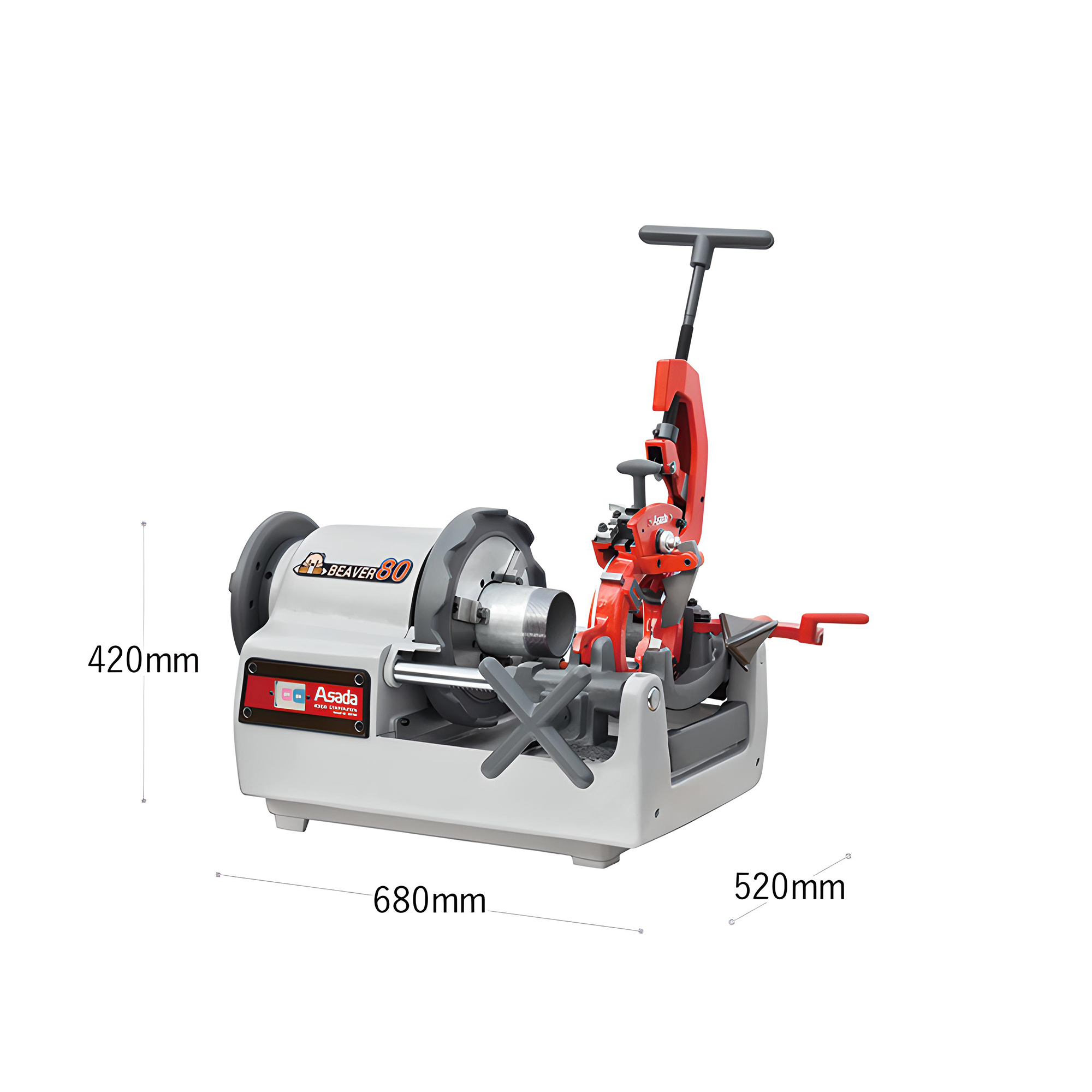

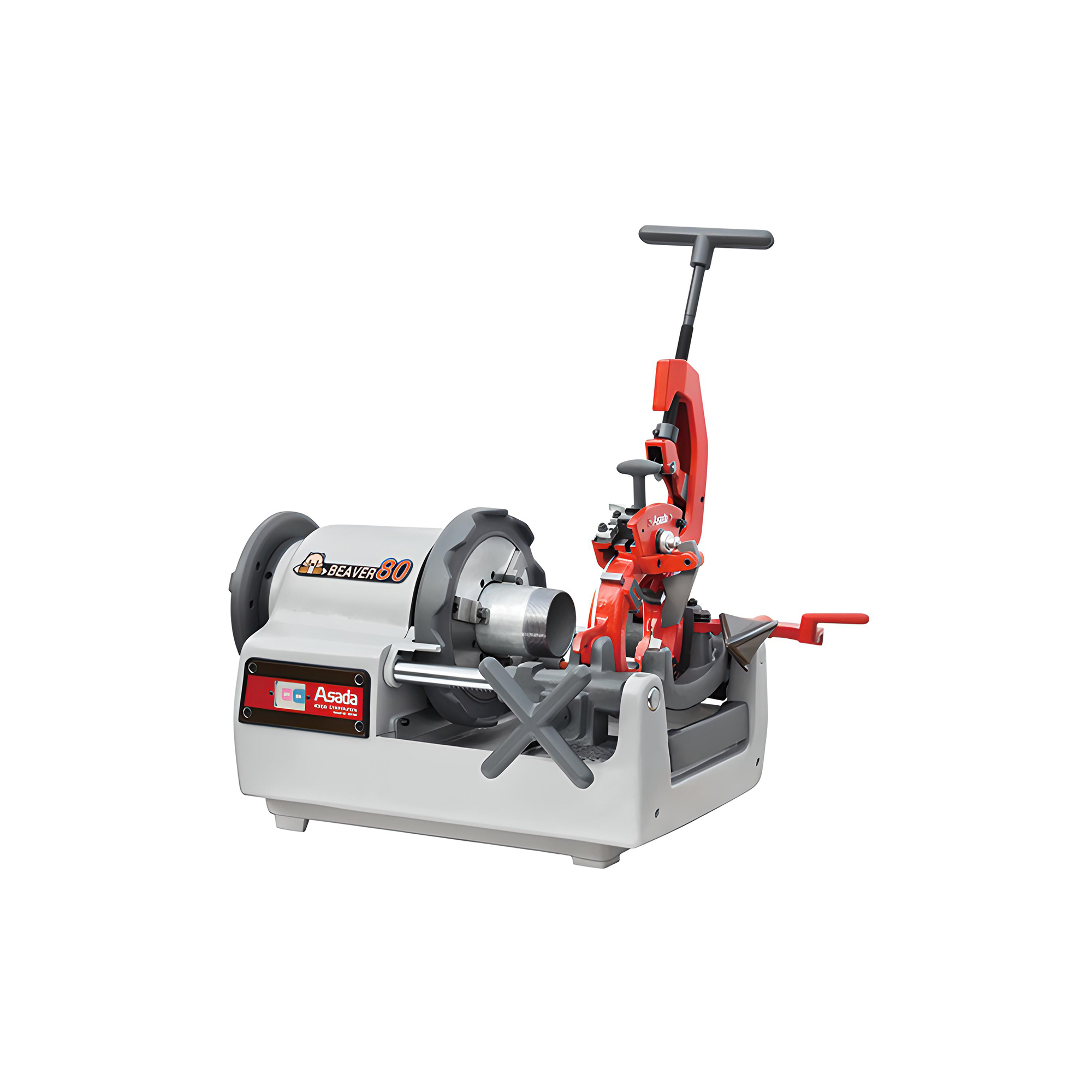

Asada Beaver 80

Japanese made threading machines designed to give accurate threads for common pipe and bolt/rod applications.

BSPT, NPT, BSW, UNC, UNF, Conduit and Metric threads possible in such materials as stainless, high tensile, galvanised and mild steels

More Information


Capacity: ¼”” – 3″” pipe threads
Spindle speed: 33 rpm
Motor: 240V 1140W
Weight: 74kg

All machines supplied as standard with all dies & dieheads from 1/2” BSPT up to capacity, cutter, reamer, threading oil and tubular legs.

Dieheads and dies for 1/4” – 3/8” BSPT, NPT, Conduit and all bolt sizes are available as optional extras.


Accurate threading
Die-head with automatic profiling system and high durable dies.

Slip-free chucking
Easy-to-grip outer ring and wider jaws grab material firmly.

High power motor
Motor rotation is hard to drop even under poor electric condition.

Superior sharpness & durability
Cutter & reamer blade are designed with most suitable shape.

High durability spindle
Supported by high precision ball bearing.

Stable oil supply
High capacity pump maintains sufficient oil flow even at low rotation.
