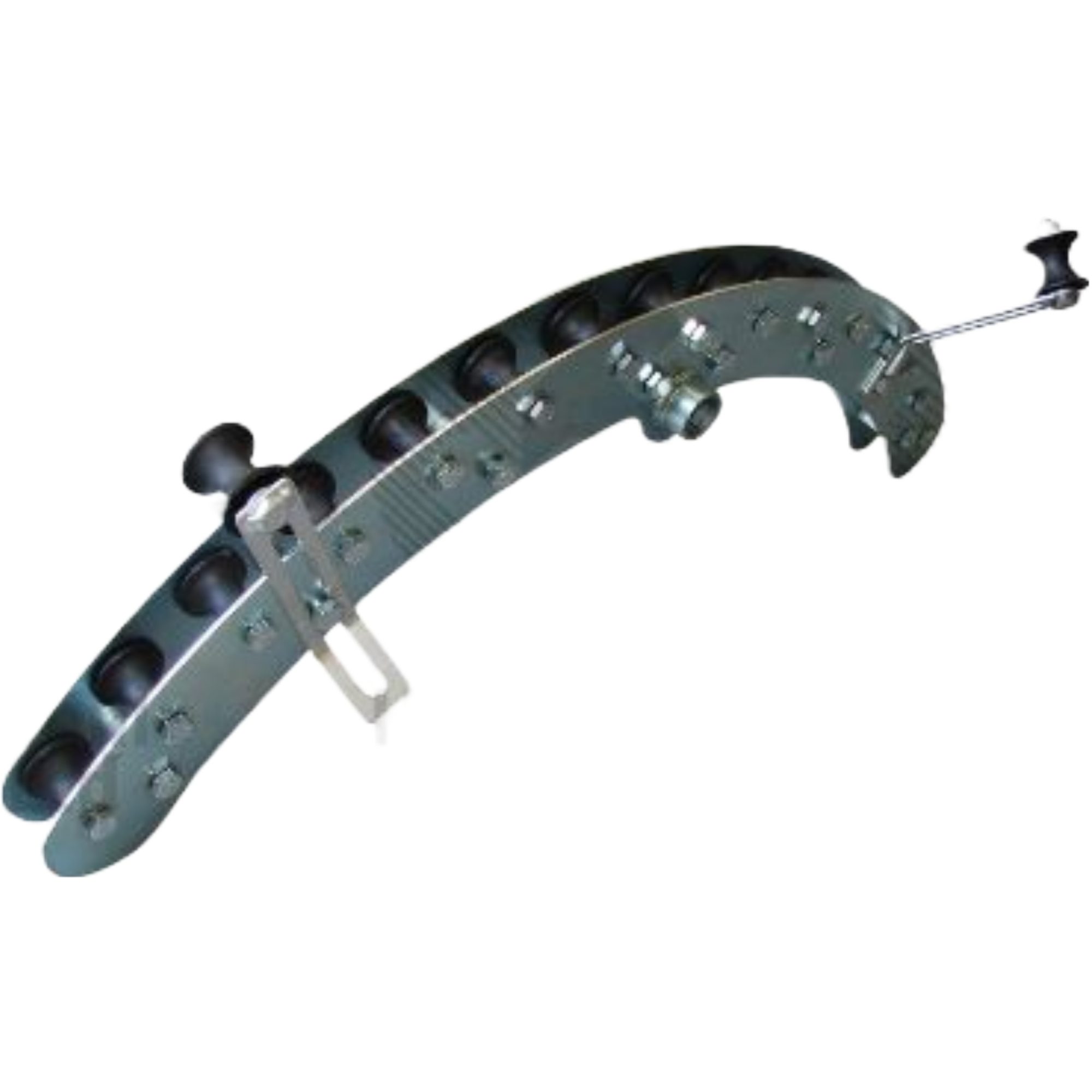

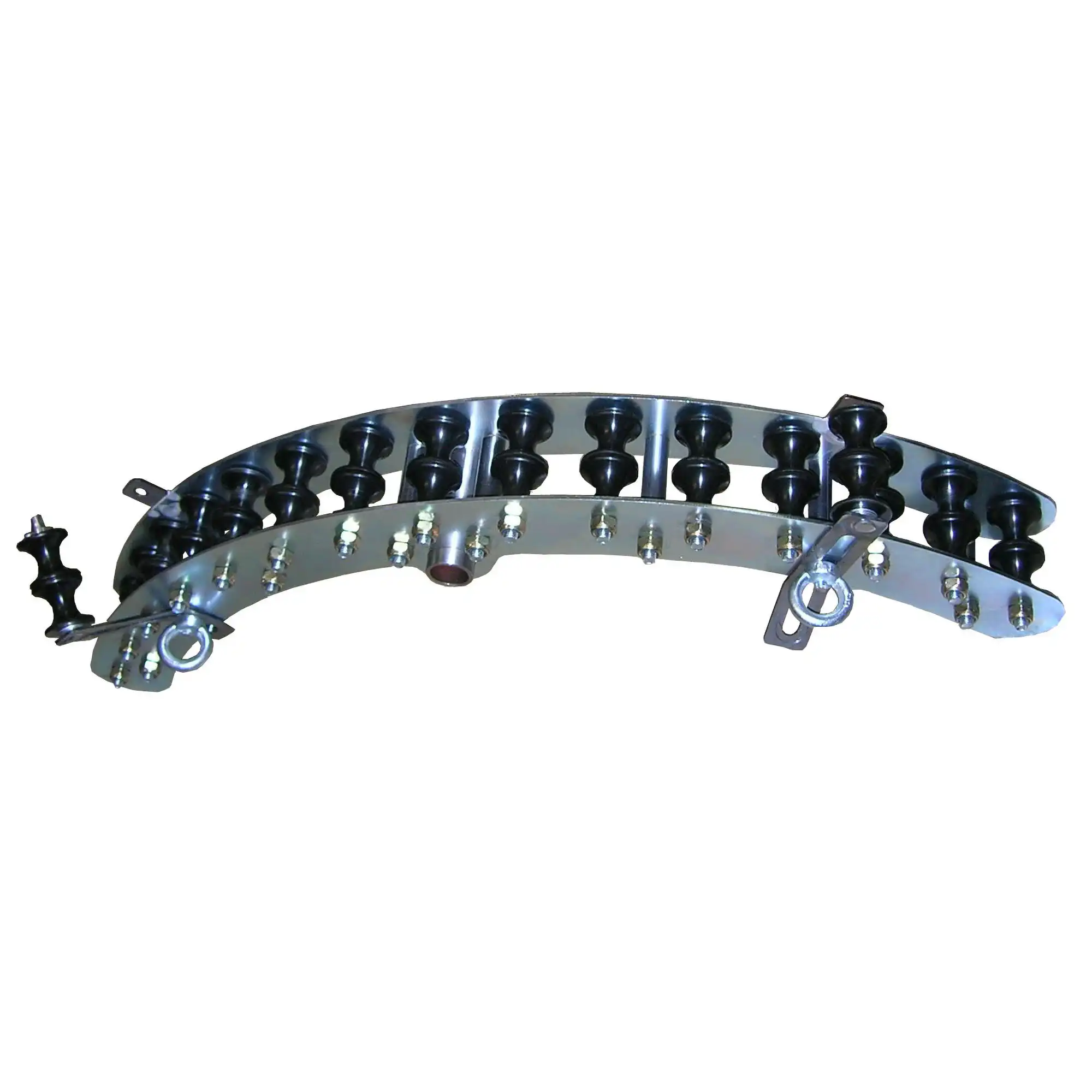

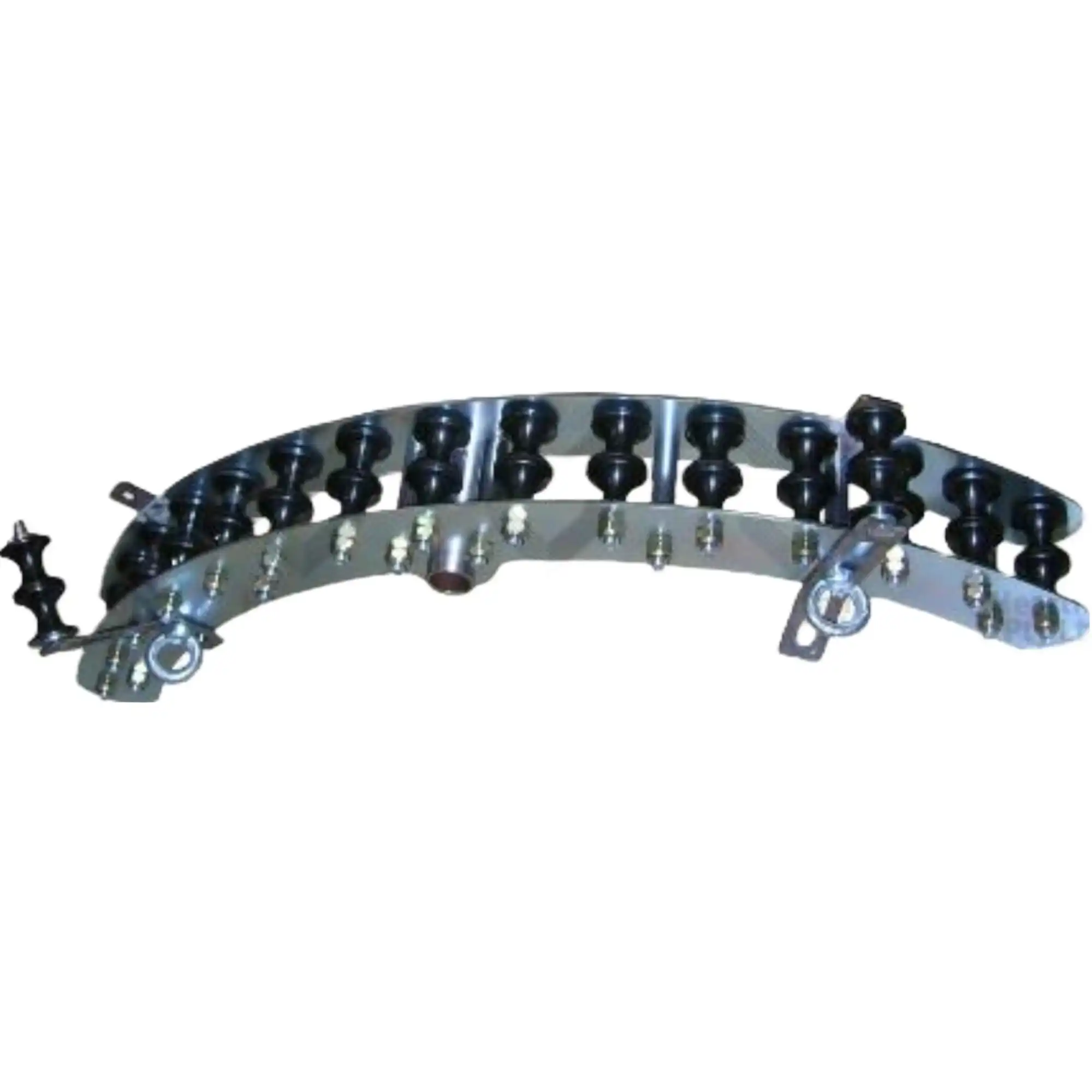

Aerial Fibre Guide for 90 Degree Bends

The AFG90-X Aerial Fibre Guide is a power pole mounted roller, available in either a single or double row of rollers.

  • Additional rows are available upon request.
  • The AFG-90 has a set bending radius of 470mm and is assembled with polypropylene rollers. Each unit features 2 top rollers to lock the cable in place during service.
  • The AFG90-X is designed for 90° bends with X being the number of rows of rollers.
  • Suit cables up to 35mm in diameter.
  • Framework is Chrome zinc plated.
