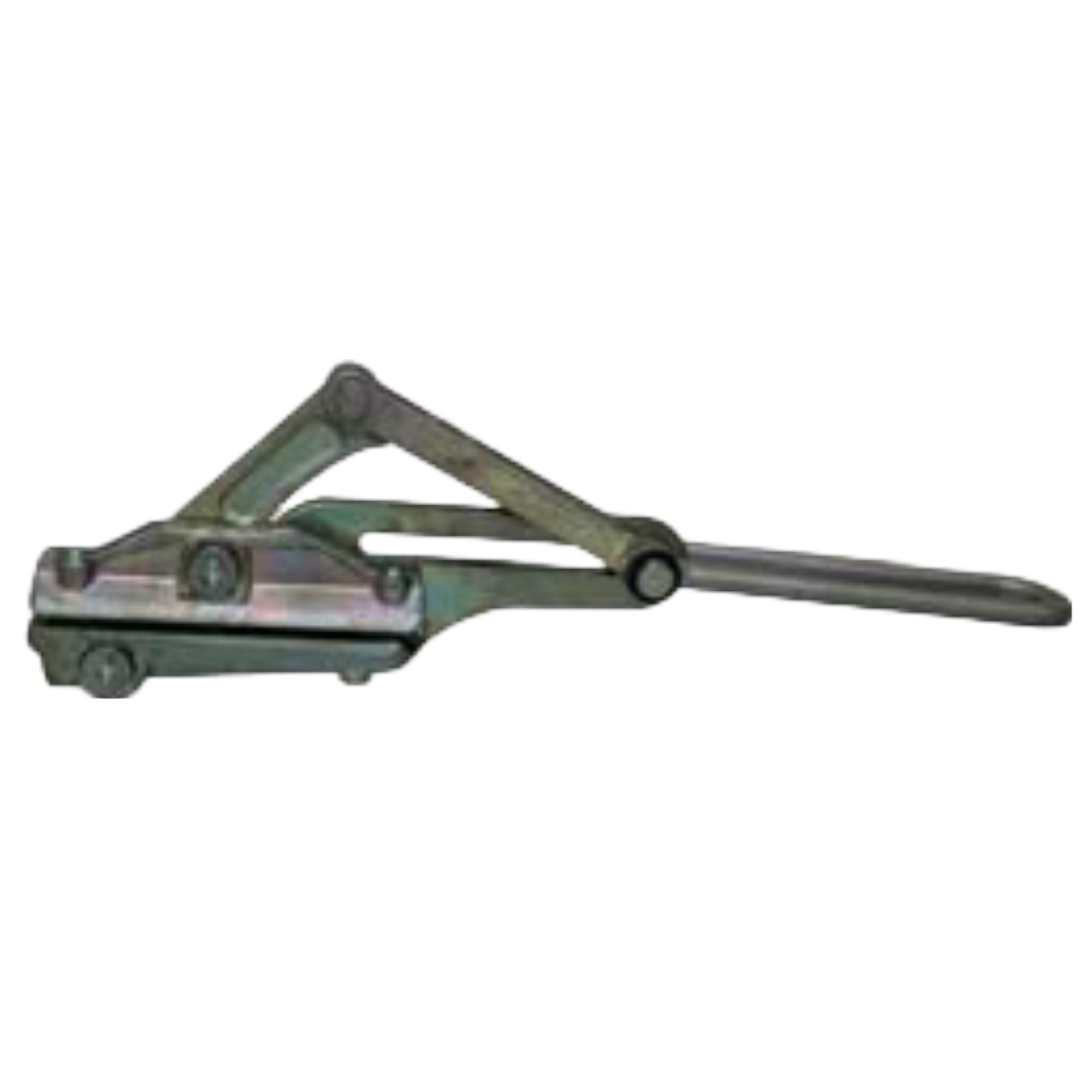

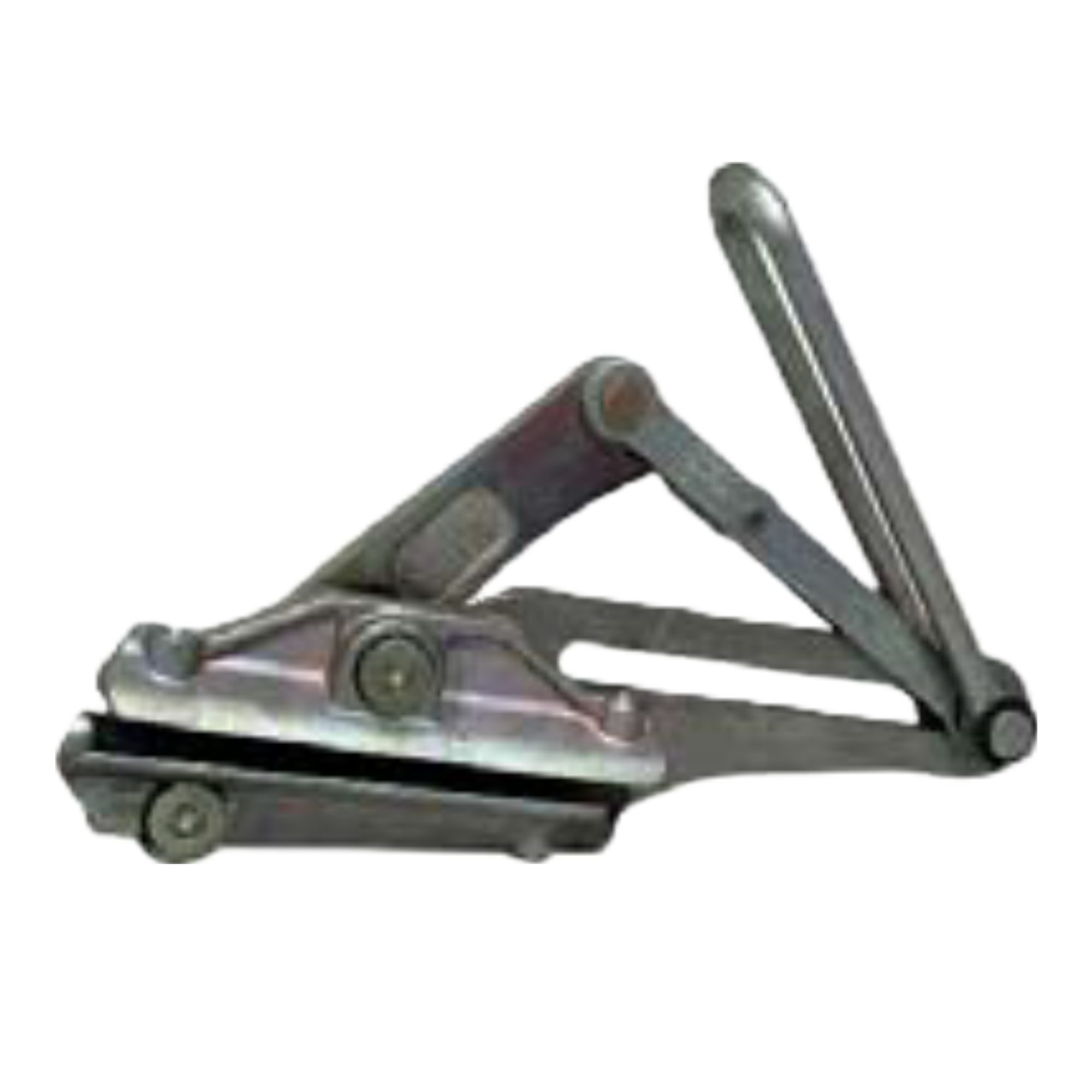

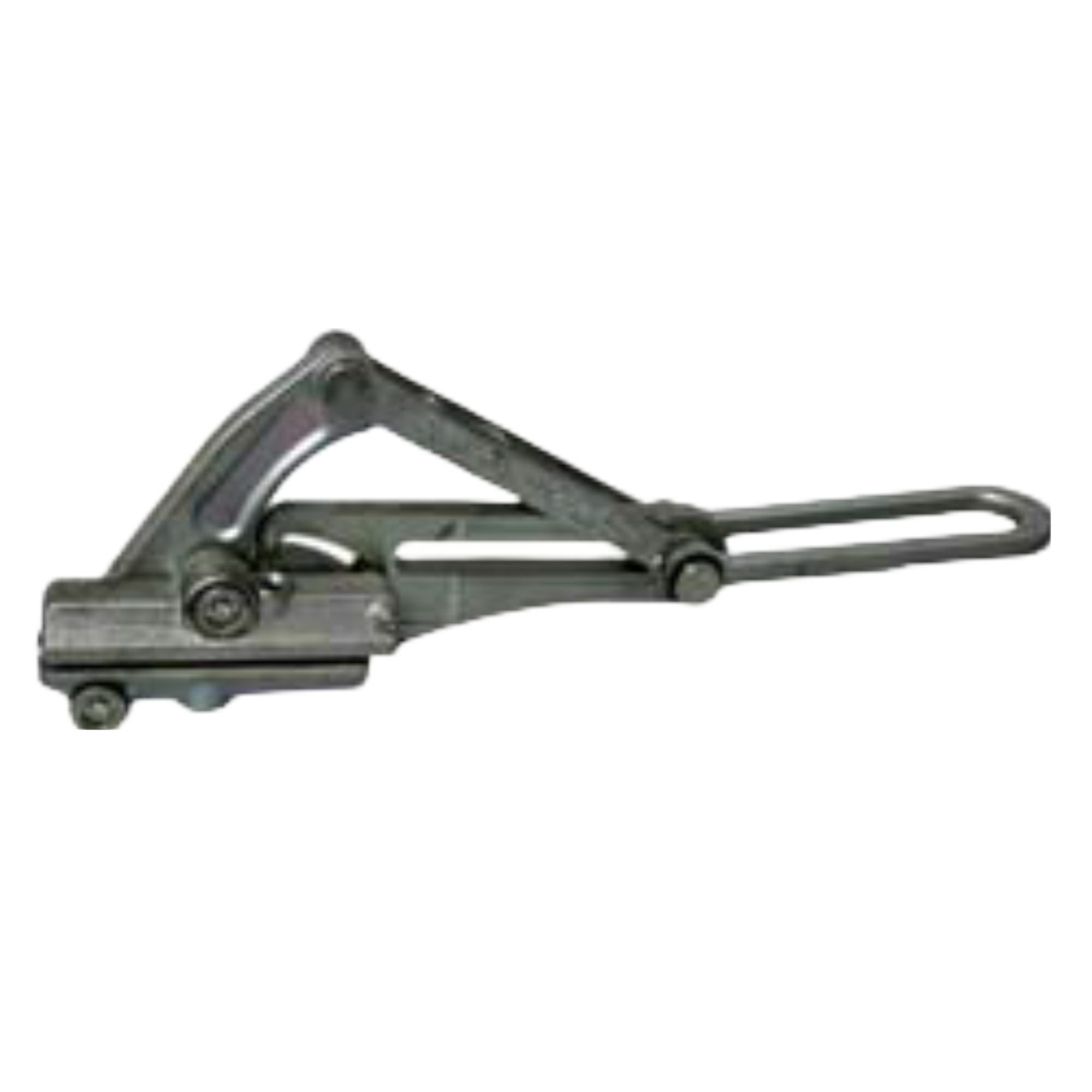

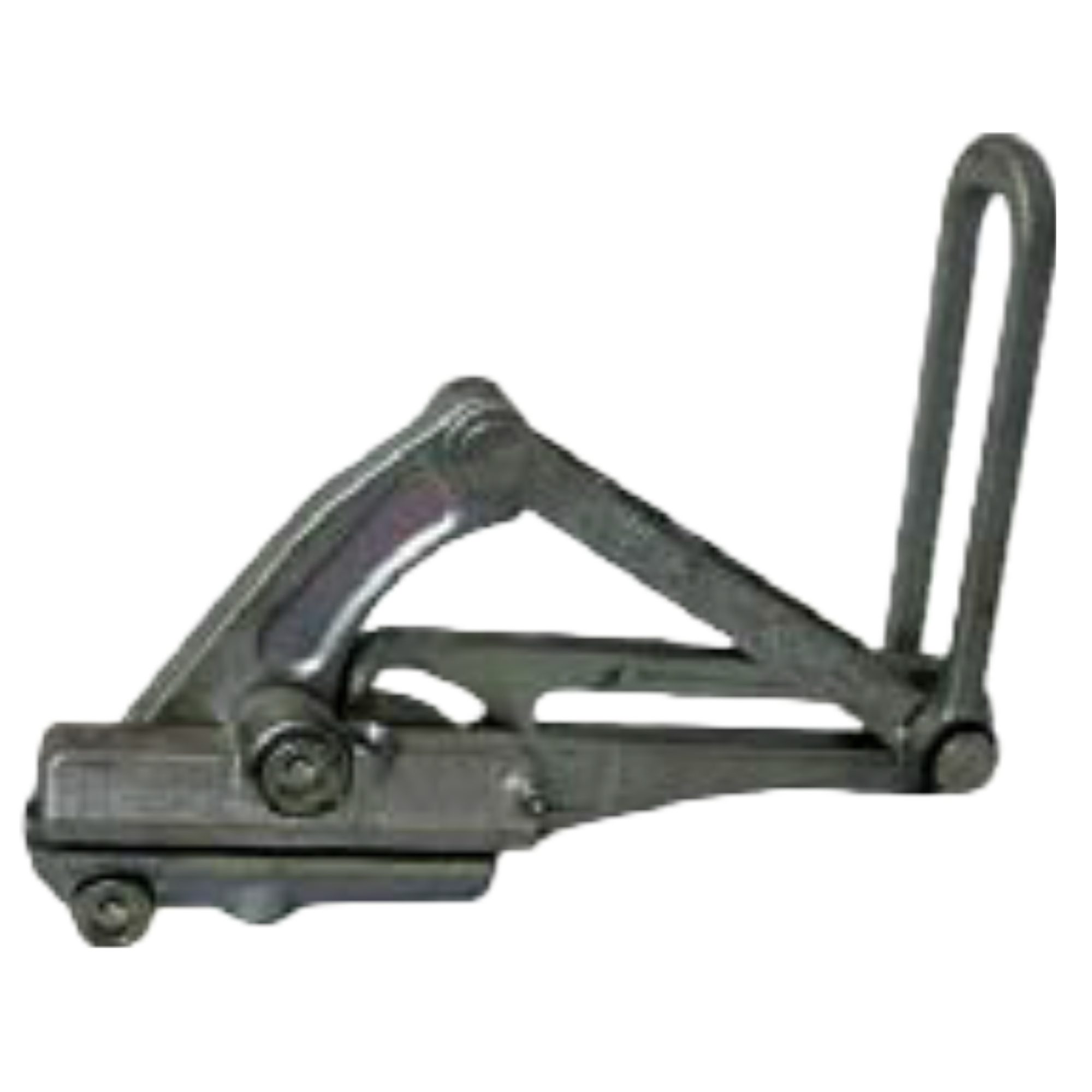

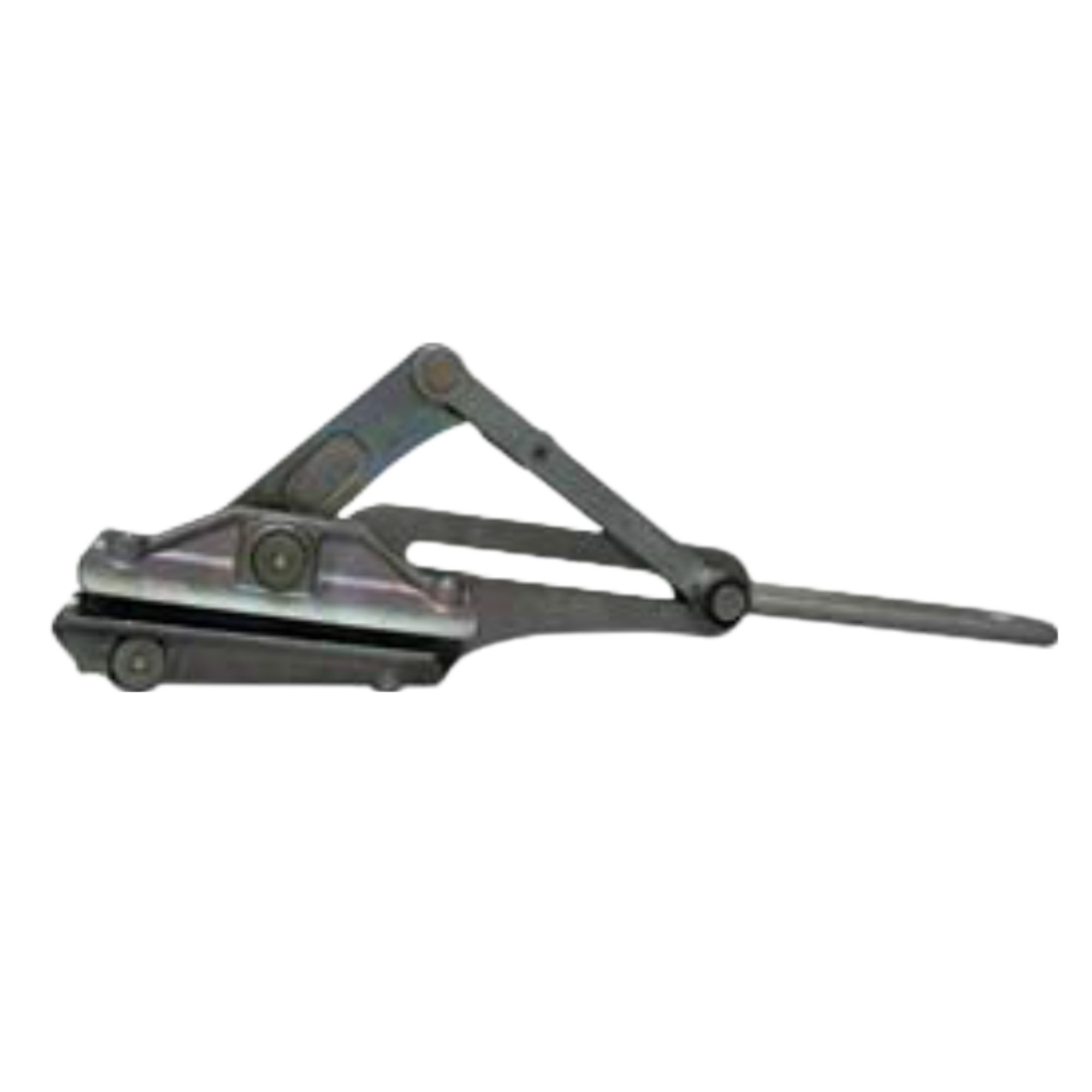

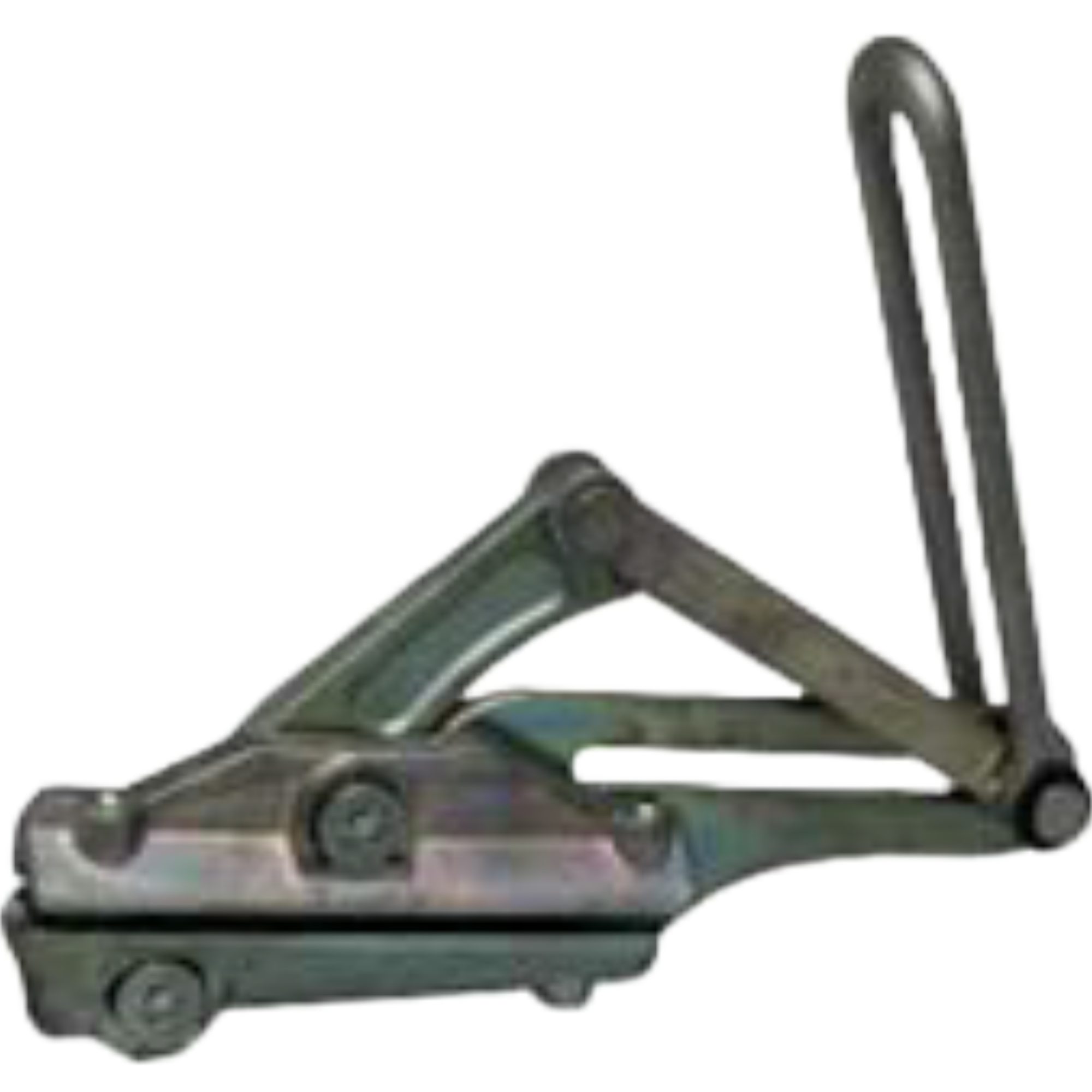

400 Conductor Self-Gripping Clamps

Suitable for A.C – AAC – ACSR and copper conductors.
Made of hot forged, heat treated, and cadmium plated high tensile alloy steel.
A complete range of interchangeable aluminum liners allows the clamp to fit the exact conductor diameter.
Each model of Clamp is suitable for a wide range of conductors, therefore, the same clamp can be used for
different projects only by replacing aluminum liners.
NOTE: Upon placing the purchase order, please specify Conductor’s overall diameter

Categories: , Brand:
Enquire Now
Save or Print Page

More Information

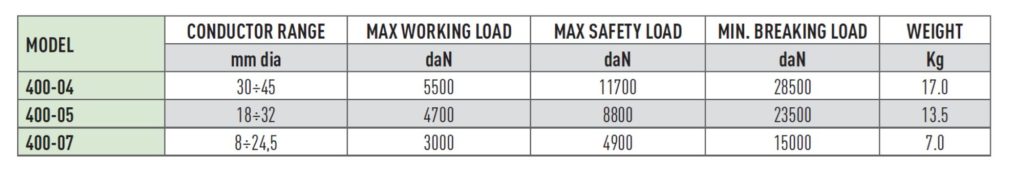

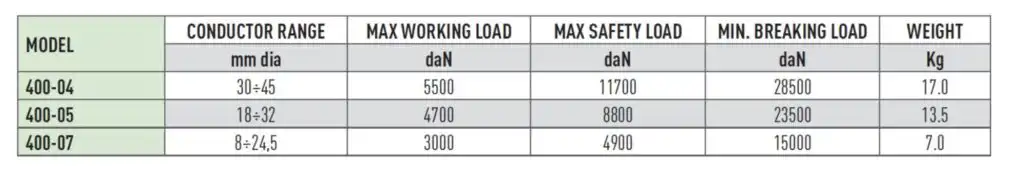

Models 400/04, 400/05, and 400/7, see additional information for liner sizes
