TC26 Chain Cutter

TC26 Chain Cutter

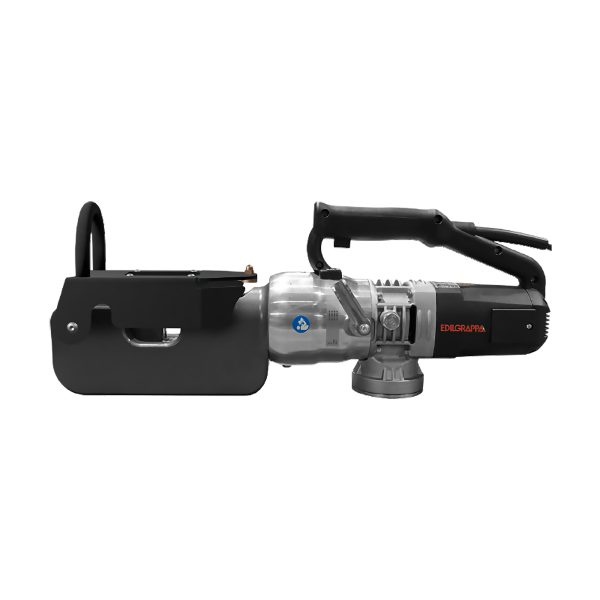

The TC26M Hydraulic Chain Cutter (TC26 Chain Cutter) is an electro-hydraulic tool produced by Edilgrappa, that is ideal for cutting chains with different diameters.
Its small size makes the TC26M a very useful Hydraulic Chain Cutter when working in small and complicated spaces, where portable tools are needed.
TC26M is the ideal Hydraulic Chain Cutter for building and industrial works.

The hydraulic functioning of the TC26M is provided by the electric power supply, which guarantees easy handling.

The TC26M is equipped with an anti-jamming release lever.

Made in Italy

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

TC26M Hydraulic Chain Cutter (TC26 Chain Cutter)



Cutting capacity ø 26 mm (Grade 40)
ø 16 mm (Grade 120)
Cutting force 312 kN (31.8 t)
Working pressure 55 Mpa (550 bar)
Power supply Main
Motor 230V: 1100 W – 50Hz – 5.3 A
120V: 1200 W – 60Hz – 10 A
Cylinder Single Acting
Weight 24.8 kg
Dimensions LxWxH 600 x 154 x 235 mm
