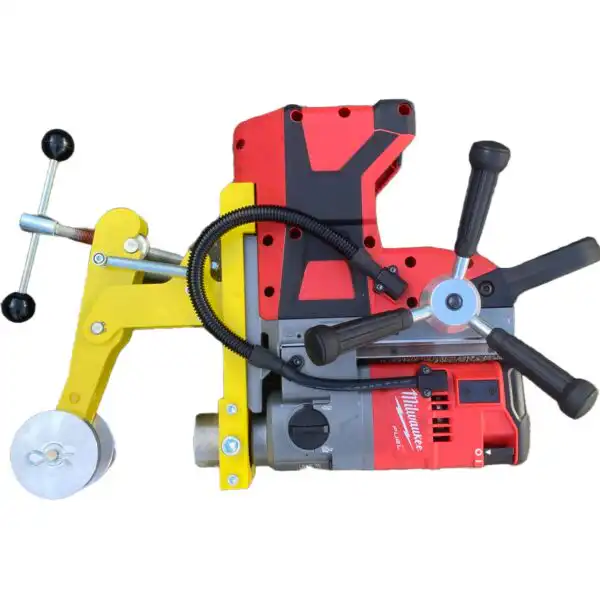

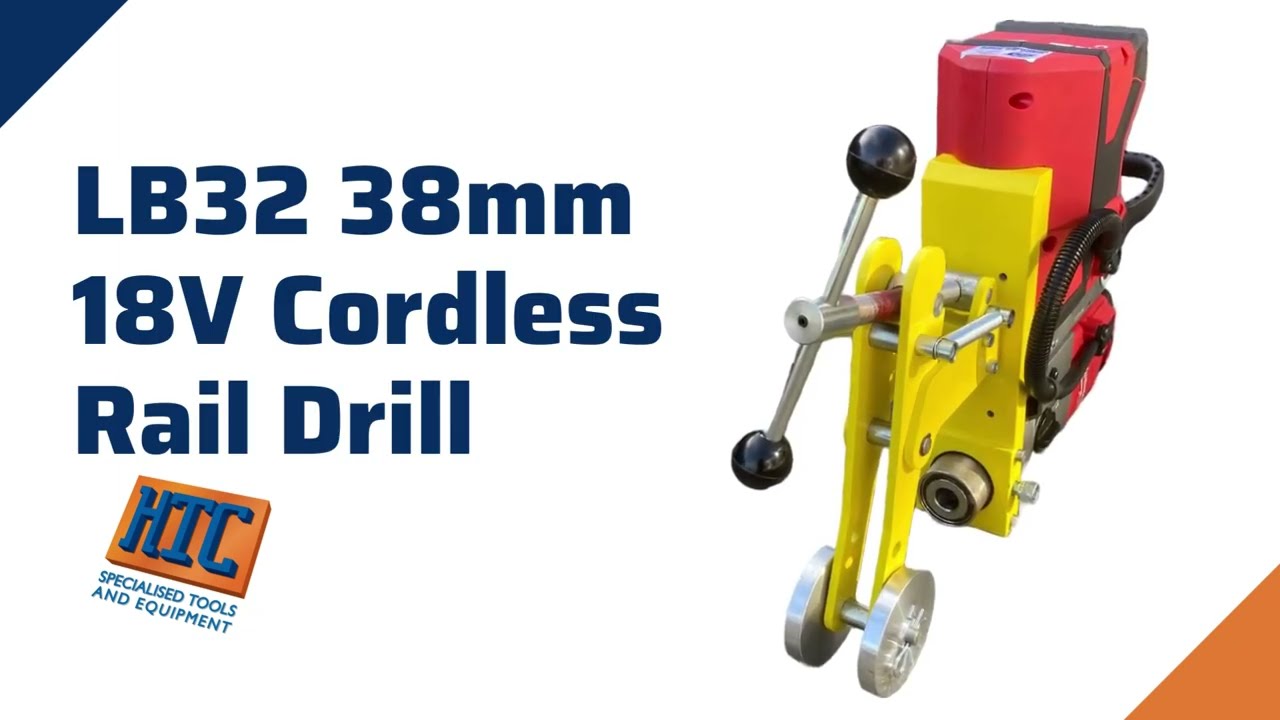

LB32 Battery Bonding Drill

The LB32 38mm 18V Cordless Rail Drill designed for drilling holes in rail tracks, delivering over (40) 20mm holes per charge*.

  • Powered by an electronically controlled brushless motor, the LB32 Rail Drill offers a maximum 38mm annular cutter capacity utilising a keyless 19mm Weldon Chuck .
  • Designed primarily for lightweight electrical Bonding duties on the Kiwirail Network, the LB32 can be used safely in confined spaces where fumes and noise may prevent using standard petrol based drills.
  • The robust clamping system has been designed and manufactured in New Zealand, and coupled with a standard Rail-shoes Set, can be used on all of the Kiwirail Network.
  • *5.0 Ah M18 Fuel Battery, 6mm mild steel.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information


  • 38mm max Annular Cutter capacity
  • Accepts standard Kiwirail Rail Shoe sets (sold separately)
  • Drills over 40 x 20mm holes per charge (5.0 Ah M18 Fuel Lithium Ion Battery), 6mm mild steel.
  • Built in Electronic System to prevent damage from Overload or Overheating
  • Built in LED lights to illuminate cutting area
  • Onboard magnetic lubrication tank, can be fixed to the drill or on the material
  • Tool-free detachable handle for left or right hand use
  • Keyless 19mm Weldon chuck
