Cable laying machine PWM600

The cable laying machine PWM600 MH offers the ruggedness, durability and portability necessary to professionals. It was originally designed to optimize the work of robot mower installers and in basic terms uses a carbide tool to cut a channel in the ground and feeding in your cable at the same time. it causes very little damage to lawns and is self-powered.

In constant evolution, its new optional install kit for wire of up to 10 mm now enables installing wire up to 10 mm in diameter.

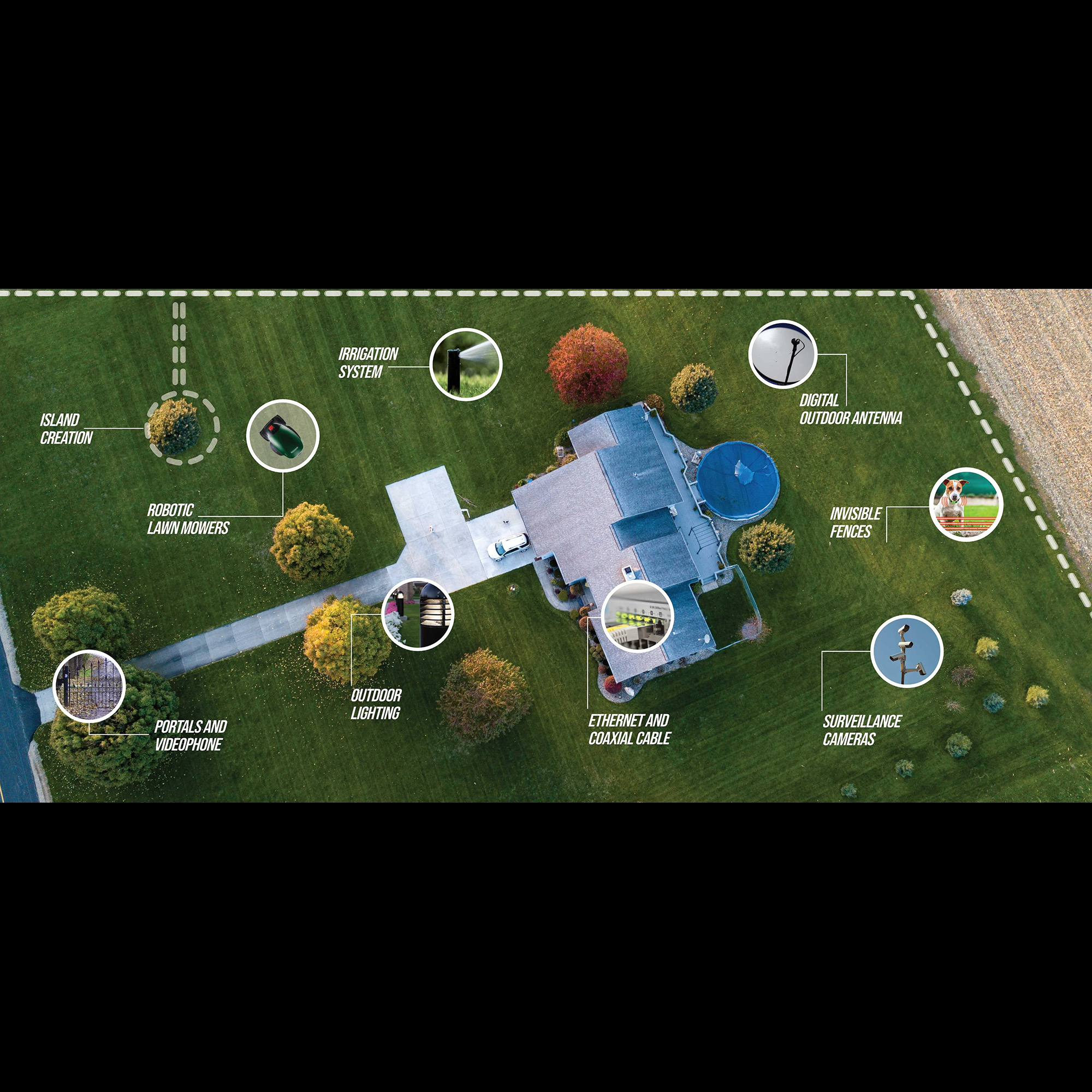

It is then possible to use it also for burying wire for invisible fences for dog control, for outdoor lighting systems, for portal motorization, for videophones, for surveillance cameras, for high-speed Internet or cable TV connections, and more! Robot lawn mowers are becoming more common and affordable, you can save a packet by installing your own perimeter wire to run them.

Made in Canada by The Portable Winch Company

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Save or Print Page

More Information

SKU 600MH / 600MH-Li (Cable laying machine PWM600)
Engine / Motor 600MH: Honda GXH 50, 4-stroke, 2.1 HP
600MH-Li: 1.0kW brushless electric motor for Lithium-Ion batteries 80/82V
Autonomy 600MH: Up to 600 m of wire with a full tank
600MH-Li: Up to 600 m of wire with two 5 Ah batteries (not included)
Wire Reel Bracket Allows the use of most wire reels (up to 800 m)
Many possible configurations

Optional support for oversized wheels (PWMA-0014)
Weight 38 kg
Overall Dimensions 56 cm x 46 cm x 125 cm
Frame Powder Coated Steel
Multi-Position Anti-Vibration Handle Vibration levels reduced by more than 50%
Improved operator comfort
Ergonomic
Pivots 30° to the right and tilts 180° front to back to provide optimal operator working position
Facilitates the installation of the wire in hard to reach places such as under hedges, shrubs and low branches
Transmission Self-propelled
Included 1x heavy duty solid carbide blade
