- Battery Powered Hydraulic Pump
- Pump: 2 Speed Radial Piston, 6.6 lpm @ 60 Bar, 0.6 lpm @ 700 Bar
- Reservoir: Alloy 15 Litre capacity (11 Litres useable)
- Control Valving: 3 position centre closed manual valve in conjunction with an integral pilot check valve on both ports.
- Pressure Settings: Adjustable, 100-700 bar max
- Special option: Needle Valve fitted to Retract Port for fine control of tension release
- Couplers: Pioneer PC3000-3 series
- Motor: 1.5kW Brushless, wired pendant controller.
- Battery: 82V 4Ah Victa/Briggs & Stratton (Supplied separately)

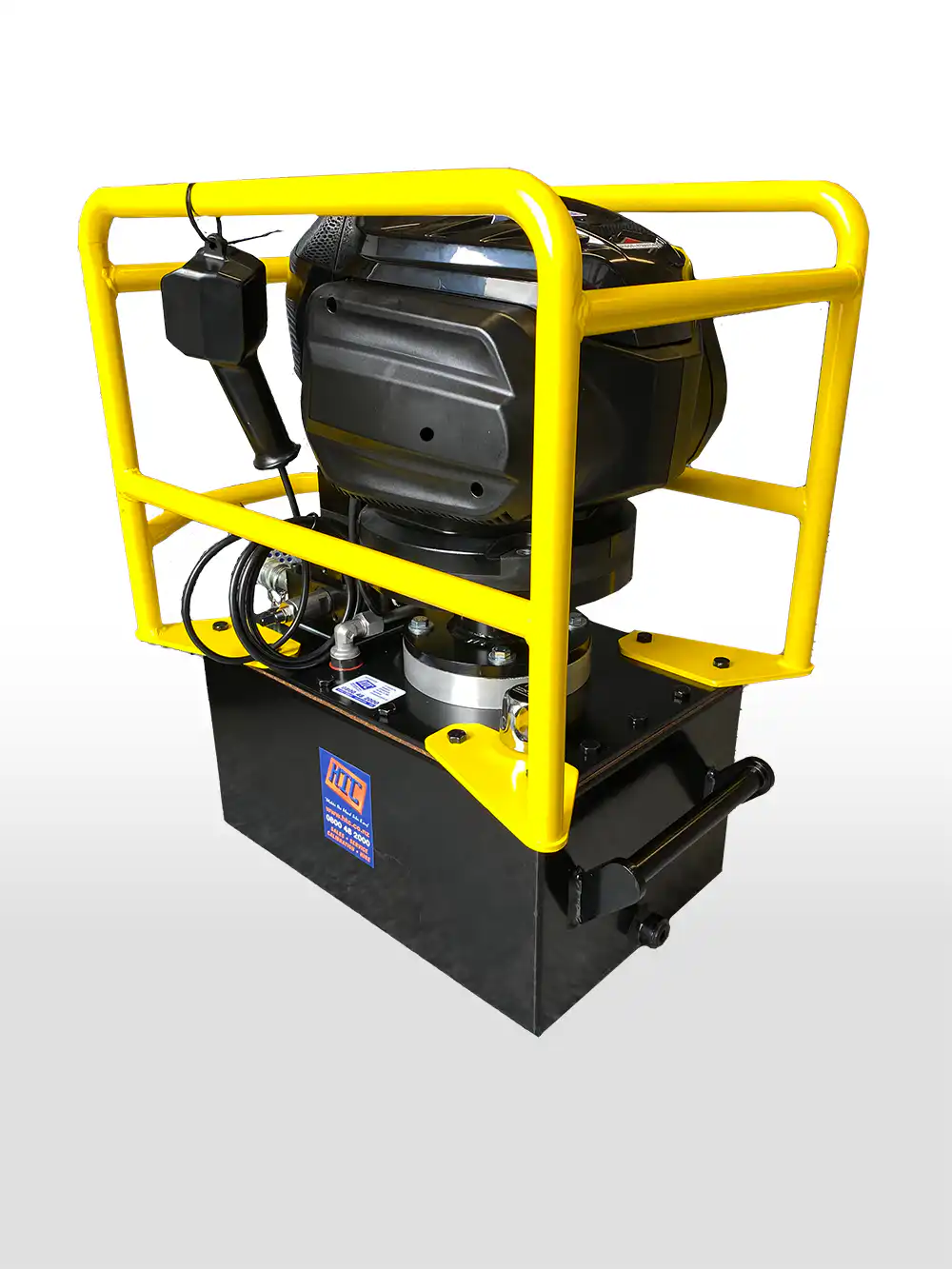

Battery Powered Hydraulic Double Acting 700 Bar Pump
This Battery Powered Hydraulic Pump available for hire at HTC, has been designed for general purpose use where larger capacity or multiple cylinders are required to get the job done. Including Anchor testing, Jacking, Track Pin Press, Crimpers, Wire & Pipe Cutters etc.
The Battery Powered Hydraulic Pump features, including a fully adjustable pressure output, pressure holding, and load lowering valves, and pendant switch, will allow the user a high degree of control and safety during operation. The 2 speed pump offers fast cycling times under low load conditions. Flow rates of 6.6 lpm @ 60 Bar, and 0.6 lpm @ 700 Bar – one of the top performers for Battery pumps of this type.
For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.
