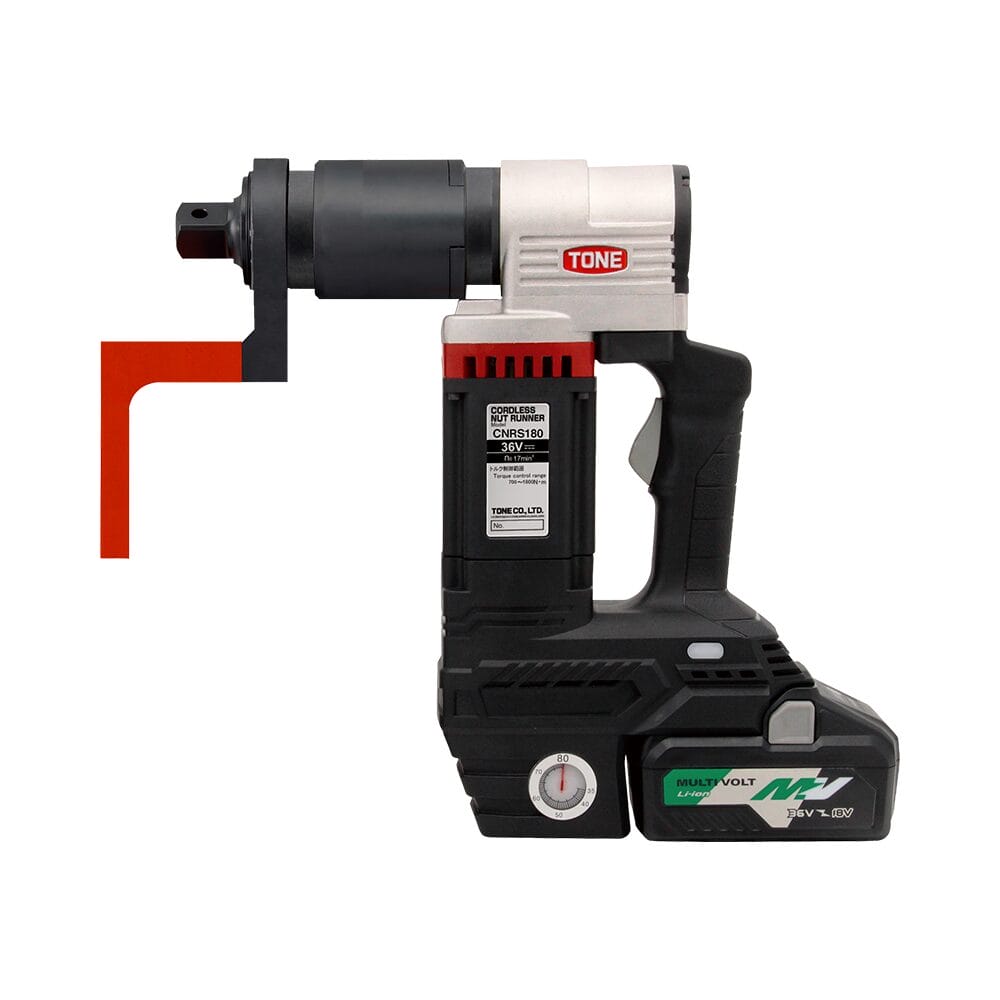

TONE Electric Cordless Nutrunner (CNRS Series)
The TONE CNRS Series is TONE’s high-torque cordless nutrunner range — extending the CNR Series into heavy structural and civil applications that demand more. Four models cover 700–1,800 N·m through to 4,000–10,000 N·m across 1″ square, 1½” square, and spline socket (SPS60/SPS100) drives. Brushless DC motor, automatic torque shut-off, ±5% repeat accuracy, and HiKOKI Multi-Volt battery platform with 40-minute charge time. Supplied with L-shaped reaction bar, battery, charger, and metal case.
More Information
The TONE CNRS Series takes cordless bolting into heavy-duty territory — combining the freedom of battery operation with the torque output previously only possible from a mains-powered tool. Four models cover 700 N·m to 10,000 N·m.
Why the CNRS Series
The standard CNR Series covers structural bolting up to 2,100 N·m. The CNRS Series picks up where that leaves off — purpose-built for heavy civil, infrastructure, and industrial applications where high torque is required and a power cable simply isn’t practical.
The range spans four torque tiers: 700–1,800 N·m on a 1″ square drive (CNRS180), 1,600–4,000 N·m on a 1½” square drive (CNRS400), 2,400–6,000 N·m on a SPS60 spline socket (CNRS600), and 4,000–10,000 N·m on a SPS100 spline socket (CNRS1000). The CNRS600 and CNRS1000 mirror the spline socket configuration of the wired GST-601/602 and GST-1001/1002 — delivering the same high-torque capability with full site mobility.
All four models run on the same HiKOKI Multi-Volt battery platform (BSL 36B18 / BSL 36A18) as the CNR and CNB Series, with a consistent 40-minute charge time across the range. A brushless DC motor delivers efficient power output, and automatic shut-off stops the tool the moment the preset torque is reached.
Key Features
- Fully cordless at extreme torque levels — up to 10,000 N·m without a power cable
- Four drive configurations — 1″ square, 1½” square, SPS60 spline, and SPS100 spline; each suited to specific high-load applications
- Integrated torque controller — no external control box; clean and compact tool body
- Automatic shut-off — stops precisely at preset torque, every time
- Brushless DC motor — efficient, durable, low-maintenance
- Bidirectional operation — full torque control for both tightening and loosening
- ±5% repeat tightening accuracy — under consistent conditions across all models
- HiKOKI Multi-Volt battery platform — 40-minute charge time; BSL 36B18 and BSL 36A18 batteries
Typical Applications
- Heavy structural steelwork and high-tension bolt installation
- Bridge and civil infrastructure construction
- Rail and railway infrastructure
- Industrial plant maintenance and heavy assembly
- Remote or elevated worksites without mains power access where high torque is required
- Any application previously limited to wired GST-type tools due to lack of power access
Range Overview
| Model | Torque Range | Drive Type | Drive Size |
|---|---|---|---|
| CNRS180 | 700 – 1,800 N·m | Square drive | 25.4 mm (1″) |
| CNRS400 | 1,600 – 4,000 N·m | Square drive | 38.1 mm (1½”) |
| CNRS600 | 2,400 – 6,000 N·m | Spline socket | SPS60 |
| CNRS1000 | 4,000 – 10,000 N·m | Spline socket | SPS100 |
Each model supplied with L-shaped reaction bar, battery (BSL 36B18, 4.0 Ah), charger (UC 18YDL2), battery cover, and metal carrying case.
📊 Specifications — TONE CNRS Series Cordless Nutrunner
| Model | Torque Range (N·m) | Max Torque (N·m) | Drive Type | Drive Size | No-Load Speed (rpm) | Motor | Weight (kg) | Bolts per Charge (4.0 Ah) |
|---|---|---|---|---|---|---|---|---|
| CNRS180 | 700 – 1,800 | 1,800 | Square drive | 25.4 mm (1″) | 6 | Brushless DC | 8.3 | ~90 (at max torque) |
| CNRS400 | 1,600 – 4,000 | 4,000 | Square drive | 38.1 mm (1½”) | 3 | Brushless DC | 10.6 | ~50 (at max torque) |
| CNRS600 | 2,400 – 6,000 | 6,000 | Spline socket | SPS60 | 1.8 | Brushless DC | 14.1 | ~30 (at max torque) |
| CNRS1000 | 4,000 – 10,000 | 10,000 | Spline socket | SPS100 | 0.8 | Brushless DC | 18 | ~30 (at max torque) |
Note: Compatible batteries are HiKOKI BSL 36B18 and BSL 36A18 only. Charger is not sold separately. Bolts per charge figures are based on tightening at maximum torque — real-world counts will be higher at lower torque settings.
All models: Repeat tightening accuracy ±5% · Bidirectional (tighten/loosen) · Pistol-type body · HiKOKI Multi-Volt battery (BSL 36B18 / BSL 36A18) · 40 min charge time · Charger input: AC 100V 50–60 Hz · Supplied with L-shaped reaction bar, battery, charger, and metal case
Compatible sockets by model:
- CNRS180 — Impact sockets 8NV-32 through 8NV-75
- CNRS400 — Impact sockets 12AD-41 through 12AD-95
- CNRS600 — Spline sockets SPS60W series
- CNRS1000 — Spline sockets SPS100W series
