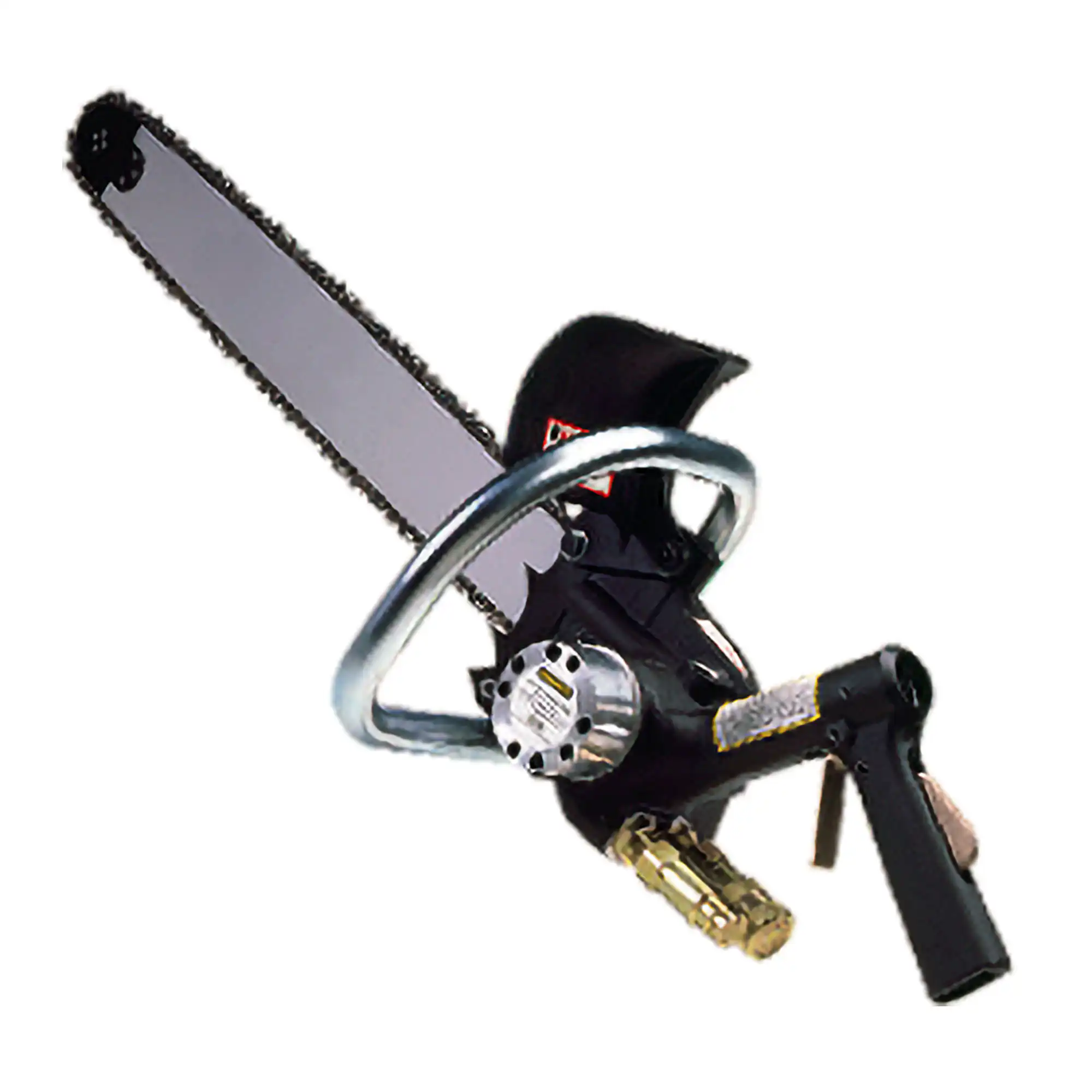

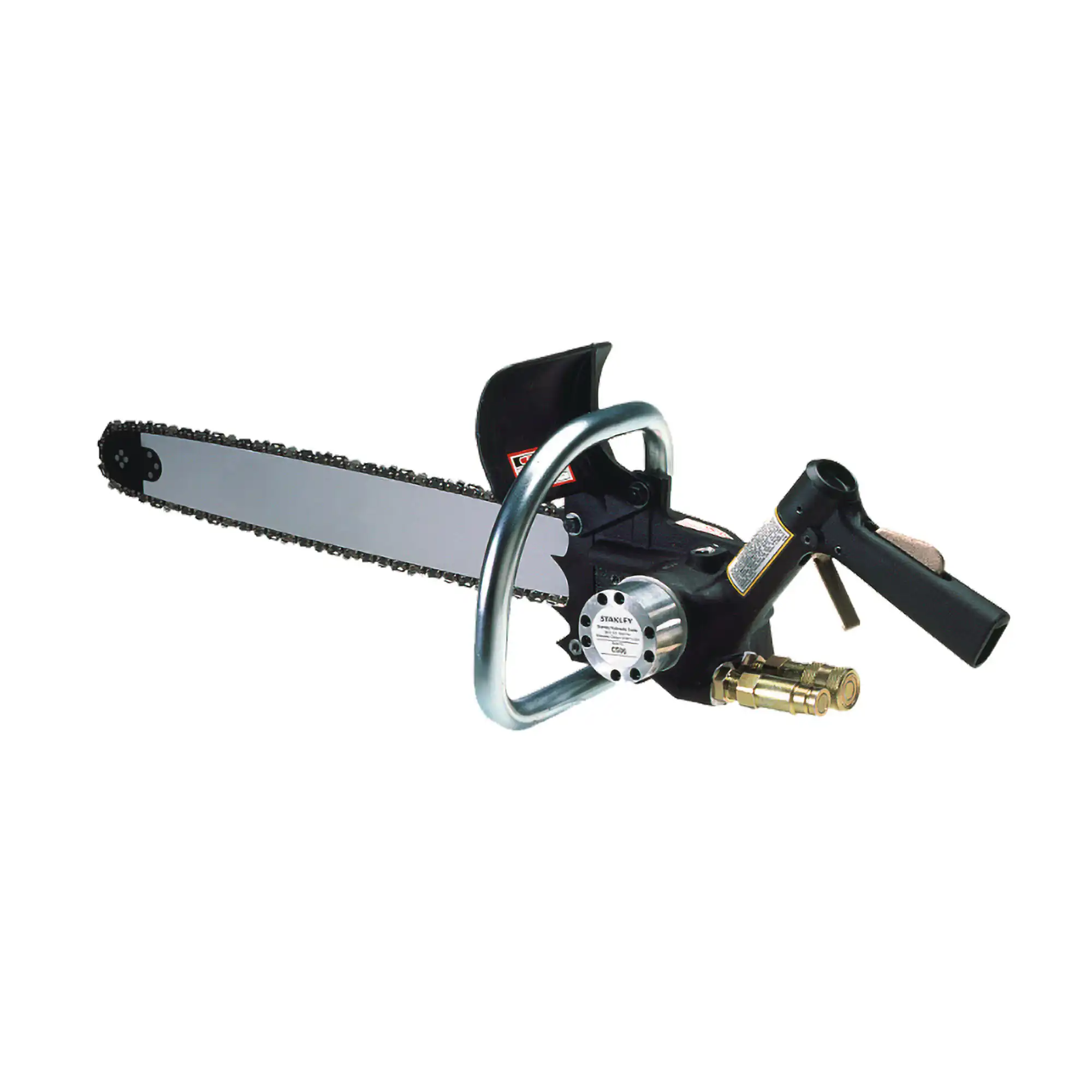

Pistol-Grip Hydraulic Chain Saw

Stanley CS05 / CS06 hydraulic chain saws

Offering the highest power-to-weight ratio of any chain saw on the market today, the CS05 and CS06 features an inter-locking trigger, hand guard, low kick-back bars and chains and no chain coasting when the trigger is released. The CS05 has a flow range of 4-6 gpm (15-23 lpm) while the CS06 has a flow range of 7-9 gpm (26-34 lpm) to suit varying hydraulic circuits. The CS05 and CS06 weighs in at under 3.2kg but is capable of 8 to 10 horsepower of cutting power, producing almost twice the power of a gas engine chainsaw with half the weight.

Suitable for many wood cutting applications: trees pruning, timber, utility and wood structures.

Note: Requires a hydraulic pump and twin hose set to operate.

Category: Brand:

Additional Information

More Information

Compared to conventional cutting equipment Stanley hydraulic cutting tools offer:

More work in less time
Longer tool life
Minimal maintenance
Increased safety


Highest power-to-weight ratio of any chain saw on the market
Trigger lock
Hand guard
Dual spool for open center or closed center operation
Low kickback bars and chains
Inherently low-kickback hydraulic motor
Automatic chain oiler


Capacity: 300, 380 & 510 mm (12, 15, & 20 in) bars available
Overall length: 690, 760 & 890 mm (27, 30 & 35 in)
Hydraulic Flow:
CS05: 15-23 lpm (4-6 gpm)
CS06: 26-34 lpm (7-9 gpm)
Working pressure: 105-140 bar (1500-2000 psi)
Weight: 2.8 kg (6.25 lbs)
Couplers: 3/8″””” NPT male adaptors and couplers are included
Made in USA
