Hydraulic pump Aero-DAX 19

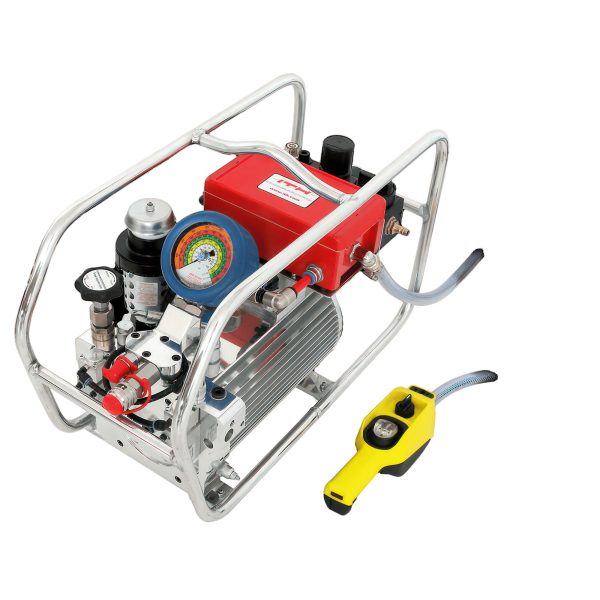

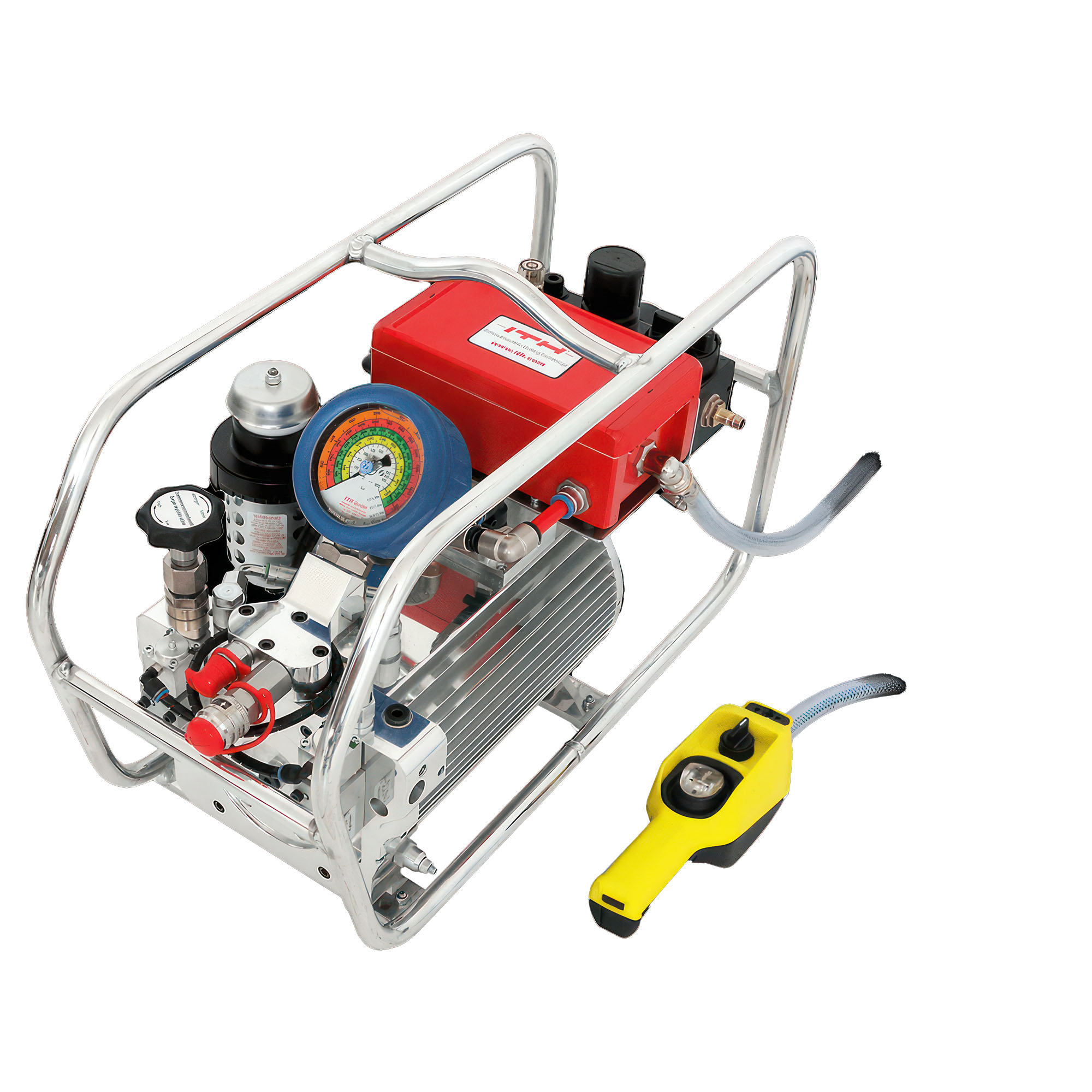

Introducing the Aero-DAX 19 Hydraulic Pump
Experience the Aero-DAX 19 Hydraulic Pump – a pneumatic powerhouse designed for optimal performance and versatility. This pump operates independently from electric power supplies, utilizing standard air compressors, making it an ideal choice for a wide range of applications in the oil and gas industry.
Categories: , Brand:

More Information

Key Features:

Inner Oil Bath Motor: Robust and powerful, the inner oil bath motor ensures reliable and efficient operation.

Pneumatic Remote Control: Achieve easy and fast one-man operation with the included standard pneumatic remote control (5m), eliminating the need for extra electric power.

Efficient Cooling: The ribbed tank and fan efficiently cool the oil bath motor, ensuring consistent performance.

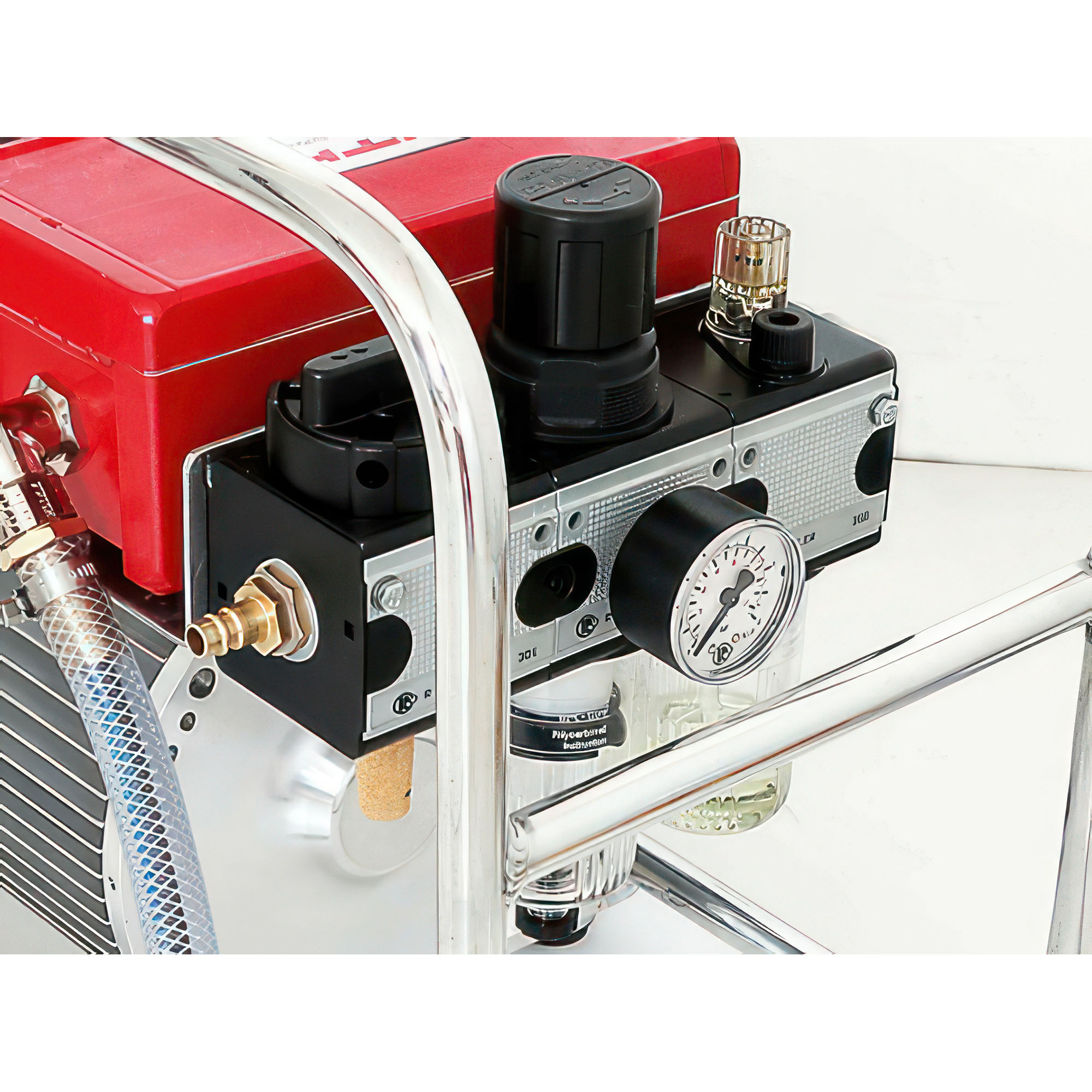

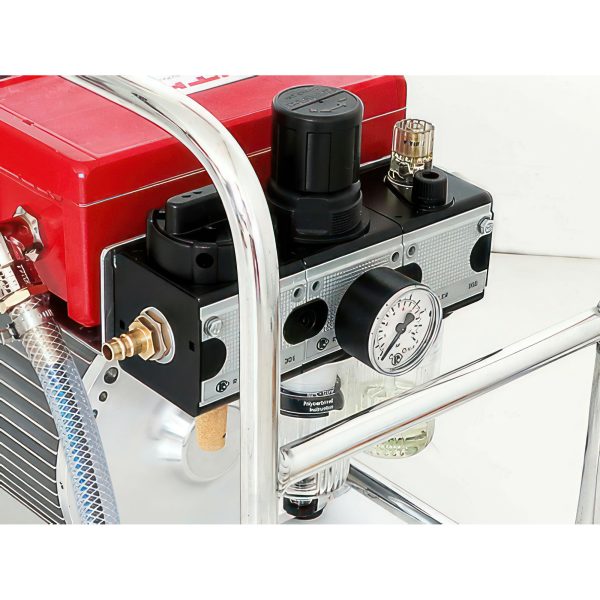

Comprehensive Service Unit: The service unit, located at the bottom, includes essential components such as pneumatic coupling (10mm, adaptable), air pressure gauge, air shut-off valve, oiler, and water filter.

Pressure Adjusting Valve: Smoothly adjust the maximum hydraulic pressure to meet your specific requirements.

Dual Hose Hydraulic Connection: Equipped with high-flow nipples and couplings, this pump offers high output and compatibility with all dual-hose ITH Hydraulic Torque Wrenches.

High-Pressure Gauge: Featuring a protective rubber cover and multiple colored pressure scales (0 – 1000 bar), the high-pressure gauge provides accurate readings.

Sturdy Aluminum Frame: The stable and weight-optimized aluminum frame includes a lifting point for easy maneuverability.

Voltage Indicator Light: Stay informed with the indicator light, which alerts the operator to improper power supply conditions that may occur during fieldwork with a generator.

Cycle Counter: Conveniently display pressure cycles, offering valuable information for tool management (located on the backside).

Oil Level Sight Glass: Monitor oil levels effortlessly with the sight glass located on the backside of the oil tank.

Choose the Aero-DAX 19 Hydraulic Pump for unmatched performance, reliability, and ease of operation in demanding industrial settings.
Aero-DAX 19
Order number
  • Compatibility
  • All ITH Hydraulic Torque Wrenches, optimal mit dual-hose torque wrench types
  • Max. hydraulic operating pressure
  • 850 bar
  • Dimensions (L x W x H)
  • 600 x 300 x 420 mm
  • Weight
  • 33,6 kg (30,5 kg without oill)
  • Oil volume
  • 3 l
  • Required air supply:
  • Min. 6 bar
  • Pneumatic-connector (inside diameter Ø)
  • Min. 10 mm (adapters are available)
  • Air consumption
  • 2.000 – 2.500 l/min.
