Hearthill Drum Jack Stand

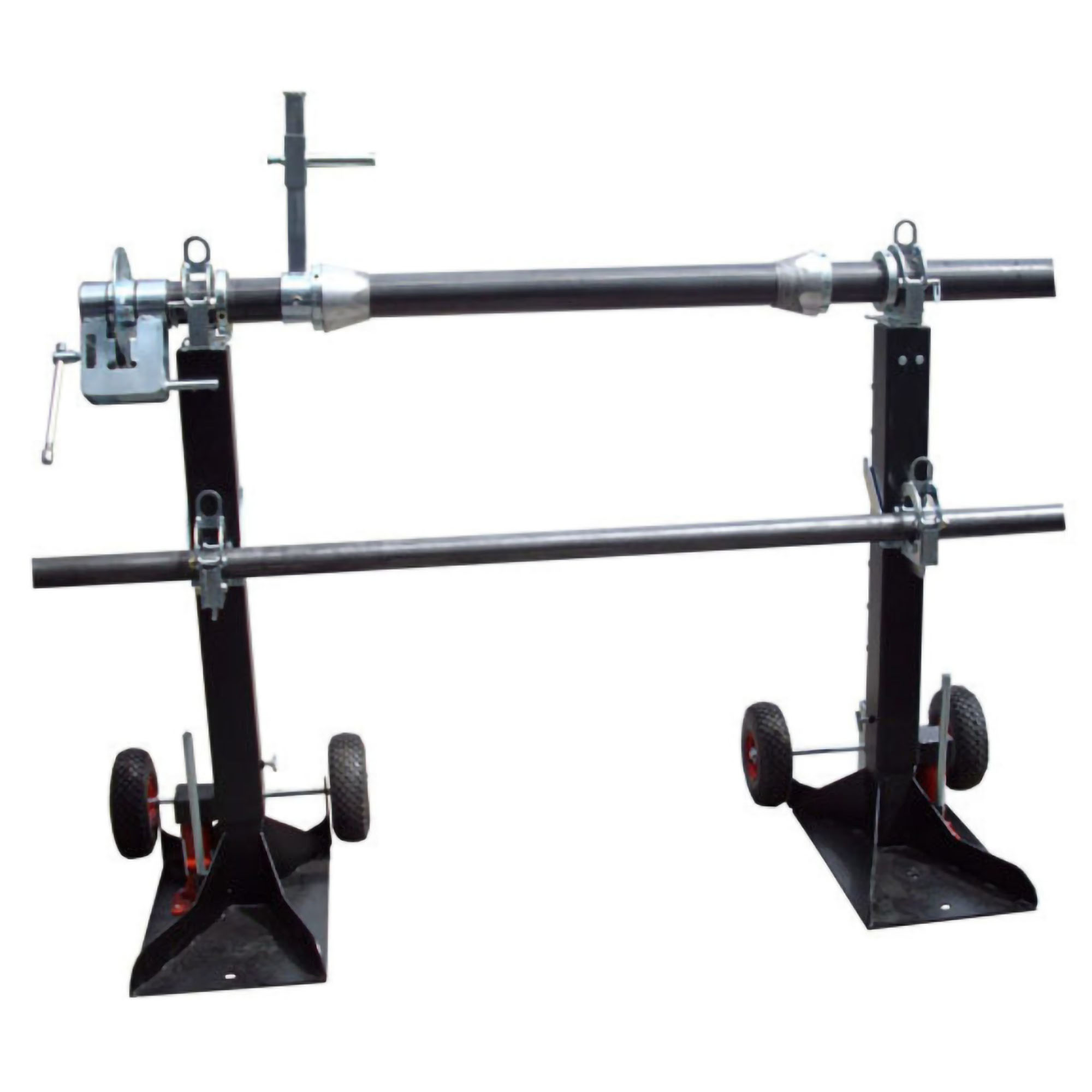

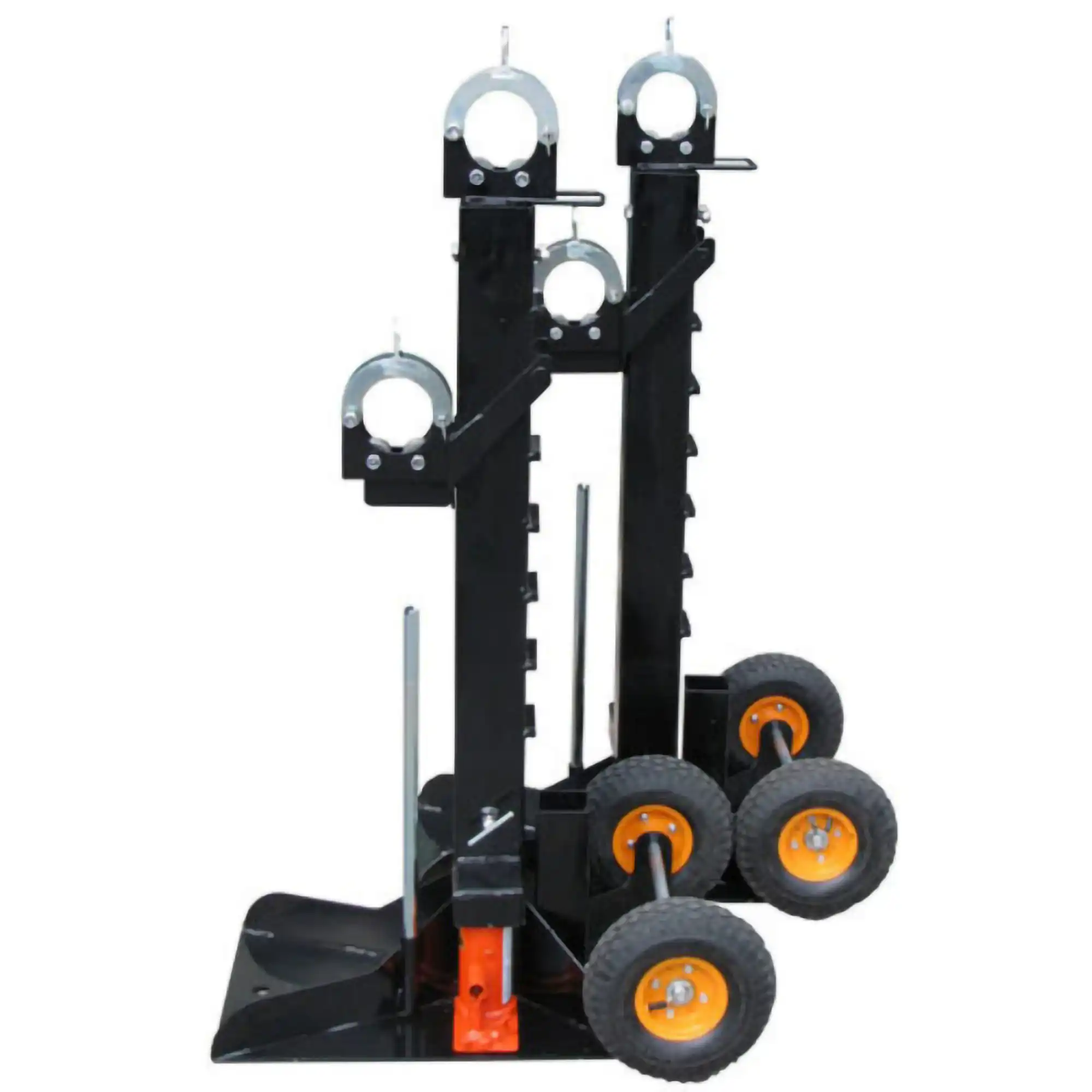

The DJS-58T shown here is the complete set of Hearthill’s manually operated and transportable drum stand.

This unit is fitted with two Japanese hydraulic jacks giving the top roller assemblies a tested and certified Working Load limit of 8,000kg for cable drums up to a diameter of 3 metres and width of 1.8 metres. Also supplied is two jack extensions which gives users an additional 250mm of lift.

The set also has two frontal roller assemblies which slides in 7 positions, 100mm apart for smaller drums.

When purchased the set comes with;

2 x complete stands with bottle jacks and handles, pneumatic wheels
1 x stamped and registered 90 mm in diameter axle
2 x 250mm extension blocks
2 x Drum centering cones
2 x Axle retaining collars

Note – Attached to the DJS above is the optioned mechanical disc brake, complete with adjustable fixing arm, DB-900 is everything you need to brake the rotation of the drum.
