Rebar Cutter / Straightener 32mm

Stand-alone bender with unique built-in hydraulic pump for modifying rebar bending angle for D32 high tensile rebar at construction site.

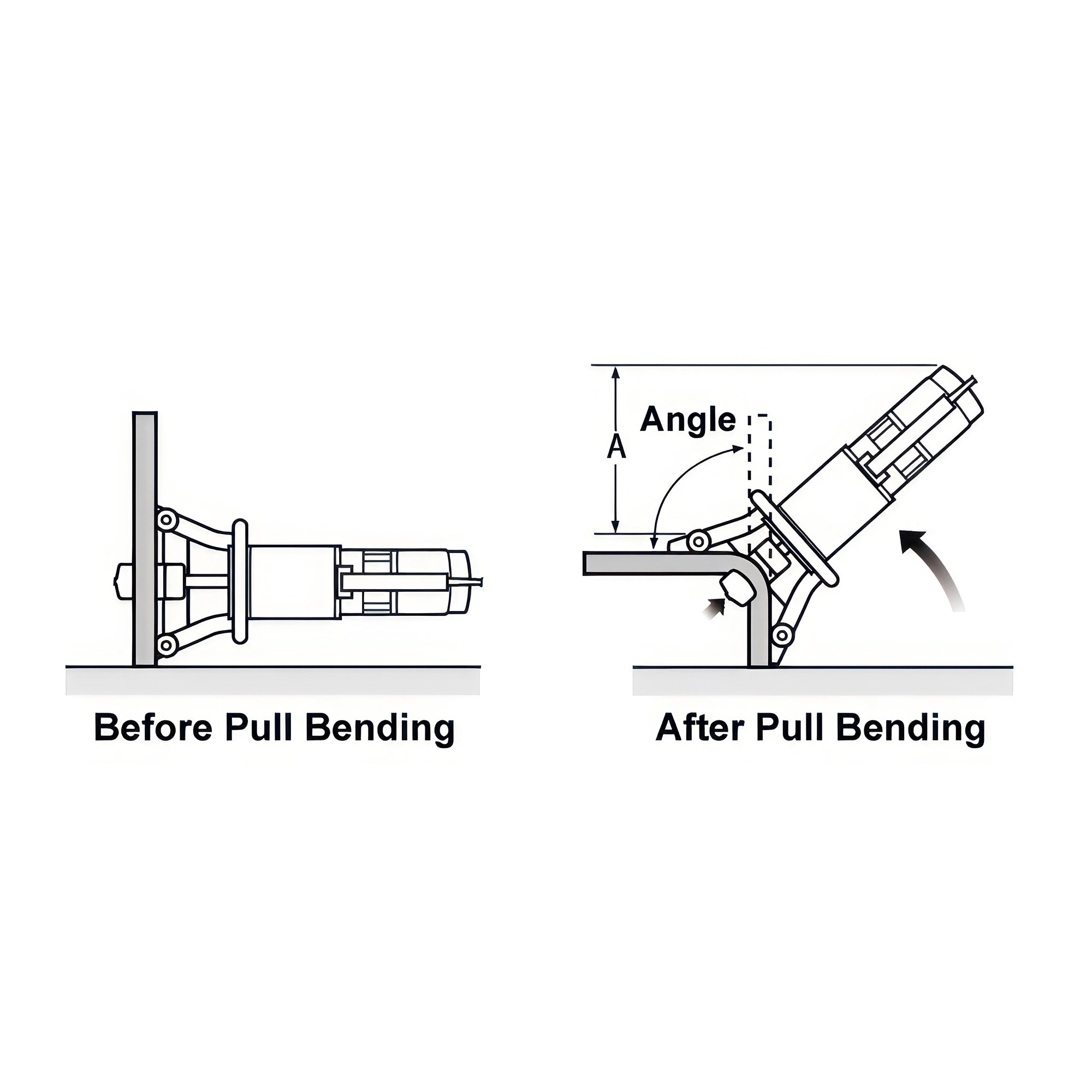

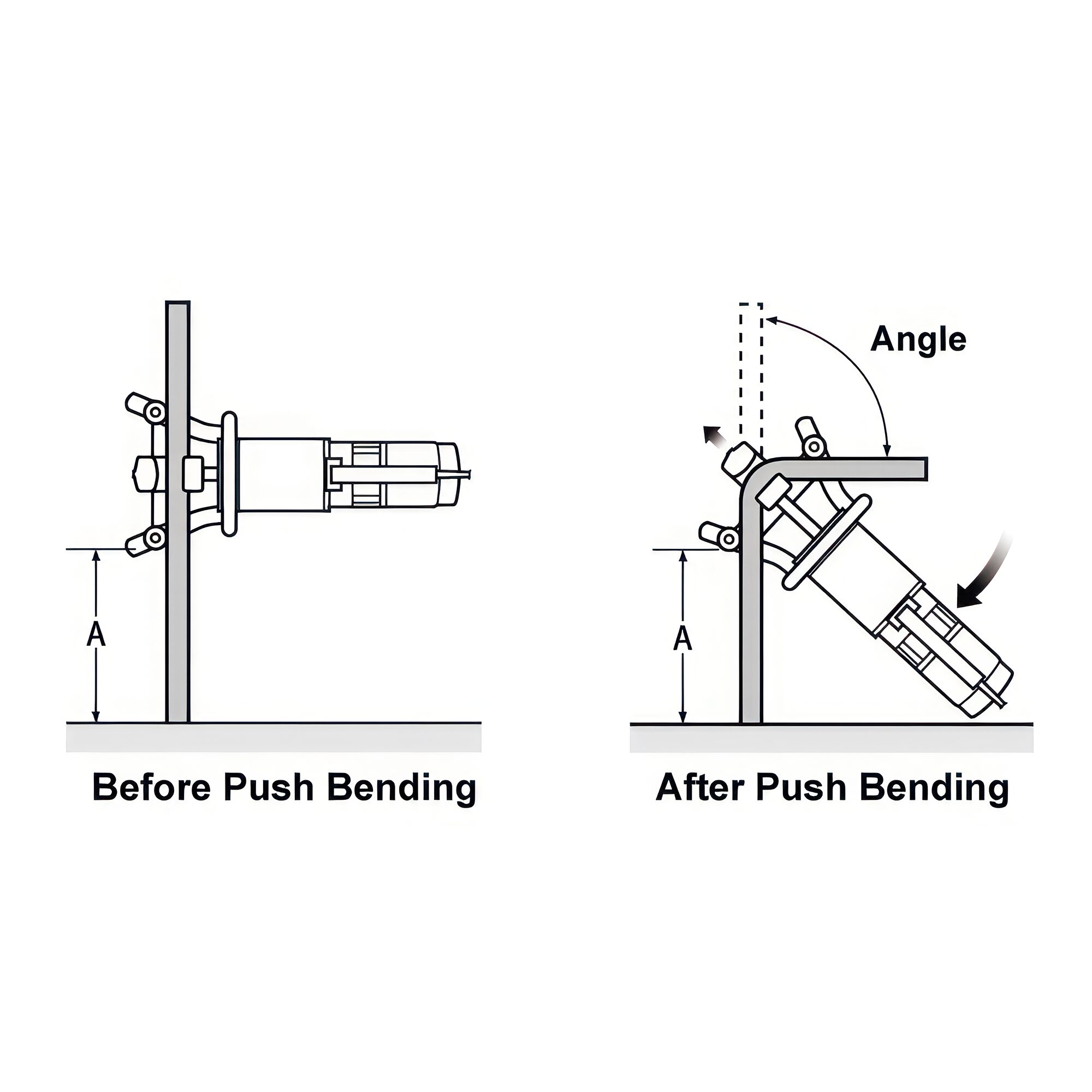

Capable of both “push bending” and “pull bending” with free rotating bending hook.

The powerful motor is double insulated and can easily handle the hardest of tasks.

Categories: , Brand:

More Information


Motor: Single-Phase, 110-115V/220-230V, 50/60Hz, 1330W, Double Insulation
Weight: 25.4 kg / 56.0 lbs
Dimensions: (L x W x H) 670 mm x 302 mm x 219 mm | 26.38 in x 11.89 in x 8.62 in
Max. Bending Capacity: Max. D32 / #10 (620N/mm2 (63kgf/mm2)) = Grade60 / SD490
Bending Speed: 90 degrees bend for D32 (#10) rebar
Push bend: approx. 16s
Pull bend: approx. 15s
Standard Accessories: Wooden Box, Hex Wrenches, Spanners, Roller
Min. Required Height from the Ground when 90 deg Bend push bend: approx. 495 mm
Pull bend: approx. 185 mm
Option: Bending Hook C for Modification Bending
