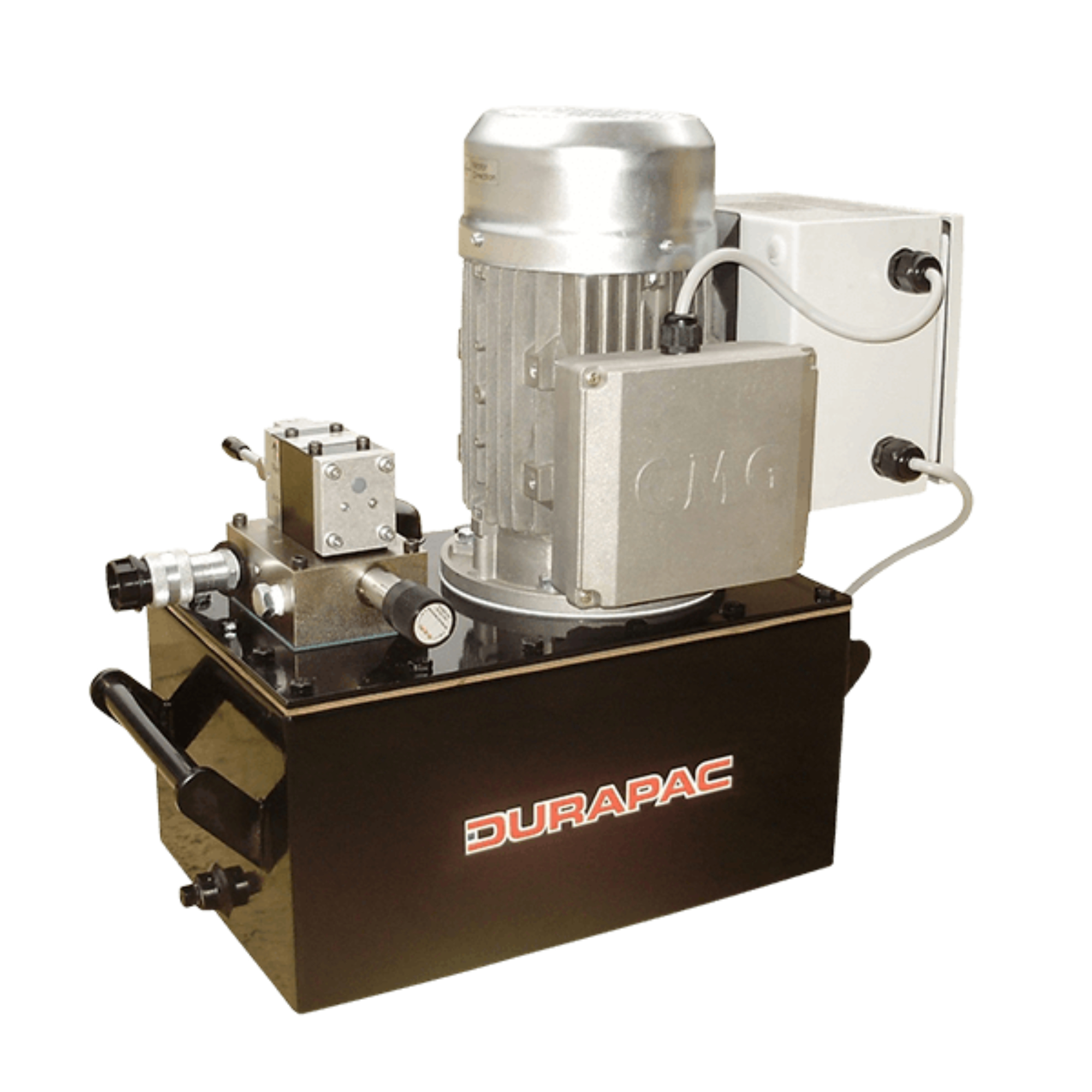

Durapac PES1513 Electric Hydraulic Power Unit
The PES1513 Electric Hydraulic Power Unit provides a flow rate of 9.5 Lpm at pressures up to 65 bar, and 1.1 Lpm at pressures up to 700 bar.
More Information
3-way Solenoid Valve:
The power unit features a solenoid valve with three pathways.
Safety Pressure Relief:
Equipped with a safety pressure relief valve rated for 700 bars.
Efficient Power:
Powered by a 1.5kW electric motor operating at 240 Volts and 50 Hz, single phase.
Remote Control Pendant:
The remote pendant enables the activation of advance/hold/retract functions for single-acting cylinders and tools.
Suited for Medium to Large Loads:
Ideal for managing medium to large tonnage cylinders and systems.
Pressure Adjustment Capability:
Includes an externally adjustable pressure relief valve for customization.
| Model No. | 1st Stage Flow Rate (Lpm) | 2nd Stage Flow Rate (Lpm) | 1st Stage Pressure Rating (bar) | 2nd Stage Pressure Rating (bar) | Motor kW | Voltage (50 Hz) | Amps | Remote Pendant Function 4 mtr | Valve Type (3/8″-NPTF Ports) | Usable Oil Cap. (L) | Approx. Dry Weight (kg) | Approx. Dimensions (mm) |
|---|
| PES1513 | 9.5 | 1.1 | 65 | 700 | 1.5 | 240 | 8.3 | SOLENOID ADV/HOLD/ RETRACT | 3w/3p Solenoid | 10 | 59 | 270 W x 410 L x 565 H |
