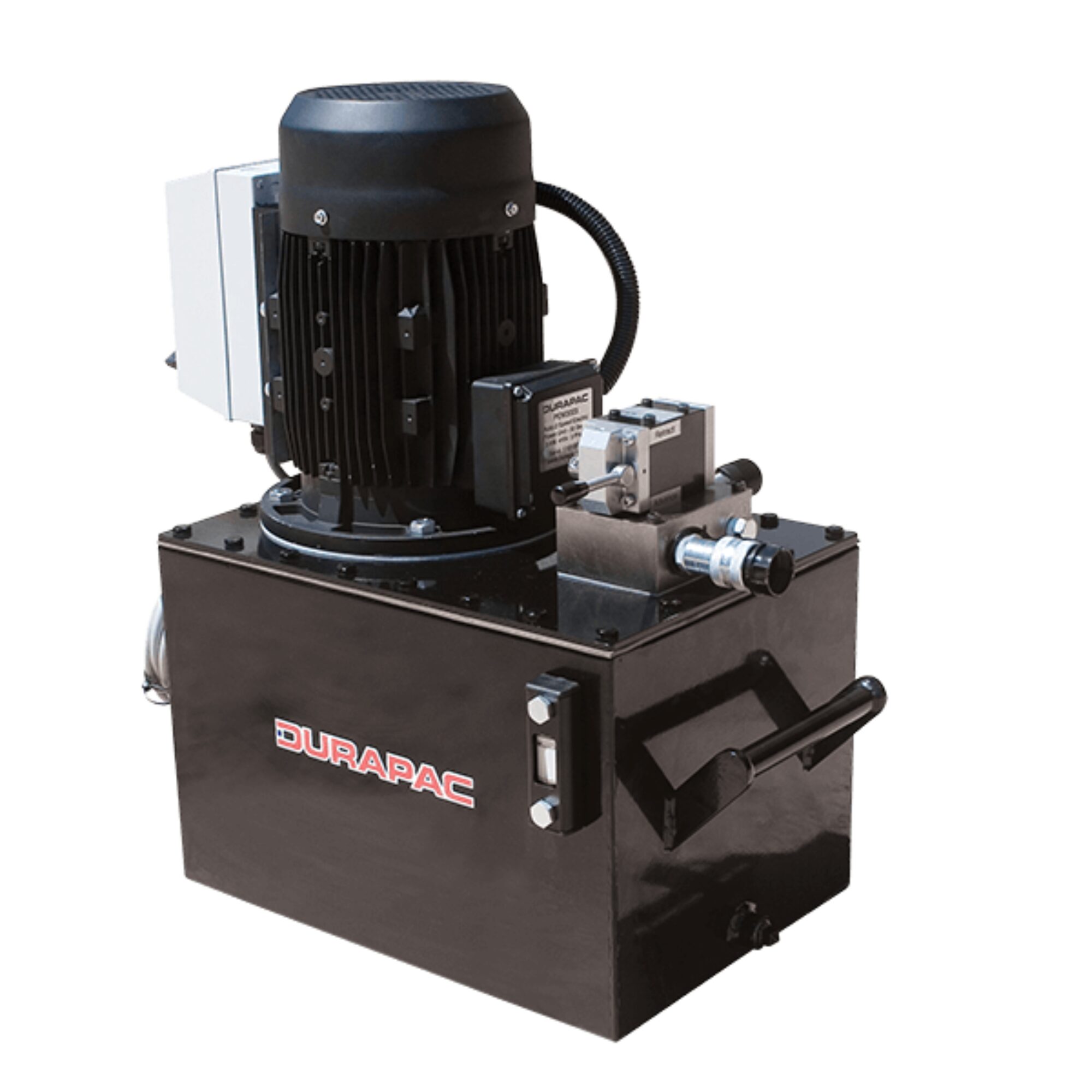

Durapac PEM3023 Electric Hydraulic Power Unit
The PEM3023 Electric Hydraulic Power Unit provides a flow rate of 10.5 Lpm at pressures of up to 100 bar and a flow rate of 2.1 Lpm at pressures of up to 700 bar.
More Information
Directional Control Valve Options:
This power unit offers a directional control valve with three positions, providing options for operating single-acting cylinders and tools.
Adjustable Pressure Relief:
Included is an externally adjustable pressure relief valve, allowing for customization of pressure settings.
Efficient Power Source:
Powered by a 3 kW, 415 Volt / 50 Hz three-phase electric motor, ensuring optimal performance.
Suitable for Medium to Large Applications:
Ideal for handling medium to large tonnage cylinders and systems, offering versatility in application.
Safety Measures:
Equipped with a 700 bar safety pressure relief valve, prioritizing safety during operation.
Durable Oil Reservoir:
Features a robust steel oil reservoir for durability, complemented by an oil level sight gauge for easy monitoring.
|
Model No.
|
1st Stage Flow Rate (Lpm)
|
2nd Stage Flow Rate (Lpm)
|
1st Stage Pressure Rating (bar)
|
2nd Stage Pressure Rating (bar)
|
Motor kW
|
Voltage (50 Hz)
|
Amps
|
Remote Pendant Function 4 mtr
|
Valve Type (3/8″-NPTF Ports)
|
Usable Oil Cap. (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEM3023 | 10.5 | 2.1 | 100 | 700 | 3 | 415 | 6.3 | ON/OFF JOG SWITCH* | 3w/3p Manual | 20 | 71 | 320 W x 450 L x 560 H |
* Standard supply is motor mounted ON/OFF/JOG switch. Remote pendant is optional.
To order with remote pendant; add “R” to the end of the model number.
^ Standard supply includes roll frame and 63mm diameter pressure gauge.
