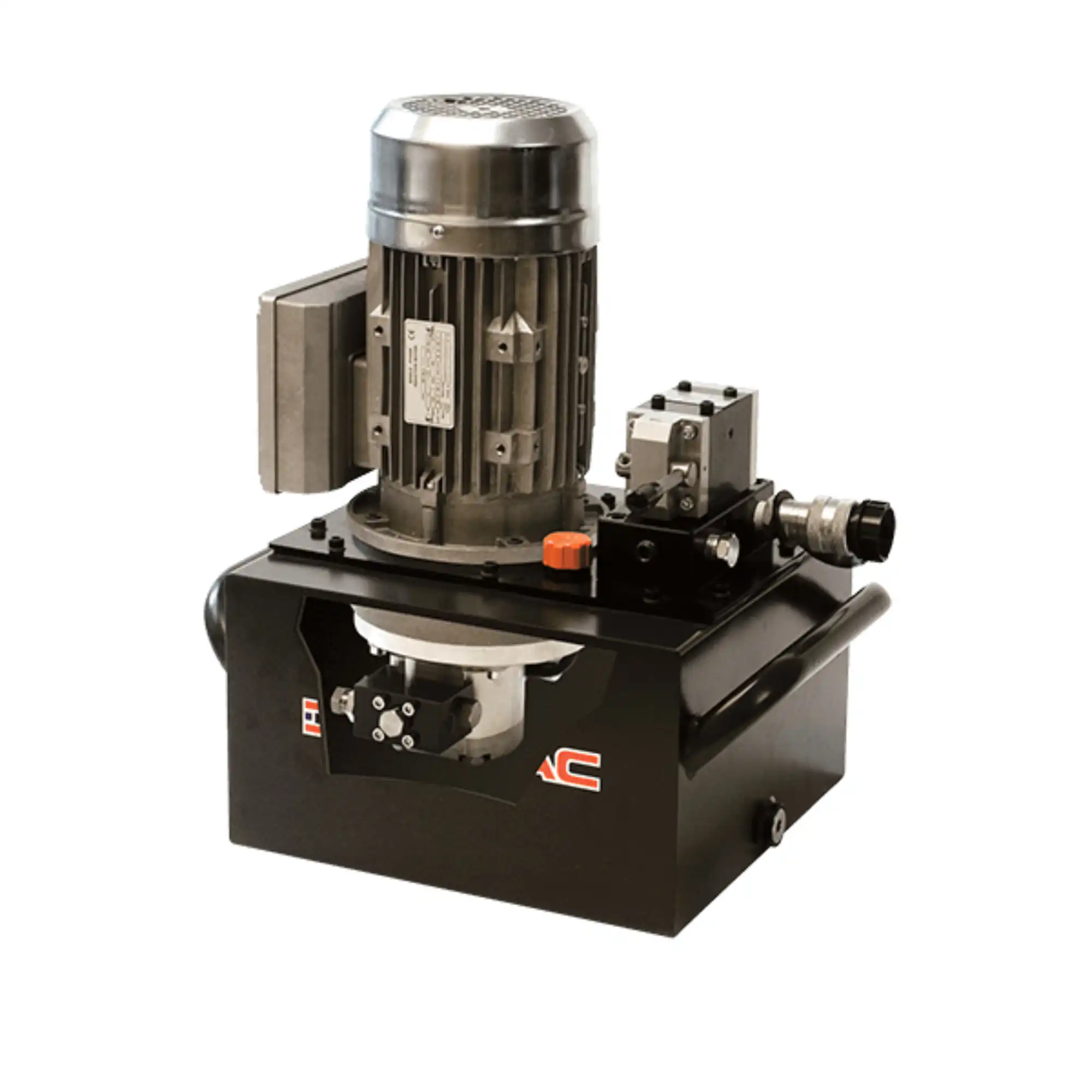

Durapac PEM1514 Electric Hydraulic Power Unit
The PEM1514 Electric Hydraulic Power Unit provides a flow rate of 9.5 Lpm at pressures of up to 65 bar, and 1.1 Lpm at pressures up to 700 bar.
More Information
Low Pressure Unloading Valve:
The power unit is equipped with an integrated low-pressure unloading valve.
Safety Pressure:
A safety pressure relief valve rated at 700 bar is installed in the power unit for enhanced safety measures.
Perfect Power:
Operated by a 1.5kW, 240 Volt / 50 Hz single-phase electric motor, the power unit ensures reliable performance.
Adjustable Pressure:
Featuring an externally adjustable pressure relief valve, users can customize pressure settings according to their requirements.
Oil Reservoir:
Constructed with a robust steel oil reservoir, the unit guarantees durability and strength, complemented by an oil level sight gauge for easy monitoring.
Remote Pendant:
Included with a 4-meter remote pendant, users can conveniently control the electric motor, enabling ON/OFF jogging functionality.
|
Model No.
|
1st Stage Flow Rate (Lpm)
|
2nd Stage Flow Rate (Lpm)
|
1st Stage Pressure Rating (bar)
|
2nd Stage Pressure Rating (bar)
|
Motor kW
|
Voltage (50 Hz)
|
Amps
|
Remote Pendant Function 4 mtr
|
Valve Type (3/8″-NPTF Ports)
|
Usable Oil Cap. (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEM1514 | 9.5 | 1.1 | 65 | 700 | 1.5 | 240 | 8.3 | MOTOR ON/OFF | 4w/3p Manual | 10 | 46 | 270 W x 410 L x 565 H |
