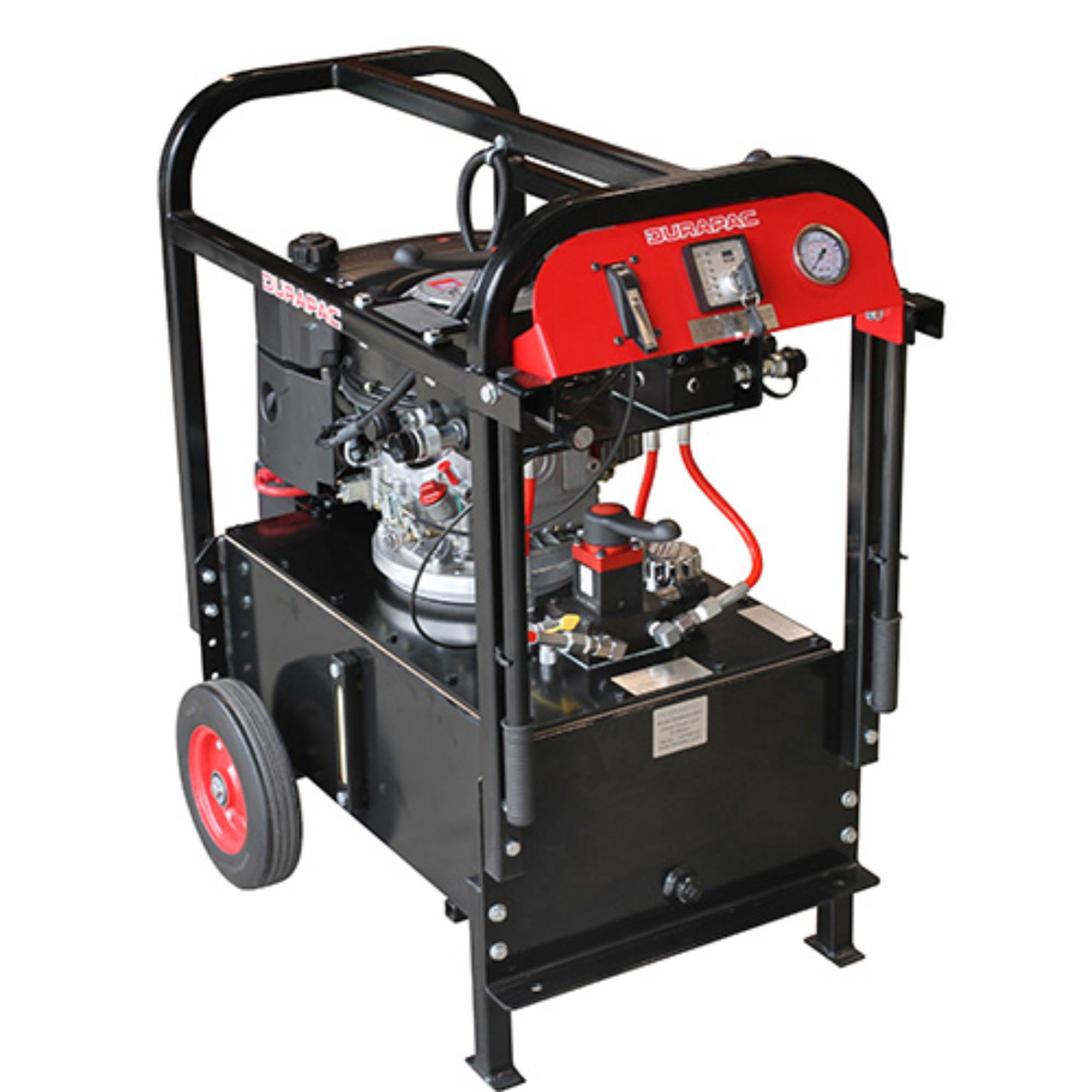

Durapac PDM3054-RAIL Diesel Driven Railway Power Unit

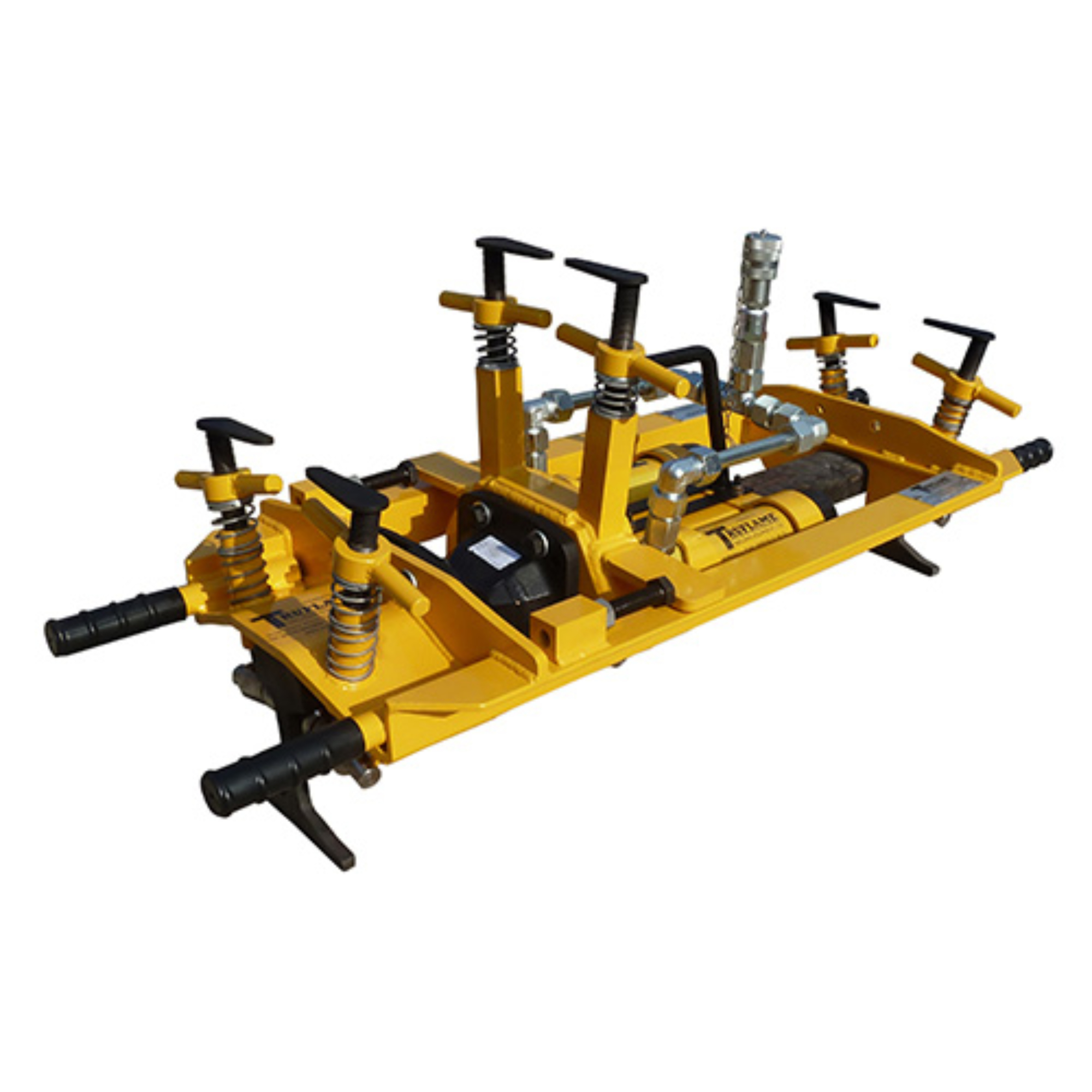

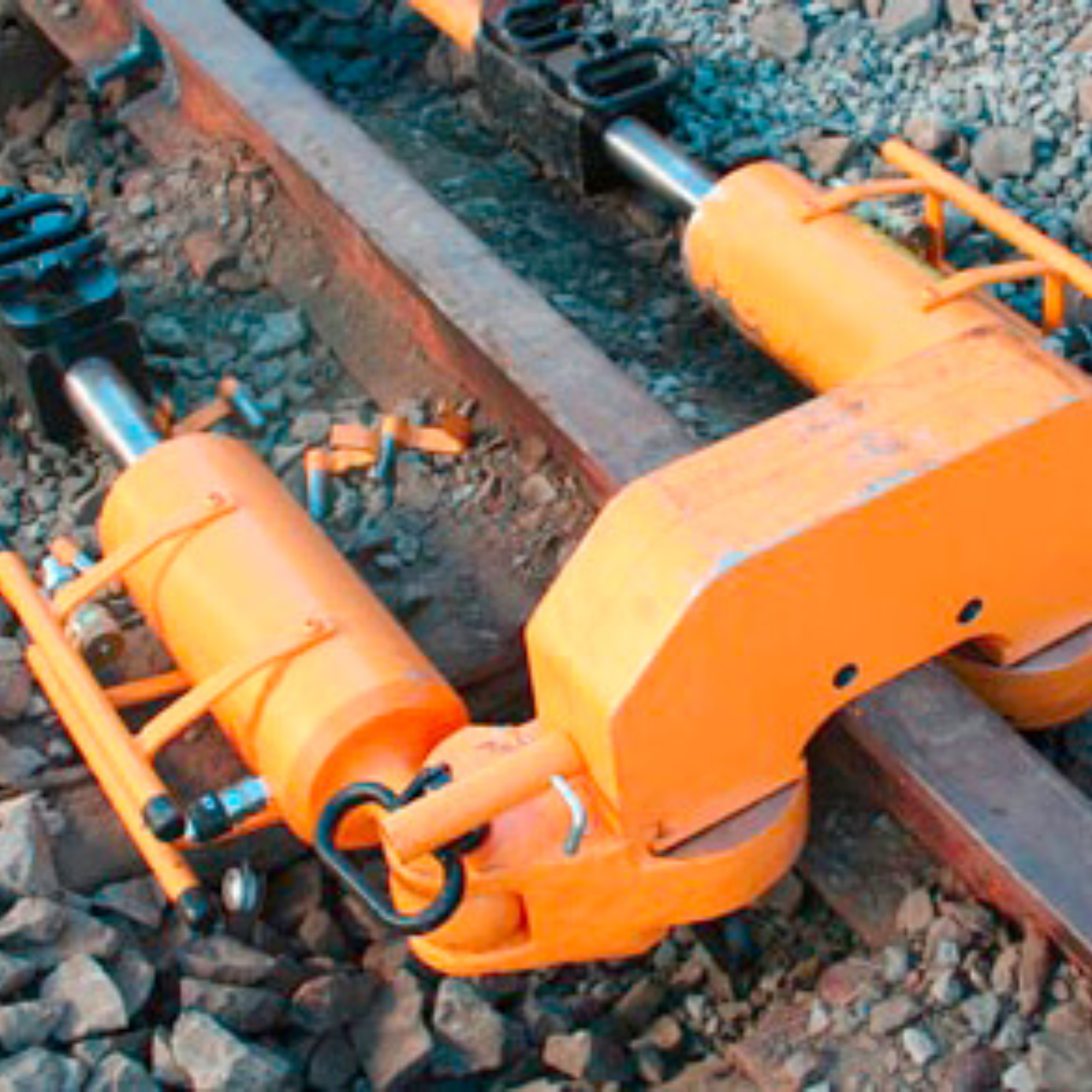

The PDM3054-Rail Diesel Driven Railway Power Unit is ideal for demanding tasks on the railway, providing a minimum flow of 2.5 Lpm at 700 bar pressure. It’s tailored for operating rail tensors and weld shears, essential equipment in the railway sector.
More Information

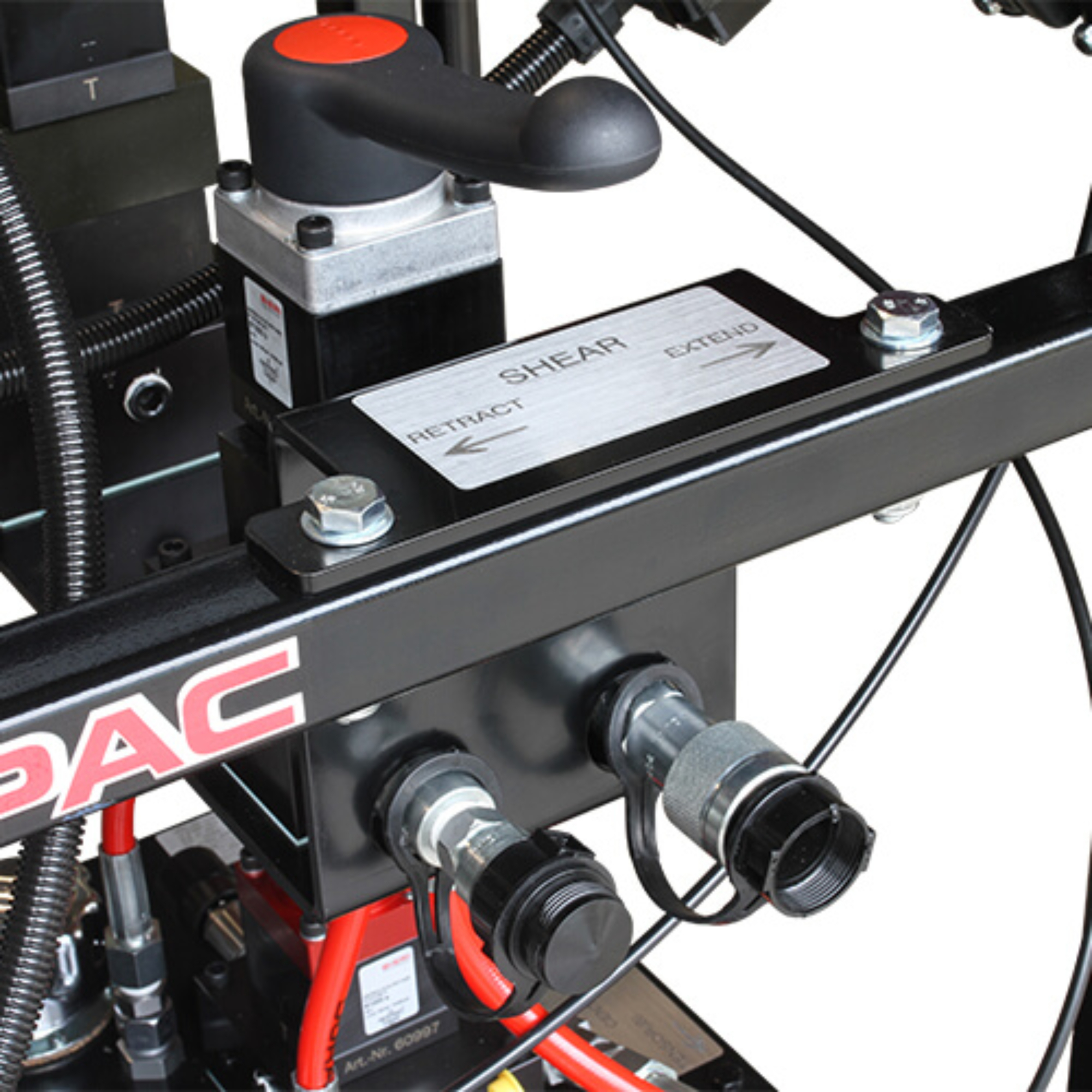

Selector Valve:
A selector valve enables the selection of the tool to operate.
Individual Directional Control:
Each tool has its own directional control valve.
Single or Double Acting:
Tools can operate as single or double acting.
Max. Operating Pressure Set Per Tool:
Different tools may have varying maximum operating pressures.
Dashboard:
The dashboard includes an engine management panel, speed control, and pressure gauge.
12 V Battery:
The unit includes a 12-volt battery.
|
Model Number
|
kW
|
rpm
|
Flow Rate (Lpm) @ 700 bar
|
Maximum Pressure Rating (bar)*
|
Valve Types (3/8″-NPTF Ports)
|
Usable Oil Capacity (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|
| PDM3054-RAIL | 3.4 | 2,200 | 2.5 | 700 | Selector Shear** Tension** |
50 | 190 | 450 W x 750 L x 650 H |
