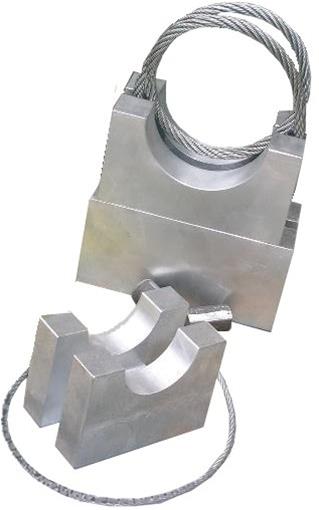

Crimping kit

Crimping methodology uses the wire rope to swage the sleeve onto the cable by grasping the conductors against an inner serrated spike. In this instance the pulling force is transferred onto the conductors rather than the outer sheath. The ø of the eye is usually smaller than ø of the cable. The die sizes range (to suit) from 25mm sleeves through to 150mm sleeves.An electric or manually operated hydraulic pump provides the required force to operate the crimping head.The Crimping kit includes hydraulic cylinder and pump, (manual or electric),2 meter hose and quick release fittings, crimper block, crimping dies, crimping ropes, retainer collar for ropes, hammer heads and expanding pins.
