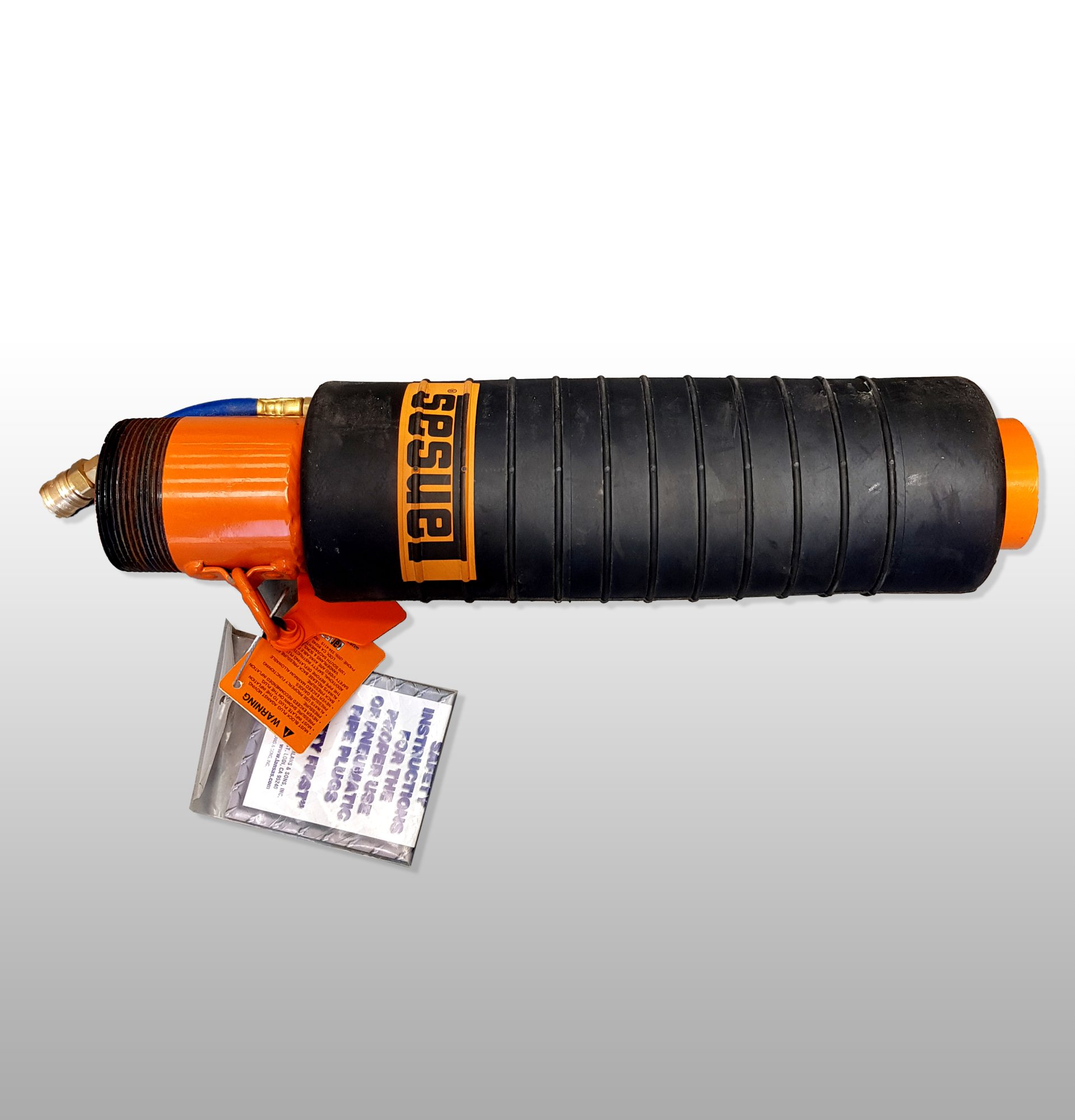

3” Bypass Plug 150mm–250mm (6″–10″) – High Flow

The 3” Bypass Plug 150mm–250mm (6″–10″) – High Flow is a premium inflatable pipe plug designed for high-volume bypass applications in sewer, stormwater, and drainage systems. With an oversized 3-inch (76mm) bypass built into a compact 150–250mm (6–10″) body, this plug enables exceptional flow-through capacity — ideal for situations where maintaining flow is critical during pipeline maintenance, cleaning, testing, or repair.

Engineered for tough conditions, the heavy-duty rubber construction offers reliable sealing and performance in a wide range of pipe materials and environments. Its large bypass makes it a top choice for contractors, utility crews, and councils working on high-demand sites or time-critical operations.

Available for hire across New Zealand. Contact us today to book this high-flow inflatable sewer plug or to discuss your pipeline bypass needs.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

More Information

  • Model: Lansas 093-610
  • Pipe Size Range: 150mm–260mm (5.3″–10.25″)
  • Bypass Size: 3” (76mm) – High Flow (Hard Bypass)
  • Bypass Thread: Coarse NPT
  • Inflation Pressure Required: 30 psi (2.1 bar)
  • Maximum Back/Test Pressure: 15 psi (1.0 bar)
  • Plug Length: 508mm
  • Deflated Diameter: 127mm
  • Weight: 6.8 kg
  • Type: Multi-size inflatable flow-thru plug
  • Controller Required: 2.5 bar pressure controller must be hired separately
  • Hoses & Fittings: Not included — available separately if required
  • Applications: Ideal for sewer bypassing, stormwater isolation, and temporary line blocking during maintenance, cleaning, or CCTV inspections
