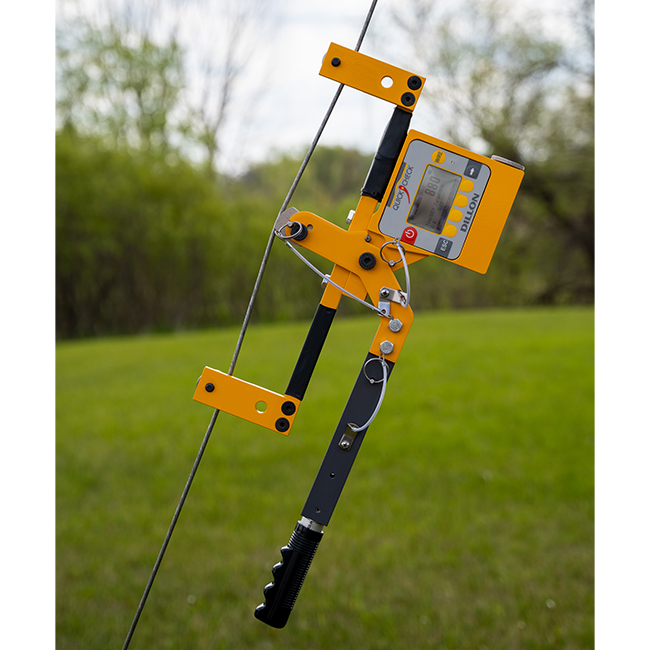

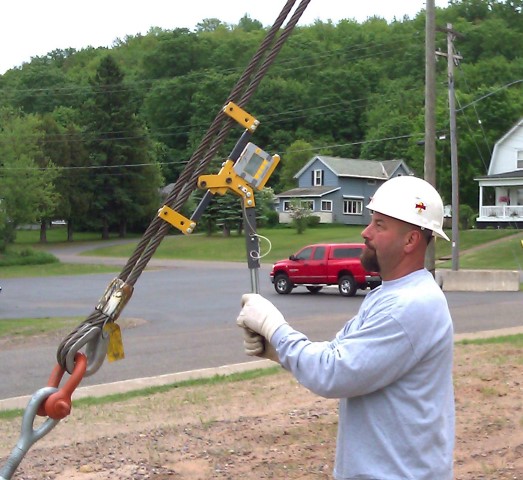

The Dillon Quick-Check tension meter can be placed on a cable, measure its tension, and removed in under five seconds. There are no complex lookup tables or conversion charts – saving time and money. The Quick-Check tension meter can be employed in many industries requiring proper and provable tensioning.
The operator can quickly select from 20 pre-calibrated wire sizes and types stored in Quick-Check’s memory. The Quick-Check tensioning mode graphically displays the current and target tension control limits for extremely quick setting of line tension.
- Wire sizes: 3/16 inch through 1 inch (4.75 mm through 25.4 mm)
- Accuracy: 3% of full scale (calibrated to specific wire size and type.)
- Display: Dot-graphic LCD display supports full text and 1 inch high digits.

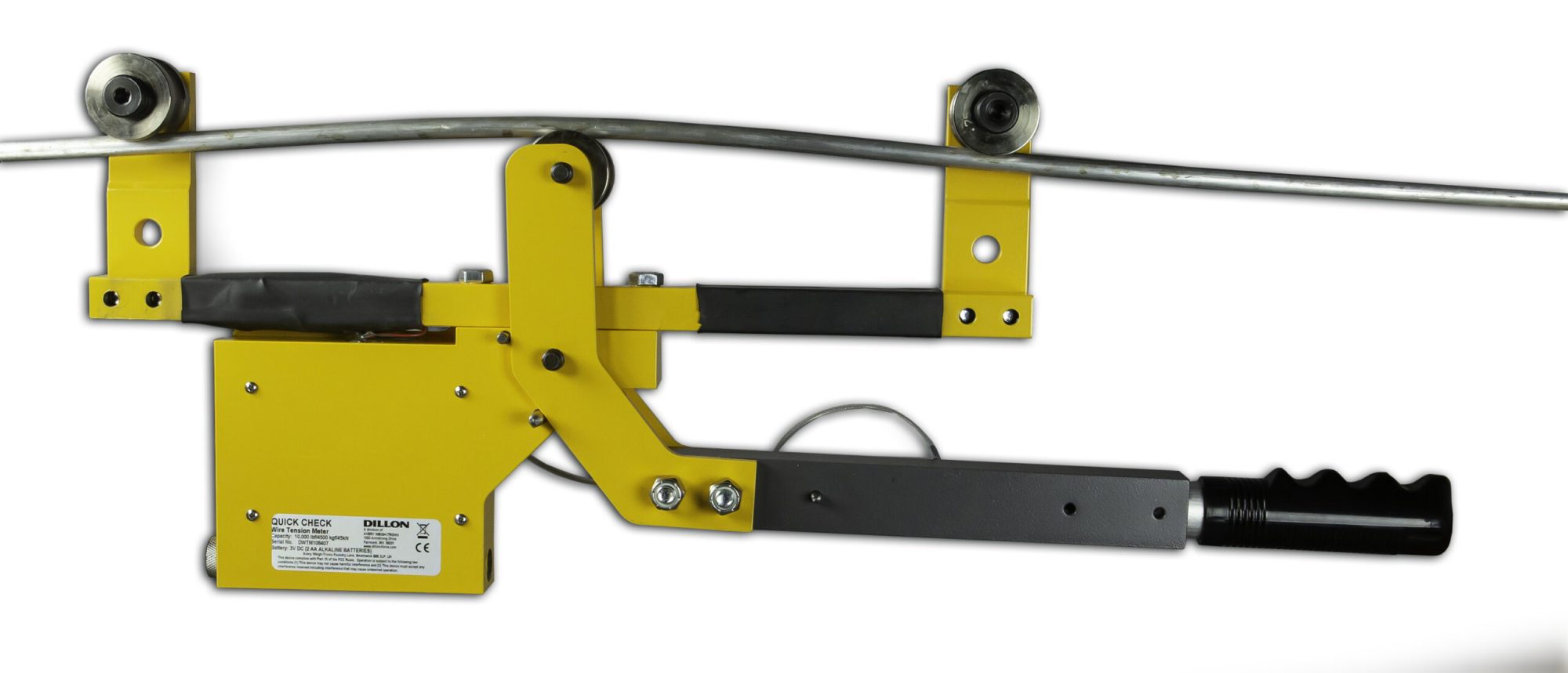

- Sheave range: Each set accommodates rated wire size and ½” smaller. Multiple sheave sets may be used.
- Suggested wire calibrations: Calibrate each wire diameter needed with the most appropriate sheaves. If two wire types are used of the same diameter (e.g. ½” 1×7 and ½” 6×19), calibrate each type independently if accuracy is critical.
- Environment protection: Suitable for continued outdoor use.
- Tension units of measure:pound-force, kilogram force, Newtons
- Resolution: Configurable low/med/high
