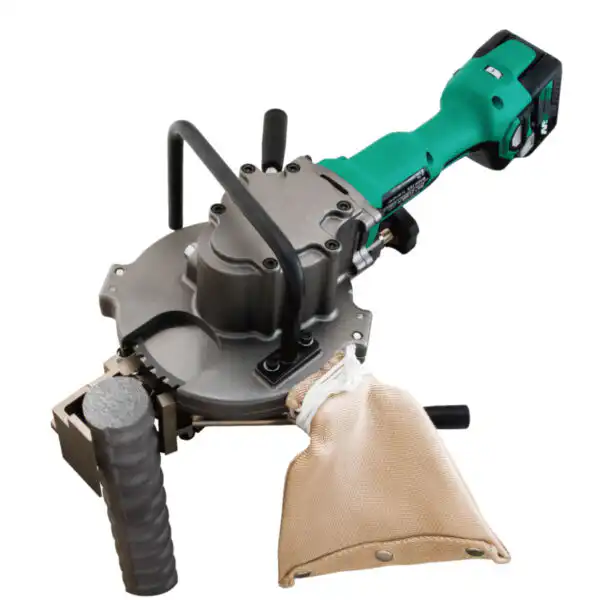

The Diamond DRC-5136BLH flush cut saw offers premium cordless performance for demanding cutting tasks in fabrication, maintenance and site environments. Available for hire from HTC, it uses a 36 V Li-ion battery drive to deliver cutting speeds comparable to 100 V units — yet without the constraints of mains or cable.
Designed for precision, it cleanly cuts reinforcing bars from D32 up to D51 with minimal sparks and burrs, and when fitted with the optional guide cover, can handle various steel profiles up to 51 mm or allow cuts close to edge (approx. 20 mm). The compact body (578 × 326 × 220 mm) and weight of approx. 10 kg (with battery) make it portable without sacrificing power.
Ideal for contractors, steel-workers and site teams wanting flexible, hire-ready cutting equipment — the DRC-5136BLH enables you to access cordless high-performance flush cutting when required, without purchasing outright.
Key Features:
-
- Cordless 36 V battery drive with performance equivalent to higher-voltage mains tools
- Flush-cut design for rebar/steel up to Ø 51 mm (D51) when clamped, and versatile profiles with optional guide cover
- Minimal sparks and clean cuts — suited for safer cutting in diverse environments
- Portable (~10 kg) and compact footprint for easier transport and handling
- Suitable for vertical, overhead or confined-space cutting applications
- Expertly maintained for hire use — rugged, reliable, and ready when you are
Technical Notes:
-
- By clamping, you can cut reinforcing bars from D32 to 51 mm at right angles.
- By using the optional guide cover, you can cut steel materials of various shapes up to 51 mm.
- By using the optional guide cover, it is possible to cut and efficiently remove reinforcing bars and anchor bolts approximately 20mm from the edge.
- When cutting fully threaded bolts, nuts can be inserted without deburring.
- It cuts cleanly and quickly with less sparks.
- The industry’s first 36V cordless type is environmentally friendly.
- 36V high power battery achieves cutting speed equivalent to 100V
- *Can cut SD490 *Can cut D51 screw reinforcing bar
- Cuttable diameter: 32 to 51 mm when clamped D51 screw reinforcing bar can be cut
- Optional: 10 to 51 mm when using cover with guide
- Power source/current: Lithium ion battery 36V 4.0Ah (7BSL36B18) B battery specifications
- Body dimensions: (L) 578 x (W) )326×(H)220mm
- Mass: 10.0kg (including battery)
Available for hire from HTC, offering flexible access to advanced cutting technology for your project.
