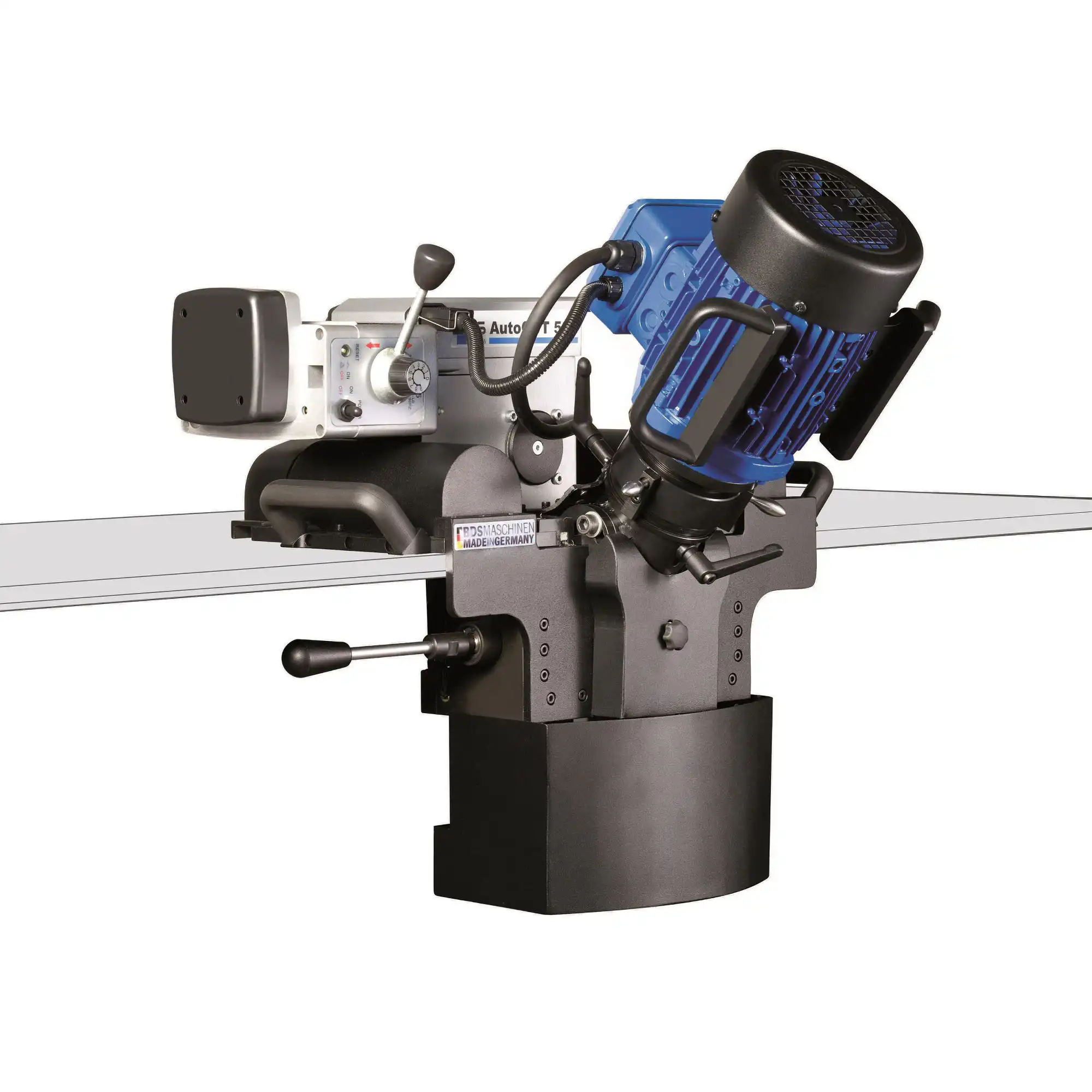

The AutoCUT 500 is engineered for fast, precise beveling of metal plate edges ahead of welding or fabrication. Available for hire through HTC, it features a rugged design that handles plate thicknesses up to ~40 mm and allows continuously adjustable bevel angles from 15° to 60°.
With an automatic feed system and integrated guide rails, the machine self-propels across the plate surface without the need for a carriage, simplifying setup and reducing operator effort. The machine’s magnetic base ensures firm attachment to ferrous surfaces, enabling safe operation even when processing vertical or overhead surfaces. An automatically-adjustable milling feed and robust carbide inserts provide consistent bevel finishes with minimal rework.
Ideal for fabrication shops, maintenance teams, and mobile contractors who want the flexibility to hire a high-quality beveling machine when needed—without a large capital outlay.
Key Features:
-
- Continuously adjustable bevel angle from 15° to 60°
- Maximum chamfer/land width up to ~30 mm on thick plate
- Automatic feed system for consistent milling and ease of use
- Guide rail system for secure, controlled machining
- Portable and compact (weight around 50 kg) and ready for transport
- Built for hire-use: rugged construction and simplified setup

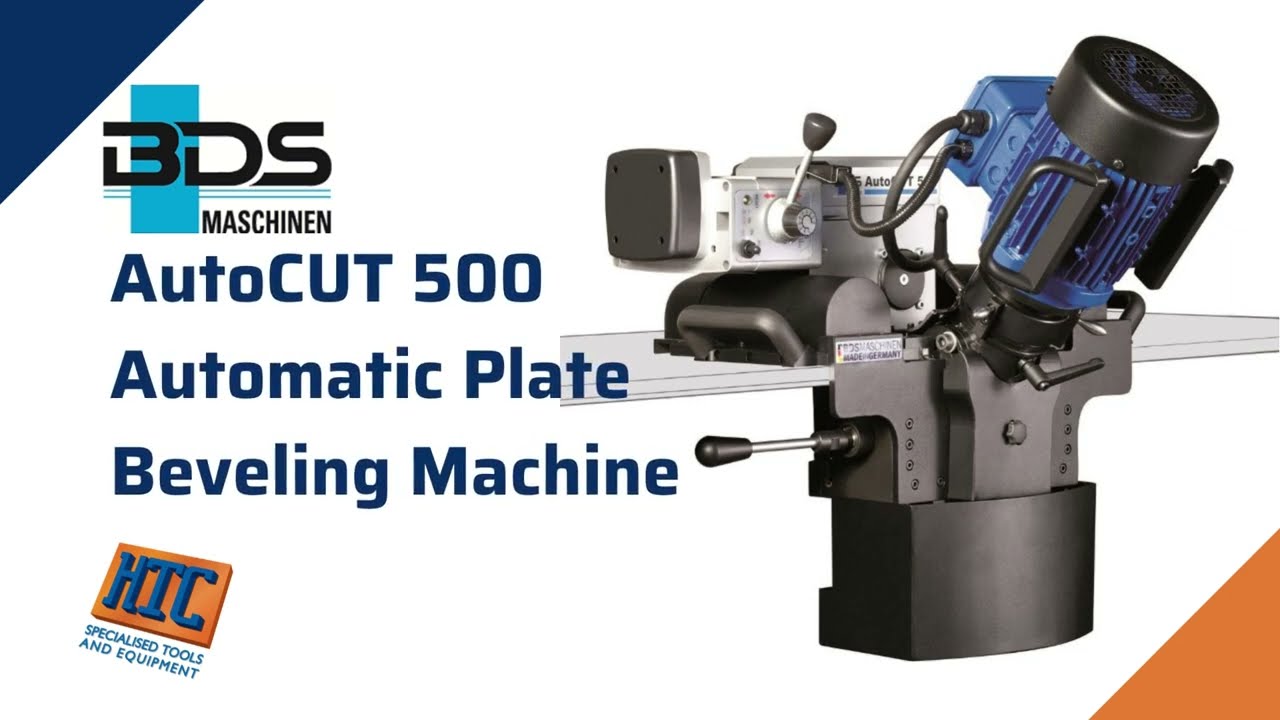

Technical Specifications (AutoCUT 500 Automatic Plate Beveling Machine)
-
- Motor Output 1100 Watt
- Voltage 380 Volt
- Speed 2750 min -1
- Feed Automatic and smoothly adjustable
- Chamfer Width max. 30 mm
- Angle Adjustment 15° – 60° continuous (or) Seamless
- Milling Cutter ZFR 500
- Carbide Reversible Disc (Insert) SHM 400
- Weight 50 kg
Technical Notes:
Requires a triple-phase connection and a single phase connection.
Available for hire from HTC, giving you access to professional-grade beveling capability when your project demands it.
